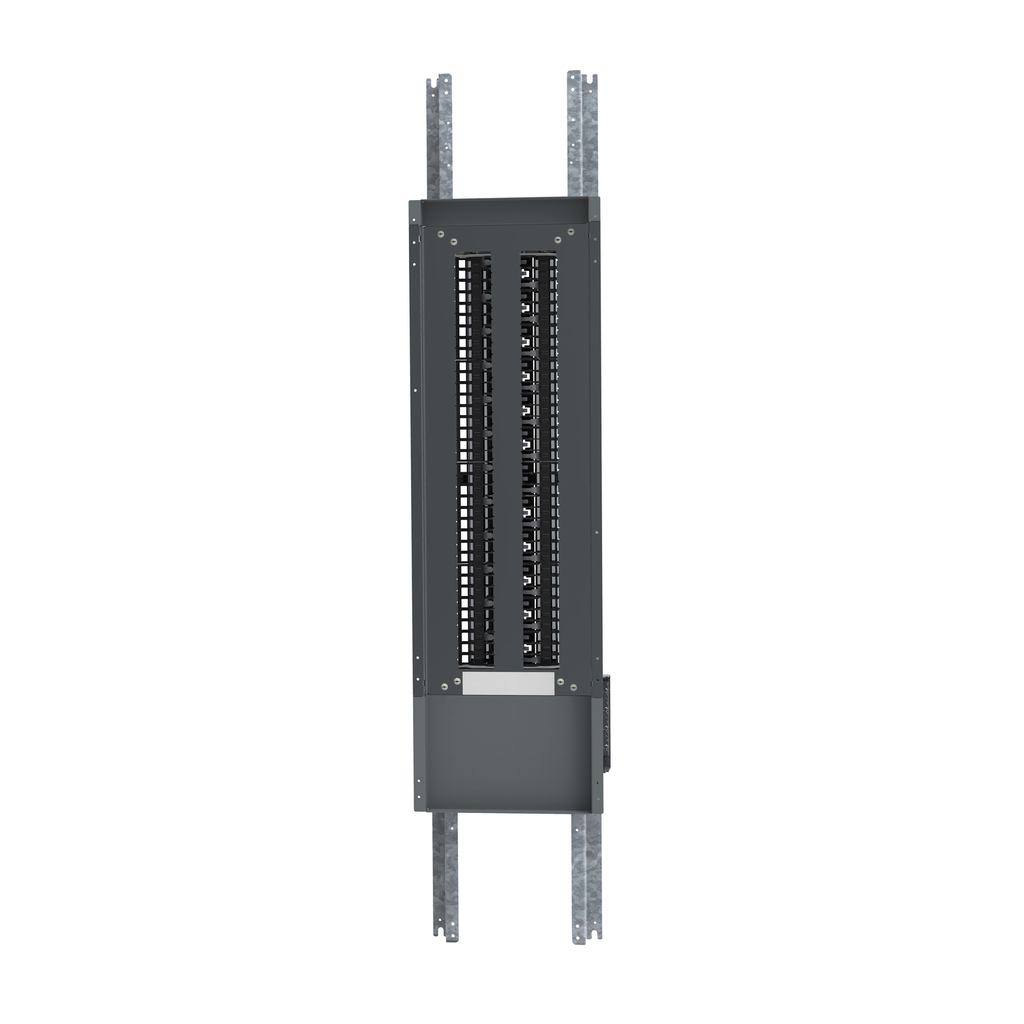

Panelboard interior, NQ, main lugs, 400A, Al bus, 72 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

PNLBD INT NQ 400A MLO 72 CKT 3

SQDNQ472L4 NQ472L4 785901502531
3741.22 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Panelboard interior, NQ, main lugs, 400A, Al bus, 72 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC-2
  • Circuit Breaker Type: QHB, QOB, QOB-VH
  • Height: 57 in
  • Line Rated Current: 400 A
  • Material: Aluminum
  • Net Weight: 13.608 kg
  • Number of Phases: 3
  • Standard: CSA, UL
  • Warranty Length: 18 mth
  • Width: 10.44 in
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for non-linear loads. NQ Panelboards are convertible from main lug to main breaker. This NQ Panelboard interior has a main lug and is rated at 400 A and 3 phases. With 4 wire system with 72 circuits and aluminum busbar, these interiors provide protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 57 inches tall and 10.44 inches wide. Lug connections will accept 1/0 AWG to 750 kcmil aluminum wire. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
QTY
  • Product Description
  • Specifications
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for non-linear loads. NQ Panelboards are convertible from main lug to main breaker. This NQ Panelboard interior has a main lug and is rated at 400 A and 3 phases. With 4 wire system with 72 circuits and aluminum busbar, these interiors provide protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 57 inches tall and 10.44 inches wide. Lug connections will accept 1/0 AWG to 750 kcmil aluminum wire. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
  • Environment
    • Standards : CSA || UL
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1404019EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant
  • Complementary
    • Height : 57 in
    • Connections - Terminals : lug line AWG 1/0...750 kcmil aluminium || lug neutral AWG 1/0...750 kcmil aluminium
    • Tightening Torque : 31.07-33.90 N.m 53.48-380 mm² (AWG 1/0...750 kcmil) || 31.07-33.90 N.m 53.48-177.3 mm² (AWG 1/0...350 kcmil) || 62.14-62.14 N.m 53.48-380 mm² (AWG 1/0...750 kcmil) || 62.14-62.14 N.m 53.48-152 mm² (AWG 1/0...300 kcmil) || 42.37-42.37 N.m 53.48-380 mm² (AWG 1/0...750 kcmil) || 42.37-42.37 N.m 53.48-152 mm² (AWG 1/0...300 kcmil)
    • [Iu] Rated Interrupted Current : 10 kA || 22 kA || 65 kA
    • Number Of Spaces : 72
    • Enclosure Nominal Height : 62 in
    • Phase : 3 phase
    • Net Weight : 13.608 kg
    • Enclosure Nominal Depth : 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
    • Line Rated Current : 400 A
    • Width : 10.44 in
    • Wiring Configuration : 4-wire
    • Enclosure Nominal Width : 20 in
    • [Ue] Rated Operational Voltage : 240 V AC || 48 V DC
  • Specifications
    • Circuit Breaker Type : QOB || QOB-VH || QHB
    • Product Or Component Type : interiors
    • Material : aluminium
    • Load Center Type : main lugs
