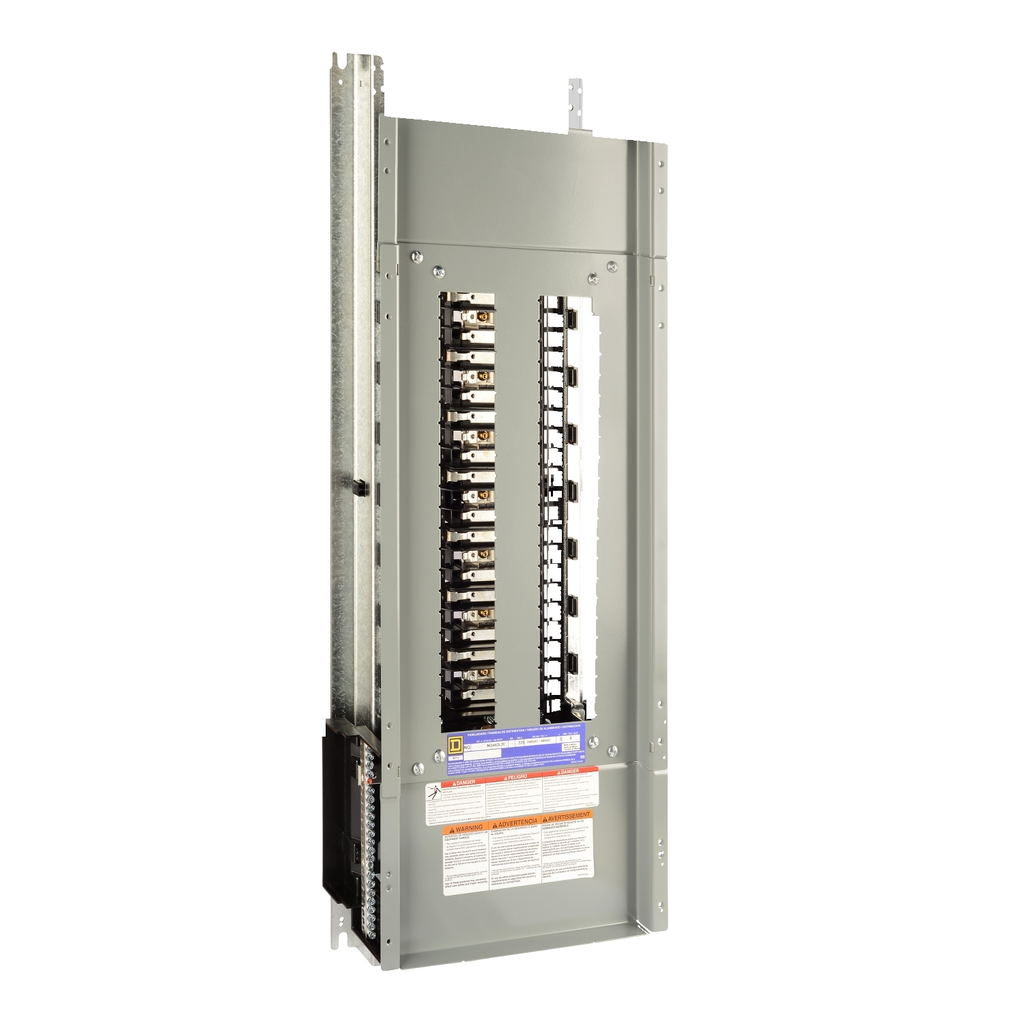

Panelboard interior, NQ, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240 VAC, 48 VDC

Panelboard interior, NQ, main lugs, 225A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 240 VAC, 48 VDC

SQDNQ442L2C NQ442L2C 785901507871
475.76 / EACH
  • Amperage: 225 A
  • Country of Origin: Mexico
  • Height: 33 in, 838.20 mm
  • Standard: CSA, UL
  • Voltage: 240 V, 48 V
  • Warranty Length: 18 mth
  • Weight: 19.36 lb, 8.78 kg
  • Width: 10.44 in, 265.18 mm
This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.
  • Product Description
  • Specifications
This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • REACh Free Of SVHC : Yes
    • EU RoHs Directive : Compliant
  • Environment
    • Standards : CSA || UL
  • Main
    • Branch Circuit Breaker Type : QOB || QOB-VH || QHB
    • Product Or Component Type : Interiors
    • Busbar Material : Copper
    • Panelboard Type : Main lugs
  • Complementary
    • Connections - Terminals : Lug line AWG 6...350 kcmil aluminium || Lug neutral AWG 6...350 kcmil aluminium
    • Iu Rated Interrupted Current : 10 kA || 22 kA || 65 kA
    • Enclosure Nominal Depth : 5.75 in (146.05 mm) NEMA 1 || 6.5 in (165.10 mm) NEMA 3R/5/12
    • Height : 33.00 in (838.20 mm)
    • In Rated Current : 225 A
    • Enclosure Nominal Width : 20 in (508.00 mm)
    • Number Of Phases : 3 phase
    • Product Weight : 19.36 lb(US) (8.78 kg)
    • Number Of Spaces : 42
    • Wiring Configuration : 4-wire
    • Tightening Torque : 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) AWG 6...350 kcmil) || 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) AWG 6...250 kcmil) || 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) AWG 4...300 kcmil)
    • Enclosure Nominal Height : 38 in (965.20 mm)
    • Voltage Rating : 240 V AC || 48 V DC
    • Width : 10.44 in (265.18 mm)
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • GTIN : 00785901507871
    • Returnability : Yes
    • Country Of Origin : MX
    • Discount Schedule : PE1A
    • Category : 09151 - NQ RTA PANELBOARDS
    • Nbr. Of Units In Pkg. : 1
