SQUARE D

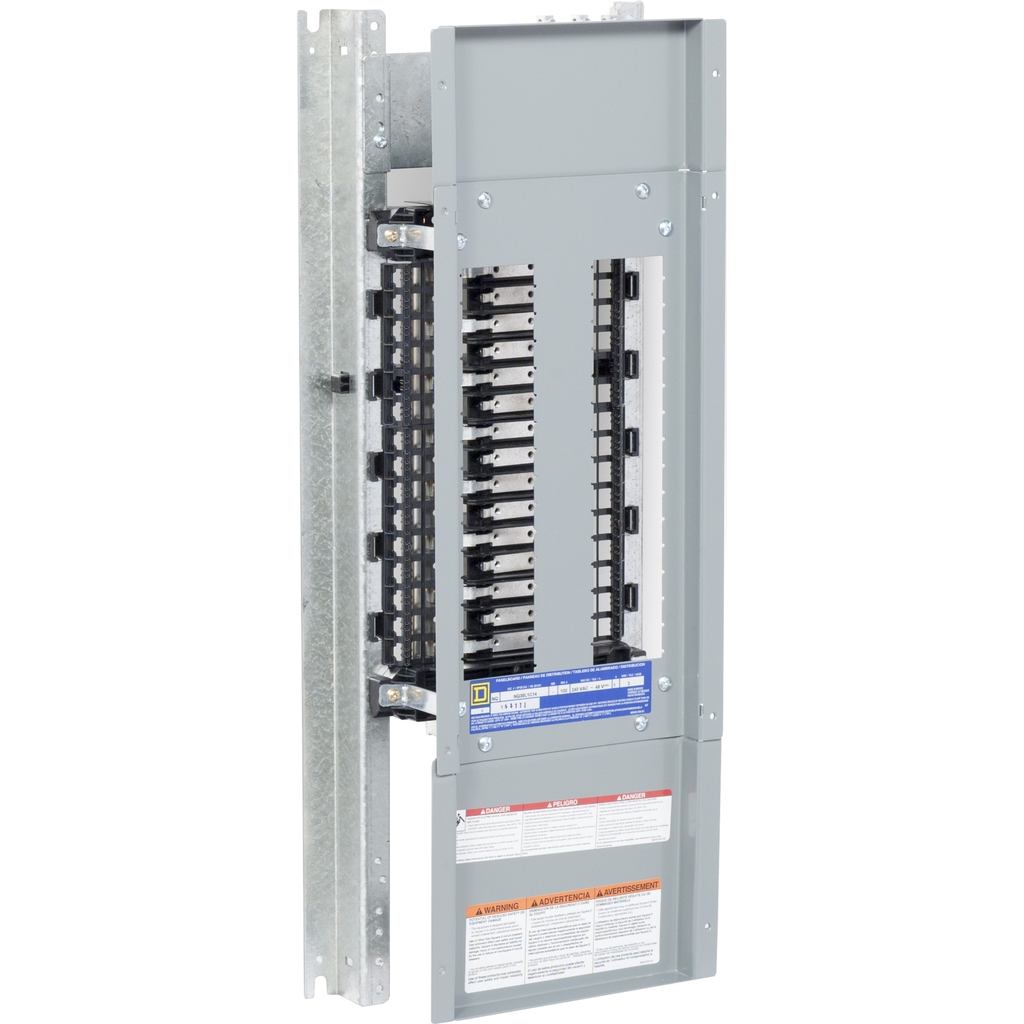

Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240 VAC, 48 VDC, 14 in

Panelboard interior, NQ, main lugs, 225A, Cu bus, 30 pole spaces, 1 phase, 3 wire, 240 VAC, 48 VDC, 14 in

SQDNQ30L2C14 NQ30L2C14 785901079477
1367.28 / EACH
  • Amperage: 225 A
  • Country of Origin: Mexico
  • Height: 1016.00 mm, 40 in
  • Number of Phases: 1
  • Standard: CSA C22.2, UL 67
  • Voltage: 240 V, 48 V
  • Warranty Length: 18 mth
  • Width: 219.20 mm, 8.63 in
NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboard interiors are field convertible to top or bottom feed. NQ Panelboards are convertible from main lug to main breaker. NQ Panelboards provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. This interior provides protection for your commercial and industrial applications. The main lugs are rated at 225A, 240 VAC single phase or 48 VDC. Interior has an interrupt current rating of up to 65 kA. This interior is for a 3 wire system with 30 spaces and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. Lug connections will accept 6 AWG to 350 kcmil copper or aluminum wire. Interior is 40 inches tall and 8.63 inches wide. This NQ panelboard interior is UL listed and CSA certified.
  • Product Description
  • Specifications
NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboard interiors are field convertible to top or bottom feed. NQ Panelboards are convertible from main lug to main breaker. NQ Panelboards provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. This interior provides protection for your commercial and industrial applications. The main lugs are rated at 225A, 240 VAC single phase or 48 VDC. Interior has an interrupt current rating of up to 65 kA. This interior is for a 3 wire system with 30 spaces and has a copper bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. Lug connections will accept 6 AWG to 350 kcmil copper or aluminum wire. Interior is 40 inches tall and 8.63 inches wide. This NQ panelboard interior is UL listed and CSA certified.
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Green Premium Status : Green Premium product
    • REACh Free Of SVHC : Yes
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
  • Main
    • Branch Circuit Breaker Type : QOB || QOB-VH || QHB
    • Panelboard Type : Main lugs
    • Busbar Material : Copper
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • Standards : UL 67 || CSA C22.2
  • Complementary
    • Tightening Torque : 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) AWG 6...350 kcmil) || 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) AWG 6...250 kcmil) || 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) AWG 4...300 kcmil)
    • Height : 40 in (1016.00 mm)
    • Voltage Rating : 240 V AC || 48 V DC
    • Width : 8.63 in (219.20 mm)
    • Enclosure Nominal Depth : 5.75 in (146.05 mm) NEMA 1
    • In Rated Current : 225 A
    • Enclosure Nominal Width : 14 in (355.60 mm)
    • Number Of Spaces : 30
    • Iu Rated Interrupted Current : 10 kA || 22 kA || 65 kA
    • Enclosure Nominal Height : 32 in (812.80 mm)
    • Number Of Phases : 1 phase
    • Wiring Configuration : 3-wire
  • Ordering And Shipping Details
    • Returnability : No
    • Category : 09151-NQ RTA PANELBOARDS
    • GTIN : 00785901079477
    • Discount Schedule : PE1A
    • Country Of Origin : MX
