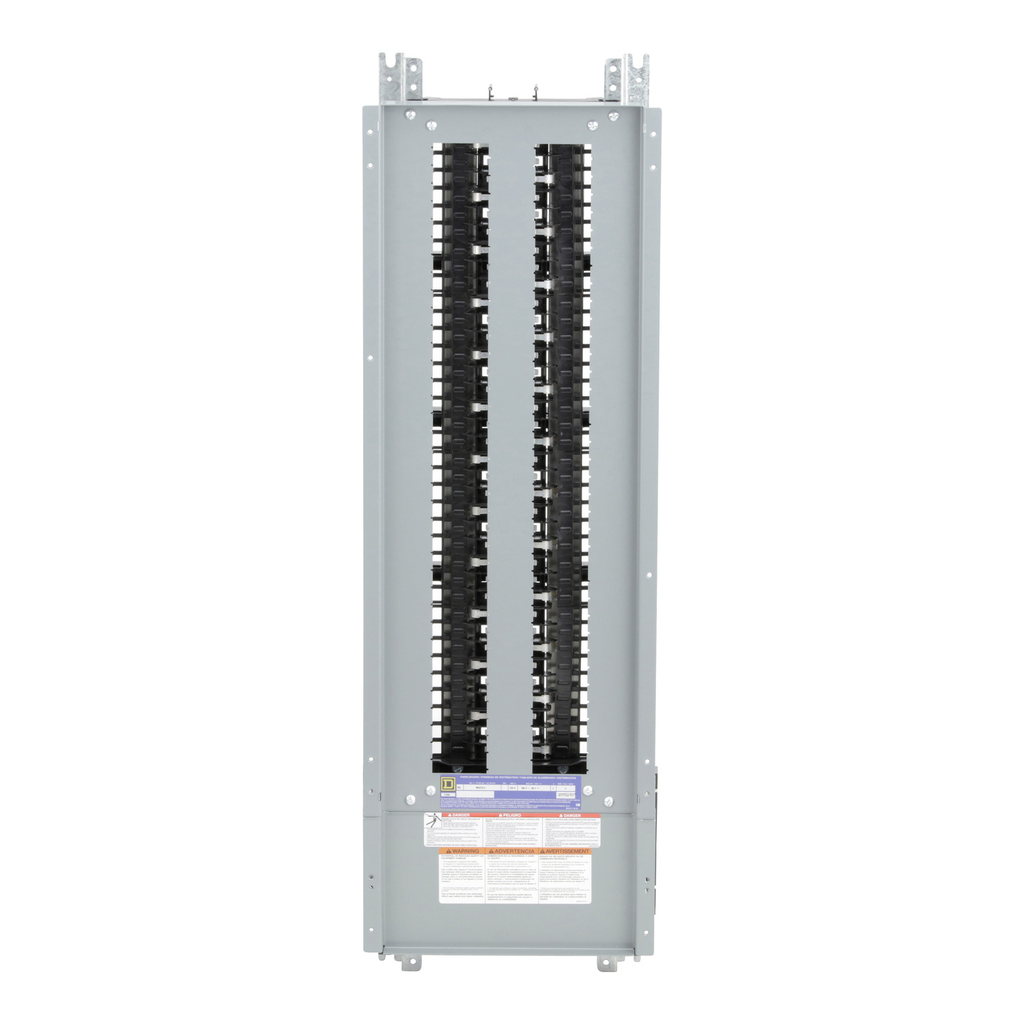

Panelboard interior, NQ, main lugs, 225A, Al bus, 72 pole spaces, 3 phase, 4 wire, 240 VAC, 48 VDC

Panelboard interior, NQ, main lugs, 225A, Al bus, 72 pole spaces, 3 phase, 4 wire, 240 VAC, 48 VDC

SQDNQ472L2 NQ472L2 785901502487
2678.47 / EACH
  • Amperage: 225 A
  • Country of Origin: Mexico
  • Height: 39 in, 990.60 mm
  • Standard: CSA, UL
  • Voltage: 240 V, 48 V
  • Warranty Length: 18 mth
  • Width: 10.44 in, 265.18 mm
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for non-linear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 225 A three phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 72 circuits and has an aluminum bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Lug connections will accept 6 AWG to 350 kcmil aluminum wire. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
  • Product Description
  • Specifications
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for non-linear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 225 A three phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 72 circuits and has an aluminum bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Lug connections will accept 6 AWG to 350 kcmil aluminum wire. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
  • Ordering And Shipping Details
    • GTIN : 00785901502487
    • Country Of Origin : MX
    • Nbr. Of Units In Pkg. : 1
    • Category : 09151 - NQ RTA PANELBOARDS
    • Discount Schedule : PE1A
    • Returnability : Yes
  • Offer Sustainability
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
    • Green Premium Status : Green Premium product
    • EU RoHs Directive : Compliant
  • Complementary
    • Iu Rated Interrupted Current : 10 kA || 22 kA || 65 kA
    • Connections - Terminals : Lug line AWG 6...350 kcmil aluminium || Lug neutral AWG 6...350 kcmil aluminium
    • Voltage Rating : 240 V AC || 48 V DC
    • Enclosure Nominal Height : 44 in (1117.60 mm)
    • Number Of Phases : 3 phase
    • Enclosure Nominal Width : 20 in (508.00 mm)
    • Tightening Torque : 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) AWG 6...350 kcmil) || 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) AWG 6...250 kcmil) || 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) AWG 4...300 kcmil)
    • Enclosure Nominal Width : 5.75 in (146.05 mm) NEMA 1 || 6.5 in (165.10 mm) NEMA 3R/5/12
    • In Rated Current : 225 A
    • Width : 10.44 in (265.18 mm)
    • Height : 39 in (990.60 mm)
    • Number Of Spaces : 72
    • Wiring Configuration : 4-wire
  • Main
    • Busbar Material : Aluminium
    • Product Or Component Type : Interiors
    • Panelboard Type : Main lugs
    • Branch Circuit Breaker Type : QOB || QOB-VH || QHB
  • Environment
    • Standards : UL || CSA
  • Contractual Warranty
    • Warranty : 18 months
