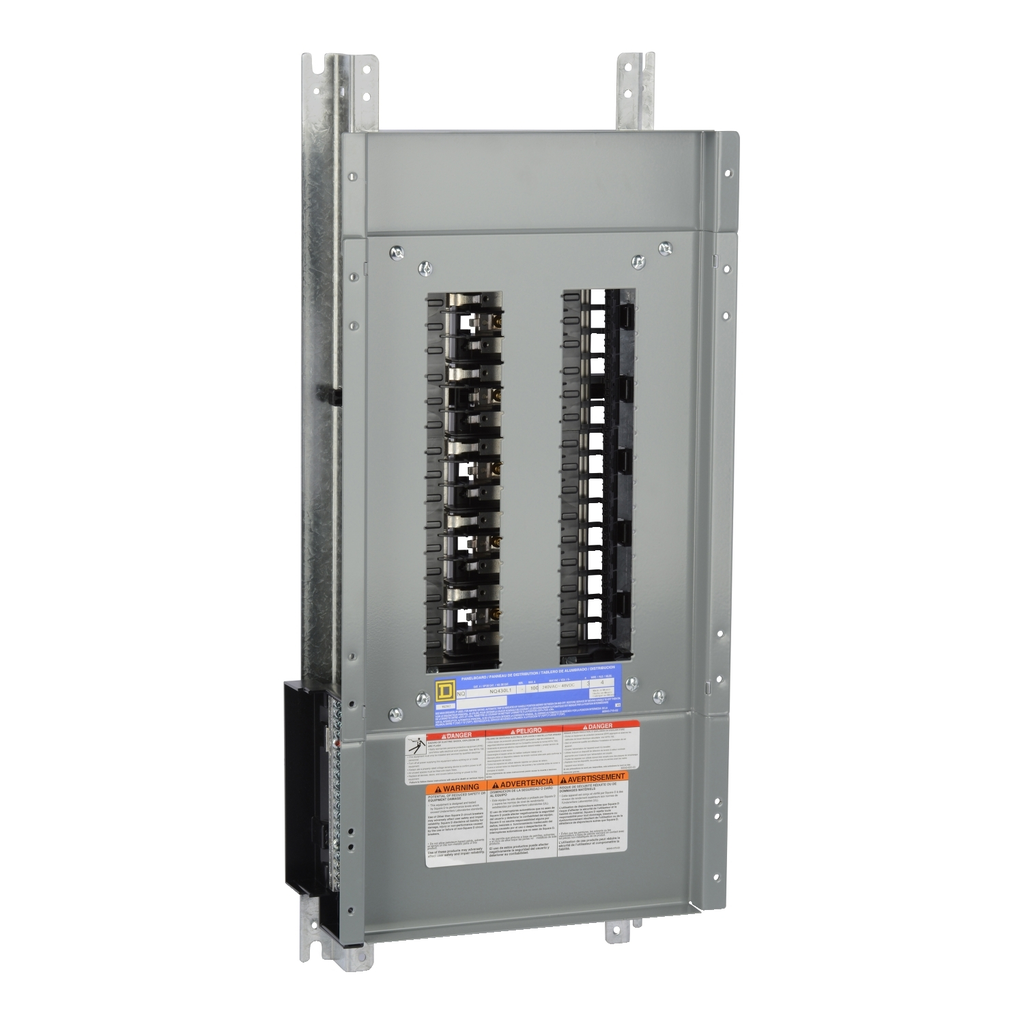

Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC

30CIRCUIT 100A 3PHASE PANEL

SQDNQ430L1C NQ430L1C 785901507475
1291.90 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Panelboard interior, NQ, main lugs, 100A, Cu bus, 30 pole spaces, 3 phase, 4 wire, 240VAC, 48VDC-2
  • Circuit Breaker Type: QHB, QOB, QOB-VH
  • Height: 27 in
  • Line Rated Current: 100 A
  • Material: Copper
  • Number of Phases: 3
  • Standard: CSA, UL
  • Warranty Length: 18 mth
  • Width: 10.44 in
This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.
QTY
  • Product Description
  • Specifications
This Schneider Electric OsiSense electronic pressure switch has a 4 digit 7-segment display, hysteresis switching mode. It has a pressure rating of -1 bar. It has a supply voltage of 24Vdc and 2 x solid state outputs (pnp). 0High accuracy for more stable control on your critical processes. Simple reading of current value and threshold with clear LED display. 10 million cycles mechanical durability for minimum required maintenance on your pressurized fluid circuits.
  • Environment
    • Standards : UL || CSA
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1404010EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Circularity Profile : N/A
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Height : 27 in
    • Connections - Terminals : lug line AWG 6...AWG 2/0 aluminium || lug neutral AWG 6...AWG 2/0 aluminium
    • Tightening Torque : 4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
    • [Iu] Rated Interrupted Current : 10 kA || 22 kA || 65 kA
    • Number Of Spaces : 30
    • Enclosure Nominal Height : 32 in
    • Phase : 3 phase
    • Enclosure Nominal Depth : 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
    • Line Rated Current : 100 A
    • Width : 10.44 in
    • Wiring Configuration : 4-wire
    • Enclosure Nominal Width : 20 in
    • [Ue] Rated Operational Voltage : 240 V AC || 48 V DC
  • Specifications
    • Circuit Breaker Type : QOB || QOB-VH || QHB
    • Product Or Component Type : interiors
    • Material : copper
    • Load Center Type : main lugs
