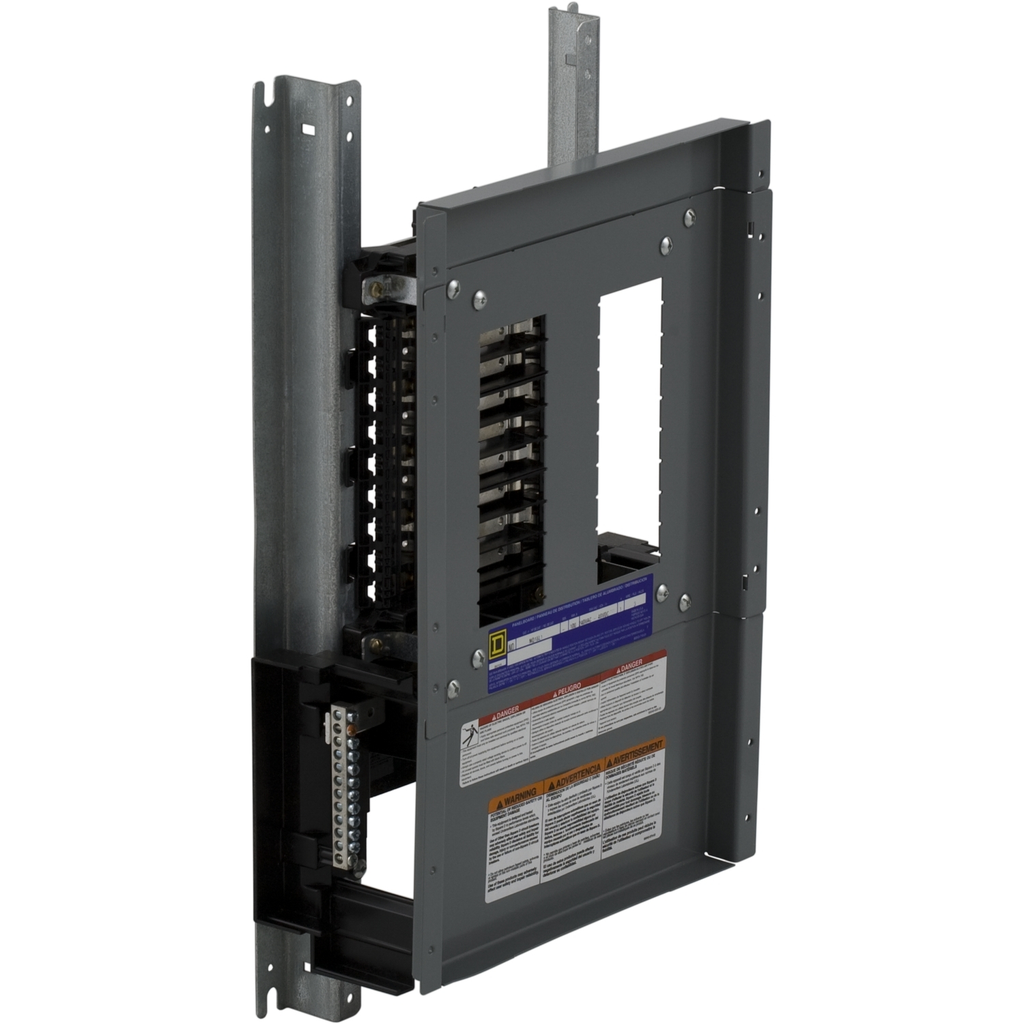

Panelboard interior, NQ, main lugs, 100A, Al bus, 18 pole spaces, 1 phase, 3 wire, 240 VAC, 48 VDC

Panelboard interior, NQ, main lugs, 100A, Al bus, 18 pole spaces, 1 phase, 3 wire, 240 VAC, 48 VDC

SQDNQ18L1 NQ18L1 785901498674
830.74 / EACH
  • Amperage: 100 A
  • Country of Origin: Mexico
  • Height: 21 in, 533.40 mm
  • Number of Phases: 1
  • Standard: CSA, UL
  • Voltage: 240 V, 48 V
  • Warranty Length: 18 mth
  • Width: 10.44 in, 265.18 mm
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for non-linear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 100 A single phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 3 wire system with 18 circuits and has an aluminum bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 21 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
  • Product Description
  • Specifications
NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards provide 200% rated neutrals for non-linear loads. NQ Panelboards are convertible from main lug to main breaker. Interior has a maximum voltage rating of 240 VAC and 48 VDC. This NQ Panelboard interior has a main lug and is rated at 100 A single phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 3 wire system with 18 circuits and has an aluminum bus bar. Interior is for QOB, QOBVH and QHB branch circuit breakers. This interior provides protection for your commercial and industrial applications. NQ Panelboard interiors are field convertible to top or bottom feed. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. Interior is 21 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NQ Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Compliant
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • REACh Free Of SVHC : Yes
    • Mercury Free : Yes
    • Green Premium Status : Green Premium product
  • Ordering And Shipping Details
    • Returnability : Yes
    • Category : 09151 - NQ RTA PANELBOARDS
    • Nbr. Of Units In Pkg. : 1
    • Country Of Origin : MX
    • Discount Schedule : PE1A
    • GTIN : 00785901498674
  • Complementary
    • Height : 21 in (533.40 mm)
    • Number Of Phases : 1 phase
    • In Rated Current : 100 A
    • Enclosure Nominal Width : 20 in (508.00 mm)
    • Enclosure Nominal Height : 26 in (660.40 mm)
    • Number Of Spaces : 18
    • Wiring Configuration : 3-wire
    • Enclosure Nominal Width : 5.75 in (146.05 mm) NEMA 1 || 6.5 in (165.10 mm) NEMA 3R/5/12
    • Voltage Rating : 240 V AC || 48 V DC
    • Iu Rated Interrupted Current : 10 kA || 22 kA || 65 kA
    • Width : 10.44 in (265.18 mm)
    • Tightening Torque : 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) AWG 6...350 kcmil) || 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) AWG 6...250 kcmil) || 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) AWG 4...300 kcmil)
  • Contractual Warranty
    • Warranty : 18 months
  • Environment
    • Standards : CSA || UL
  • Main
    • Branch Circuit Breaker Type : QOB || QOB-VH || QHB
    • Panelboard Type : Main lugs
    • Product Or Component Type : Interiors
    • Busbar Material : Aluminium
