SQUARE D

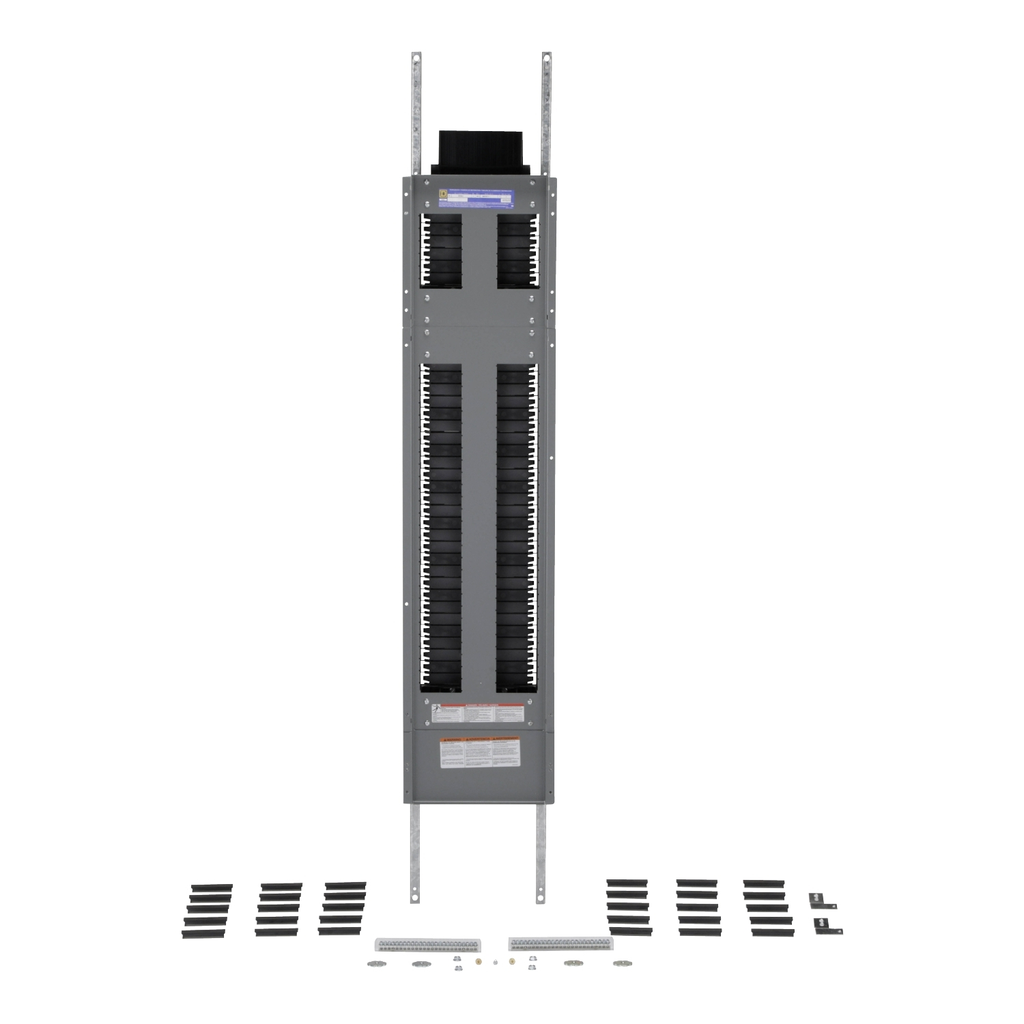

Panelboard interior, NF, main lugs, 400A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347 VAC max

Panelboard interior, NF, main lugs, 400A, Cu bus, 66 pole spaces, 3 phase, 4 wire, 600Y/347 VAC max

SQDNF466L4C NF466L4C 785901344995
4707.00 / EACH
  • Amperage: 400 A
  • Country of Origin: USA
  • Height: 1219.20 mm, 48 in
  • Standard: CSA C22.2, UL 67
  • Voltage: 347 V
  • Warranty Length: 18 mth
  • Weight: 20.41 kg, 45.00 lb
  • Width: 10.44 in, 265.18 mm
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 400A 600Y/347 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 66 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 1/0 AWG to 750 kcmil aluminum wire. The interior is 48 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.
  • Product Description
  • Specifications
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 400A 600Y/347 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 66 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 1/0 AWG to 750 kcmil aluminum wire. The interior is 48 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • REACh Free Of SVHC : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Compliant
    • Mercury Free : Yes
  • Main
    • Busbar Material : Copper
    • Branch Circuit Breaker Type : EDB/EDG/EDJ
    • Panelboard Type : Main lugs
  • Ordering And Shipping Details
    • Discount Schedule : PE1A
    • Category : 08350-NF MLO INTERIOR RTA
    • Returnability : Yes
    • GTIN : 00785901344995
    • Country Of Origin : US
  • Complementary
    • Enclosure Nominal Height : 74 in (1879.60 mm) || 86 in (2184.40 mm)
    • Wiring Configuration : 4-wire
    • Tightening Torque : 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.59 in² (53.48…380 mm²) AWG 1/0...750 kcmil) || 274.99…300.04 lbf.in (31.07…33.90 N.m) 0.08…0.27 in² (53.48…177.3 mm²) AWG 1/0...350 kcmil) || 549.98 lbf.in (62.14 N.m) 0.08…0.59 in² (53.48…380 mm²) AWG 1/0...750 kcmil) || 549.98 lbf.in (62.14 N.m) 0.08…0.24 in² (53.48…152 mm²) AWG 1/0...300 kcmil) || 375.01 lbf.in (42.37 N.m) 0.08…0.59 in² (53.48…380 mm²) AWG 1/0...750 kcmil) || 375.01 lbf.in (42.37 N.m) 0.08…0.24 in² (53.48…152 mm²) AWG 1/0...300 kcmil)
    • Voltage Rating : 600Y/347 V AC
    • Enclosure Nominal Depth : 5.75 in (146.05 mm) NEMA 1 || 6.5 in (165.10 mm) NEMA 3R/5/12
    • Enclosure Nominal Width : 20 in (508.00 mm)
    • Number Of Phases : 3 phase
    • Iu Rated Interrupted Current : 65 kA
    • Width : 10.44 in (265.18 mm)
    • Product Weight : 45.00 lb(US) (20.41 kg)
    • In Rated Current : 400 A
    • Connections - Terminals : Lug line AWG 1/0...750 kcmil aluminium || Lug neutral AWG 1/0...750 kcmil aluminium
    • Height : 48 in (1219.20 mm)
    • Number Of Spaces : 66
  • Environment
    • Standards : CSA C22.2 || UL 67
