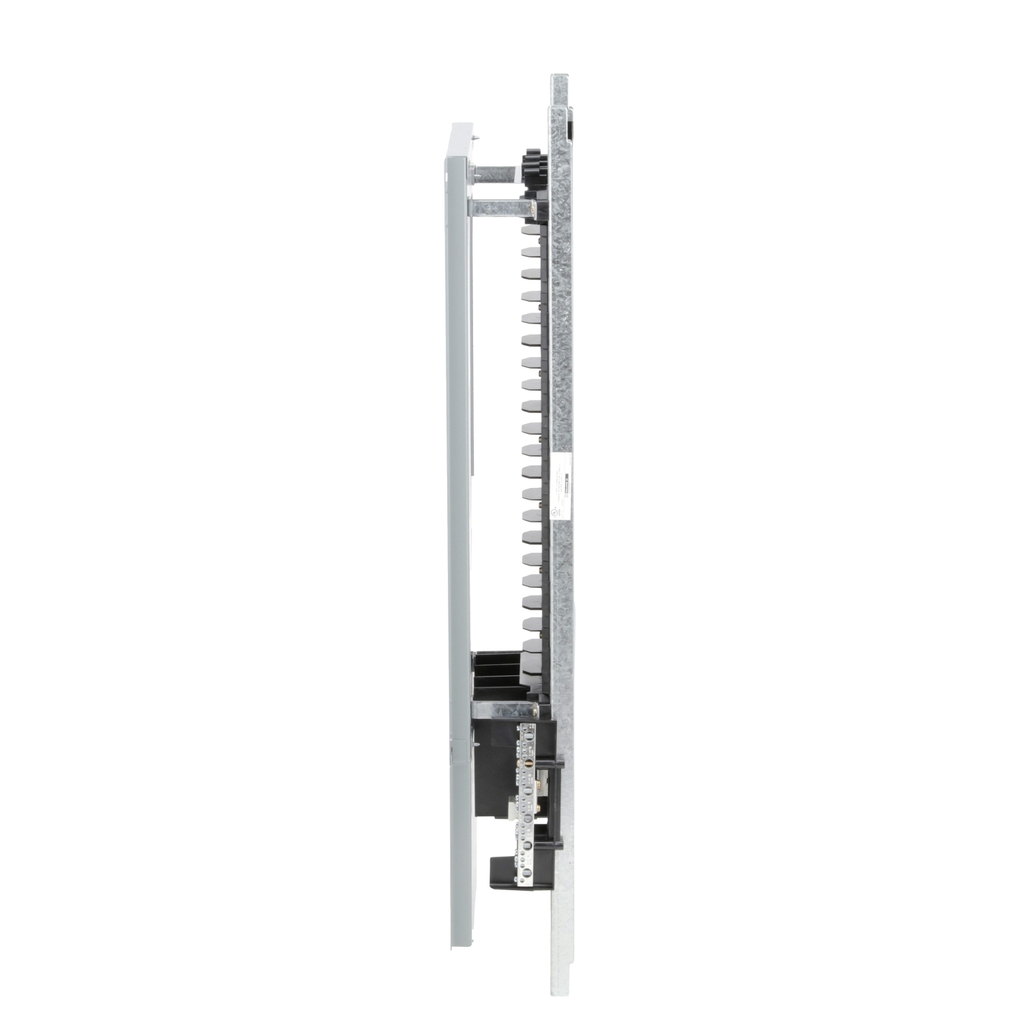

Panelboard interior, NF, main lugs, 250A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 600Y/347 VAC max

Panelboard interior, NF, main lugs, 250A, Cu bus, 42 pole spaces, 3 phase, 4 wire, 600Y/347 VAC max

SQDNF442L2C NF442L2C 785901871576
2469.92 / EACH
  • Amperage: 250 A
  • Country of Origin: Mexico
  • Height: 39 in, 990.60 mm
  • Standard: CSA C22.2, UL 67
  • Voltage: 347 V
  • Warranty Length: 18 mth
  • Weight: 18.14 kg, 39.99 lb
  • Width: 10.44 in, 265.18 mm
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 250A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 42 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 6 AWG to 350 kcmil aluminum wire. The interior is 39 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
  • Product Description
  • Specifications
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 250A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 42 spaces and has a copper bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 6 AWG to 350 kcmil aluminum wire. The interior is 39 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified. NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices.
  • Environment
    • Standards : UL 67 || CSA C22.2
  • Complementary
    • Height : 39 in (990.60 mm)
    • In Rated Current : 250 A
    • Width : 10.44 in (265.18 mm)
    • Enclosure Nominal Width : 20 in (508.00 mm)
    • Enclosure Nominal Height : 44 in (1117.60 mm) || 56 in (1422.40 mm)
    • Enclosure Nominal Width : 5.75 in (146.05 mm) NEMA 1 || 6.5 in (165.10 mm) NEMA 3R/5/12
    • Tightening Torque : 40.01…50.01 lbf.in (4.52…5.65 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 100.01 lbf.in (11.3 N.m) 0.02…0.10 in² (13.30…67.43 mm²) AWG 6...AWG 2/0) || 274.99 lbf.in (31.07 N.m) 0.02…0.27 in² (13.30…177.3 mm²) AWG 6...350 kcmil) || 274.99 lbf.in (31.07 N.m) 0.02…0.20 in² (13.30…126.7 mm²) AWG 6...250 kcmil) || 274.99 lbf.in (31.07 N.m) 0.17…0.24 in² (107.2…152 mm²) AWG 4...300 kcmil)
    • Voltage Rating : 600Y/347 V AC
    • Product Weight : 39.99 lb(US) (18.14 kg)
    • Number Of Phases : 3 phase
    • Connections - Terminals : Lug line AWG 6...350 kcmil aluminium || Lug neutral AWG 6...350 kcmil aluminium
    • Wiring Configuration : 4-wire
    • Number Of Spaces : 42
    • Iu Rated Interrupted Current : 65 kA
  • Offer Sustainability
    • Mercury Free : Yes
    • Green Premium Status : Green Premium product
    • REACh Free Of SVHC : Yes
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Compliant
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Main
    • Panelboard Type : Main lugs
    • Branch Circuit Breaker Type : EDB/EDG/EDJ
    • Busbar Material : Copper
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Returnability : Yes
    • Discount Schedule : PE1A
    • Nbr. Of Units In Pkg. : 1
    • GTIN : 00785901871576
    • Category : 08350 - NF MLO INTERIOR RTA
    • Country Of Origin : MX
