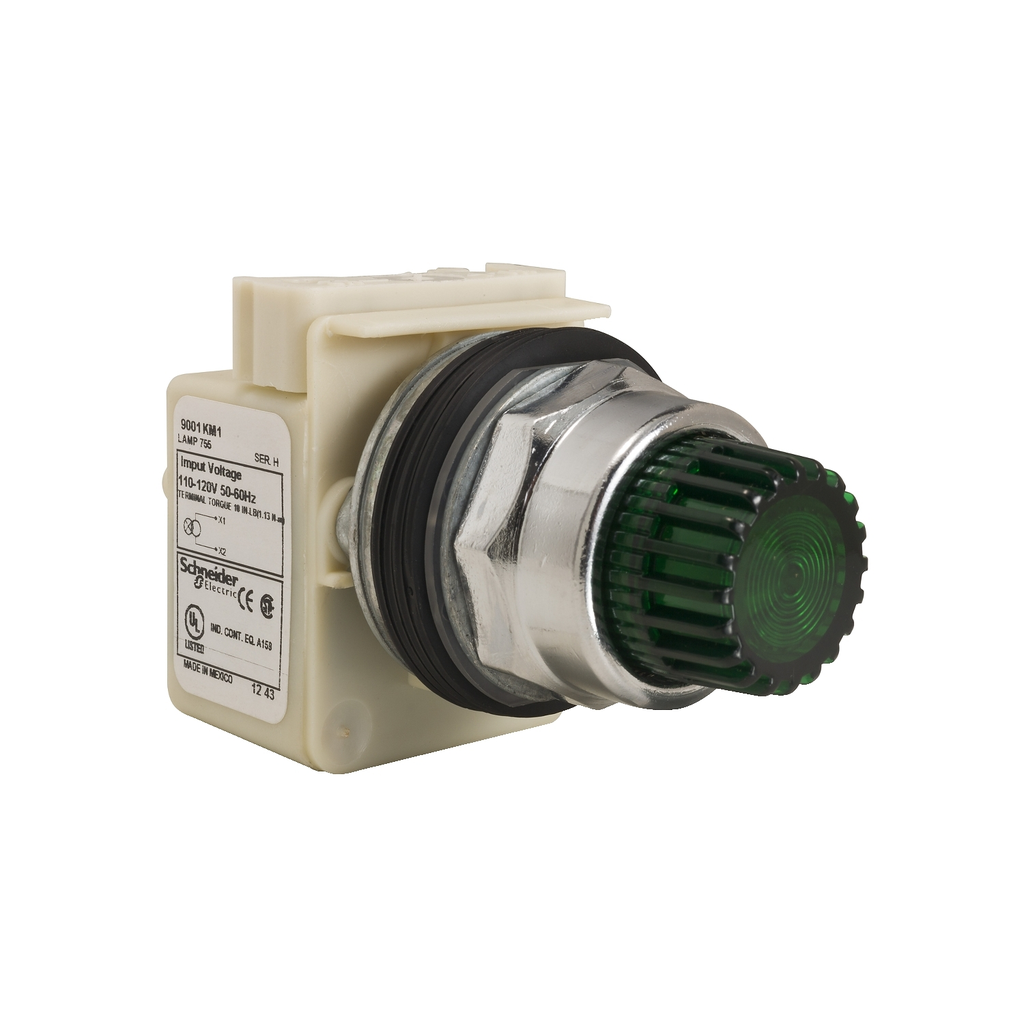

Illuminated push-button head, Harmony 9001K, metal, projecting, green, 30mm, spring return, LED green, 120V

PUSHBUTTON OPERATOR 30MM TYPE

SQD9001K2L38LGG 9001K2L38LGG 785901831341
183.40 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button head, Harmony 9001K, metal, projecting, green, 30mm, spring return, LED green, 120V-1
  • Bezel Material: Metal
  • Warranty Length: 18 mth
This Harmony 9001K, modular consists of illuminated projecting green push button. It has a chromium-plated metal bezel and is supplied with a 110V AC/DC integral LED. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular consists of illuminated projecting green push button. It has a chromium-plated metal bezel and is supplied with a 110V AC/DC integral LED. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : 1, no
    • Electrical Shock Protection Class : class II conforming to IEC 61140, class II conforming to IEC 61140
    • Light Block Supply : direct 120 V AC/DC, direct 120 V AC/DC, direct 120 V AC/DC
    • Light Source : Green LED, Green LED
    • Operator Profile : green projecting, unmarked, green projecting, unmarked, green projecting, unmarked
    • Shock Resistance : 50 gn IEC 60068-2-27, 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • HTML Description : PUSHBUTTON OPERATOR 30MM TYPE K
    • Manufacturer : Schneider Electric
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 226.796 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001K
