SQUARE D

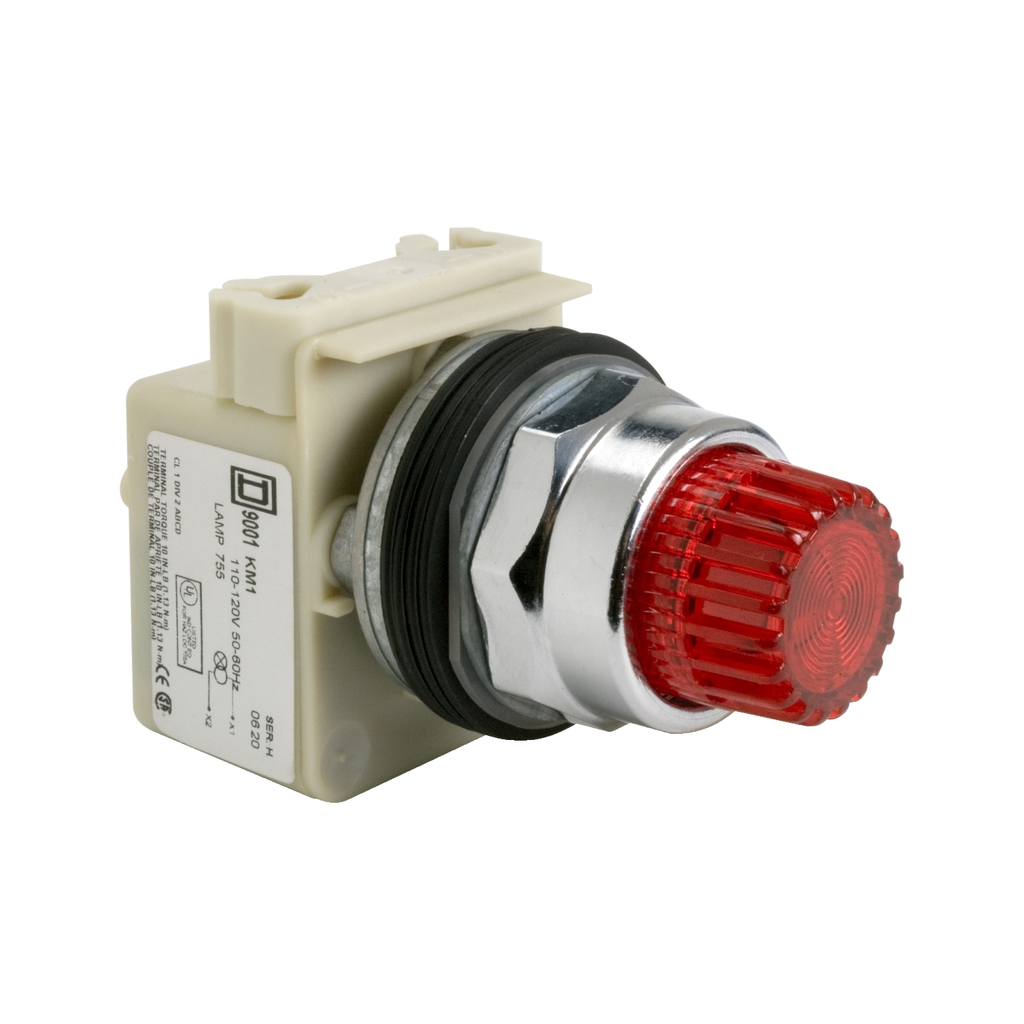

Illuminated push-button head, Harmony 9001K, metal, projecting, red, 30mm, spring return, LED red, 120V

PUSHBUTTON OPERATOR 30MM TYPE

SQD9001K2L38LRR 9001K2L38LRR 785901434009
160.08 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button head, Harmony 9001K, metal, projecting, red, 30mm, spring return, LED red, 120V-1
  • Bezel Material: Metal
  • Certifications: NEMA, UL 508
  • IsSustainable: No
  • Net Weight: 0.166 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Environment
    • Product Certifications : UL 508 || NEMA
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || JIS C 4520
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
    • Electrical Shock Protection Class : class II IEC 61140
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66 IEC 60529
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 120 V
    • Contacts Type And Composition : without contact block
    • Bezel Material : metal
    • Operator Profile : red projecting, unmarked
    • Light Source Colour : red
    • Mechanical Durability : 5000000 cycles
    • Light Block Supply : direct 120 V AC/DC
    • Type Of Operator : spring return
    • Operator Profile : projecting
    • Operating Position : any position
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : red
    • Net Weight : 0.166 kg
    • Bulb Base : BA 9s
  • Specifications
    • Light Source : Red LED
    • Range Of Product : Harmony 9001K
    • Mounting Diameter : 30 mm
    • Product Or Component Type : head for illuminated push-button
    • Device Short Name : 9001K
