Illuminated push-button head, Harmony 9001K, metal, plastic guard flush, red, 30mm, spring return, 24-28V

PUSHBUTTON OPERATOR 30MM TYPE

SQD9001K1L35R 9001K1L35R 785901048503
144.39 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Metal
  • Color: Red
  • Warranty Length: 18 mth
QTY
  • Product Description
  • Specifications

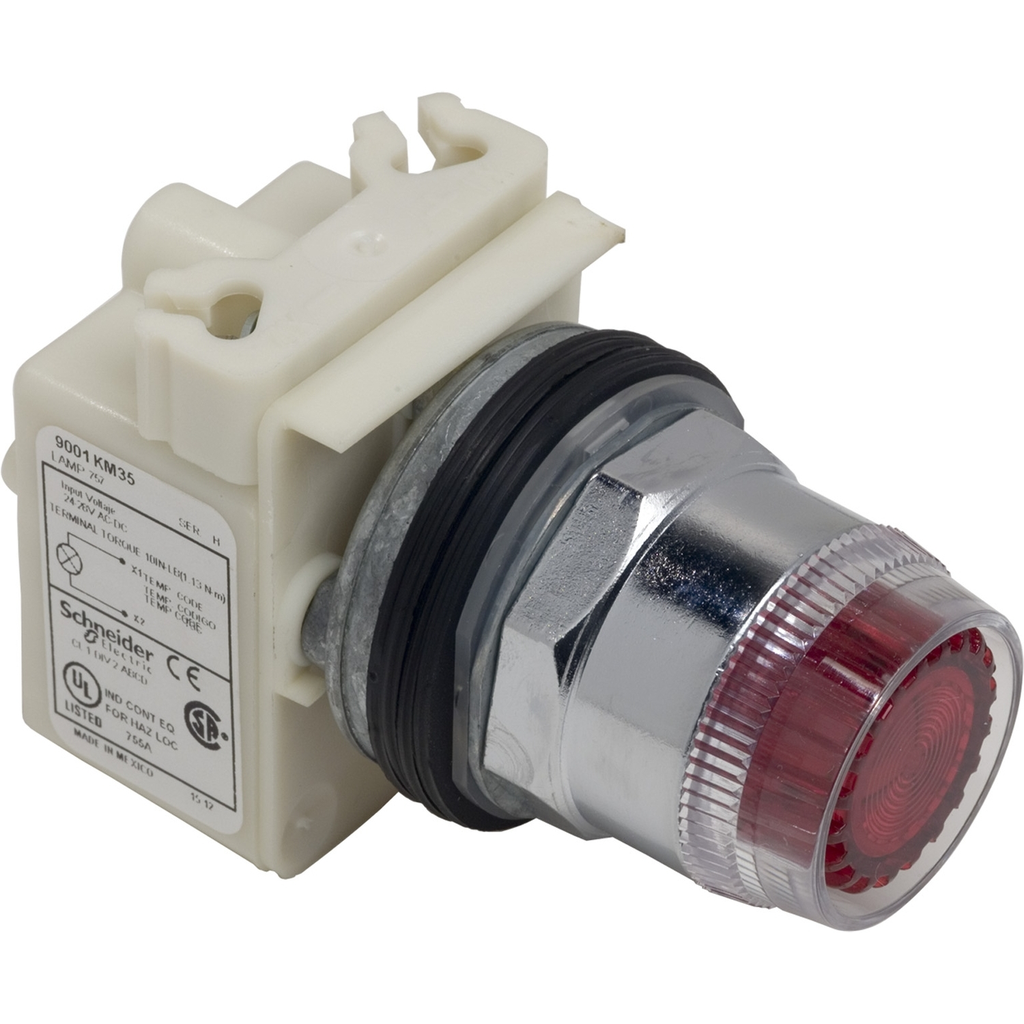

This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Complementary
    • [Us] Rated Supply Voltage : 24...28 V
    • Contacts Type And Composition : without contact block
    • Bezel Material : metal
    • Mounting Diameter : 30 mm
    • Type Of Operator : spring return
    • Light Block Supply : full voltage
    • Operator Profile : flush
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : red
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Specifications
    • Operator Additional Information : plastic guard
    • Range Of Product : Harmony 9001K
    • Operator Profile : red flush
    • Product Or Component Type : head for illuminated push-button
    • Device Short Name : 9001K
  • Contractual warranty
    • Warranty : 18 months
