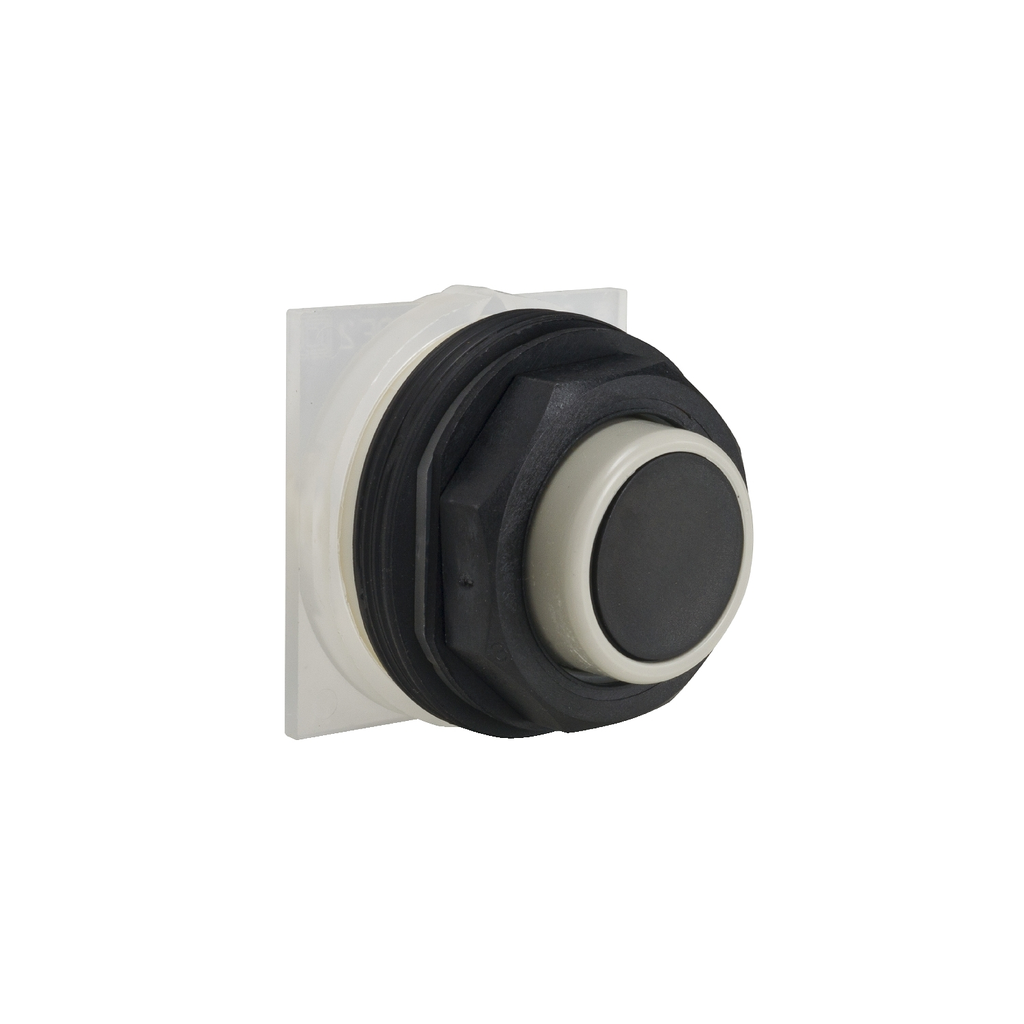

Push-button head, Harmony 9001SK, plastic, projecting, black, 30mm, spring return

PUSHBUTTON OPERATOR 30MM SK +O

SQD9001SKR3B 9001SKR3B 785901856344
45.90 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button head, Harmony 9001SK, plastic, projecting, black, 30mm, spring return-1
  • Bezel Material: Plastic
  • Light Source: Without
  • Warranty Length: 18 mth
This Harmony 9001SK, modular projecting black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, modular projecting black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR3B_CAD&p_File_name=9001SKR3B_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR3B_CAD&p_File_name=9001SKR3B_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR3B_CAD&p_File_name=9001SKR3B_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR3B_CAD&p_File_name=9001SKR3B_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKR3B_CAD&p_File_name=9001SKR3B_2D Right Side View.dxf
  • Physical Attributes
    • Size : 30 mm
    • Cap Operator Or Lens Color : black
  • Conformance Attributes
    • Product Certifications : CE, CSA LR24590 class 3211 03, UL listed file E42259 CCN NKCR
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : 1, no
    • Medium Desc : Push-button head, Harmony 9001SK, plastic, projecting, black, 30mm, spring return
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Bezel Material : plastic
    • Contacts Type And Composition : without contact block
    • Device Short Name : 9001SK
    • Light Block Supply : without supply
    • Light Source : without
    • Mounting Diameter : 30 mm
    • Operator Profile : projecting
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for push-button
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Shape Of Signaling Unit Head : octagonal
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Cap Operator Or Lens Color : black
    • Pep Code : ENVPEP2503027EN
  • Environment Attributes Main
    • Ip Degree Of Protection : IP64, IP65/IP66
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant
    • Nema Degree Of Protection : NEMA 3R/4X/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for push-button
    • Range Of Product : Harmony 9001SK
  • ETIM
    • ETIM 8 : EC000221
    • ETIM 9 : EC000221
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
