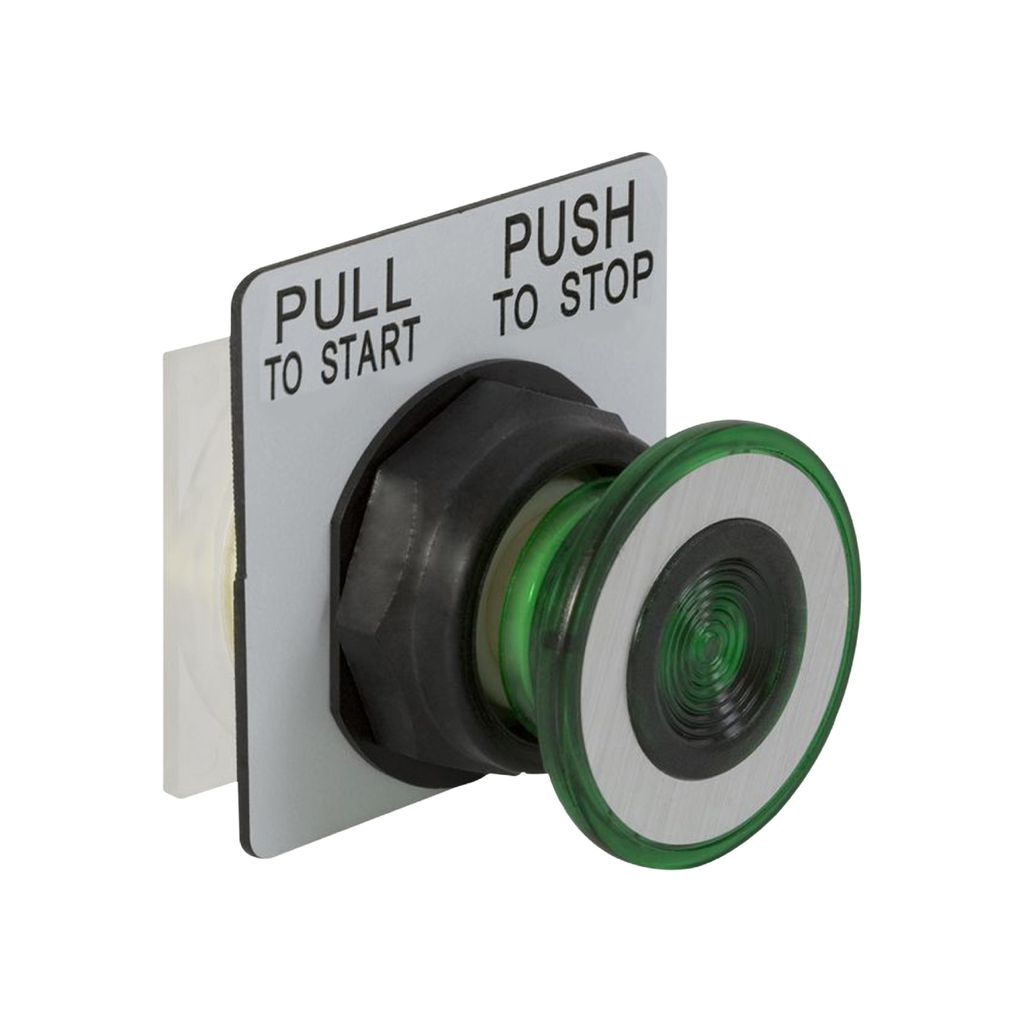

Push-button head, Harmony 9001SK, plastic, mushroom 41mm, green, 30mm, 2 positions, push-pull

PUSHBUTTON OPERATOR 30MM SK +O

SQD9001SKR9G 9001SKR9G 785901043010
153.36 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button head, Harmony 9001SK, plastic, mushroom 41mm, green, 30mm, 2 positions, push-pull-1
  • Bezel Material: Plastic
  • Country of Origin: Mexico
  • Light Source: Without
  • Warranty Length: 18 mth
This Harmony 9001SK, modular green push button has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel, has a round shape with 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, modular green push button has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel, has a round shape with 40mm mushroom head. This 40mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary
    • Product Certifications : CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR || CE
    • Operator Additional Information : screw-on plastic
    • Light Block Supply : without supply
    • Mounting Diameter : 30 mm
    • Operator Profile : mushroom Ø 41 mm
    • Shape Of Signaling Unit Head : octagonal
    • Cap/Operator Or Lens Colour : green
    • Size : 30 mm
    • Ip Degree Of Protection : IP64
    • Contacts Type And Composition : without contact block
    • Light Source : without
    • Bezel Material : plastic
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Operator Position Information : 2 positions
    • Type Of Operator : push-pull
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2312048EN
    • Packaging Without Single Use Plastic : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI2312048EN
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.396473448
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0510774736
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.4680197878
  • Contractual warranty
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Range Of Product : Harmony 9001SK
    • Product Or Component Type : head for push-button
    • Device Short Name : 9001SK
