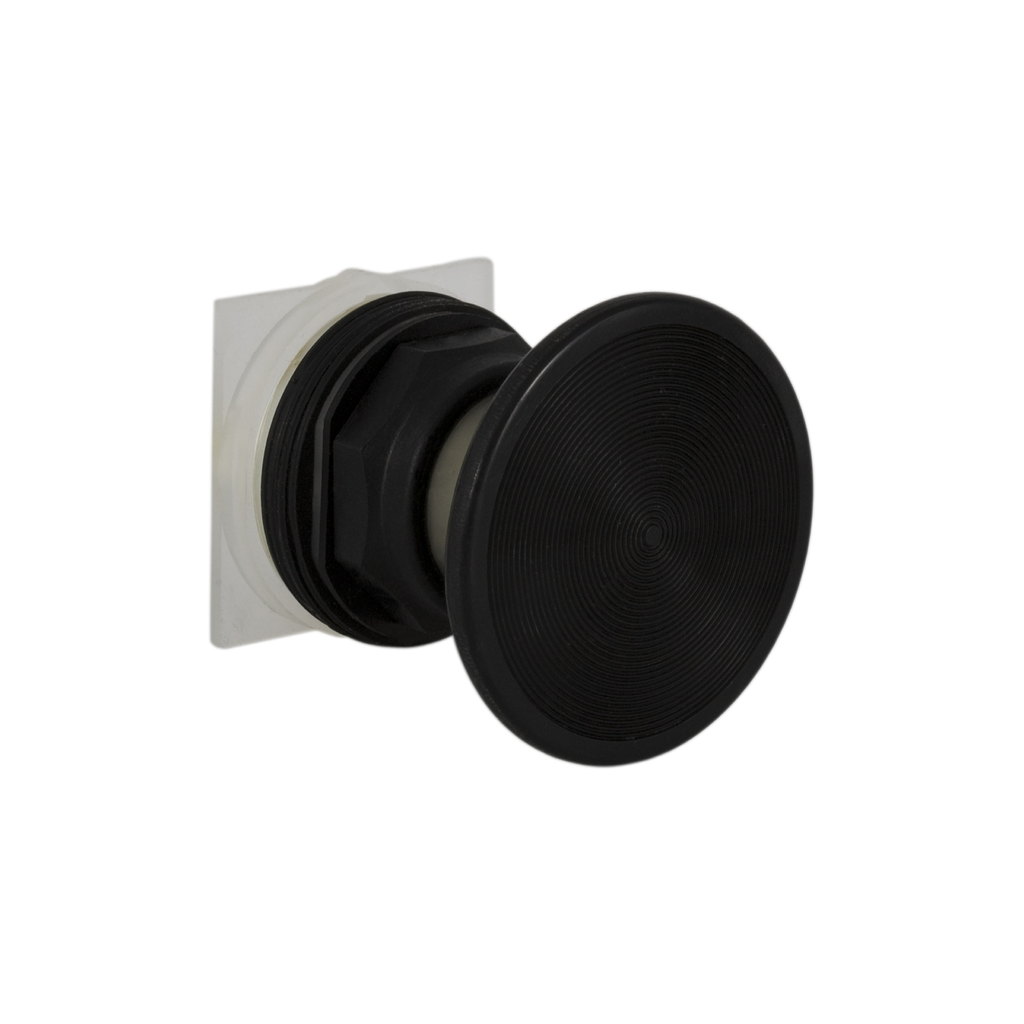

Push-button head, Harmony 9001SK, plastic, mushroom 57mm, black, 30mm, spring return

PUSHBUTTON OPERATOR 30MM SK +O

SQD9001SKR25B 9001SKR25B 785901042365
149.79 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button head, Harmony 9001SK, plastic, mushroom 57mm, black, 30mm, spring return-1
  • Bezel Material: Plastic
  • Warranty Length: 18 mth
This Harmony 9001SK, modular black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 57mm mushroom head. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, modular black push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape with 57mm mushroom head. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cad Overall Depth : 69 mm
    • Cad Overall Height : 45 mm
    • Cad Overall Width : 46 mm
  • Conformance Attributes
    • Standards : CSA C22.2 No 14, EN/IEC 60947-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : 1, no
    • Electrical Shock Protection Class : class II conforming to IEC 61140, class II conforming to IEC 61140
    • Operator Profile : black mushroom Ø 30 mm, unmarked, black mushroom Ø 30 mm, unmarked, black mushroom Ø 30 mm, unmarked
    • Shock Resistance : 50 gn IEC 60068-2-27, 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-04-05
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Compatibility Code : 9001SK
    • Device Short Name : 9001SK
    • Mounting Diameter : 30 mm
    • Package Weight Lbs : 226.796 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for push-button
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2503027EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for push-button
    • Range Of Product : Harmony 9001SK
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
