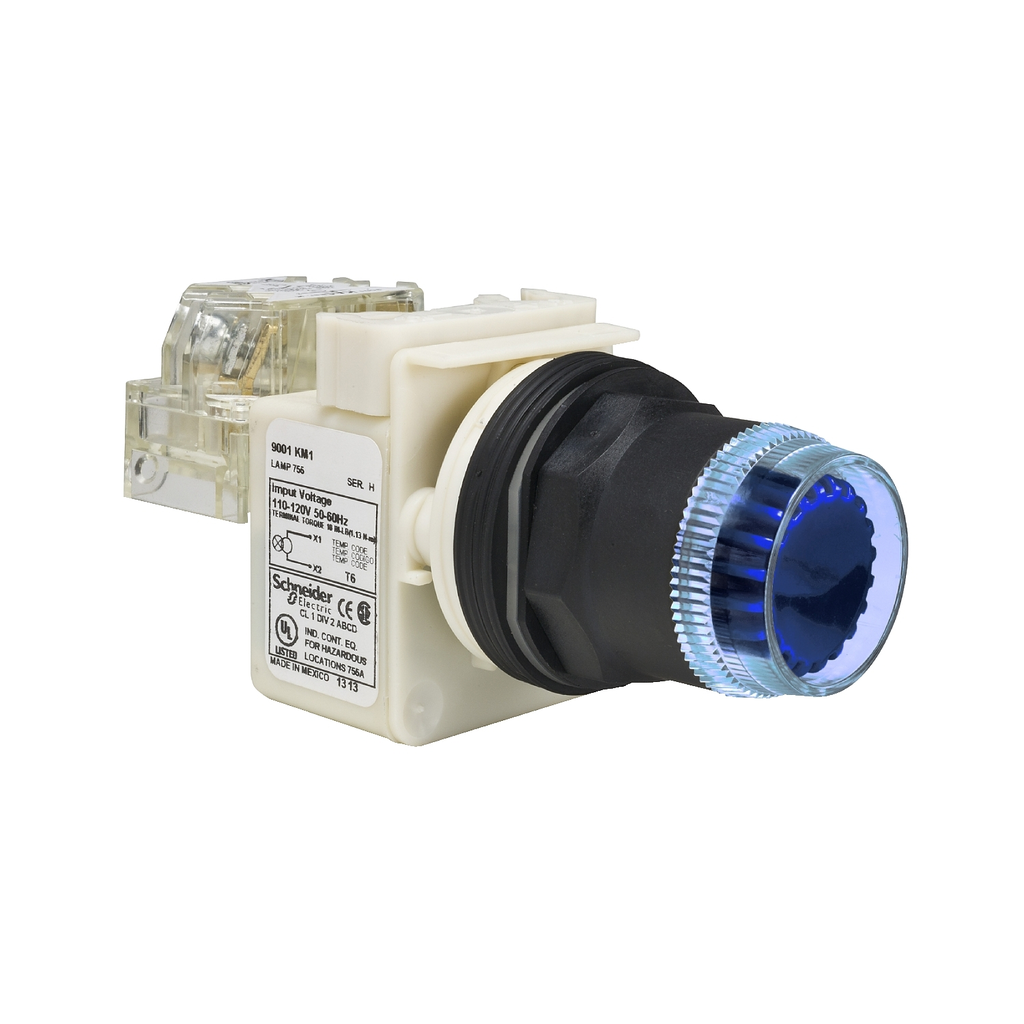

Illuminated push-button head, Harmony 9001SK, plastic, plastic guard flush, without cap, 30mm, spring return, 120V

PUSHBUTTON OPERATOR 30MM SK +O

SQD9001SK1L38 9001SK1L38 785901040477
138.52 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button head, Harmony 9001SK, plastic, plastic guard flush, without cap, 30mm, spring return, 120V-1
  • Bezel Material: Plastic
  • Certifications: CE, CSA LR24590 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121005EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Product Certifications : CSA LR24590 class 3211 03 || CE || UL listed file E42259 CCN NKCR
    • [Us] Rated Supply Voltage : 120 V
    • Contacts Type And Composition : without contact block
    • Operator Additional Information : plastic guard
    • Bezel Material : plastic
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Light Source : incandescent bulb
    • Light Block Supply : direct 120 V || full voltage
    • Mounting Diameter : 30 mm
    • Light Block Supply : full voltage or resistor
    • Operator Profile : flush
    • Type Of Operator : spring return
    • Shape Of Signaling Unit Head : octagonal
    • Cap/Operator Or Lens Colour : without cap
    • Size : 30 mm
    • Ip Degree Of Protection : IP64
    • Bulb Base : BA 9s
  • Specifications
    • Range Of Product : Harmony 9001SK
    • Product Or Component Type : head for illuminated push-button
    • Device Short Name : 9001SK
  • Contractual warranty
    • Warranty : 18 months
