SQUARE D

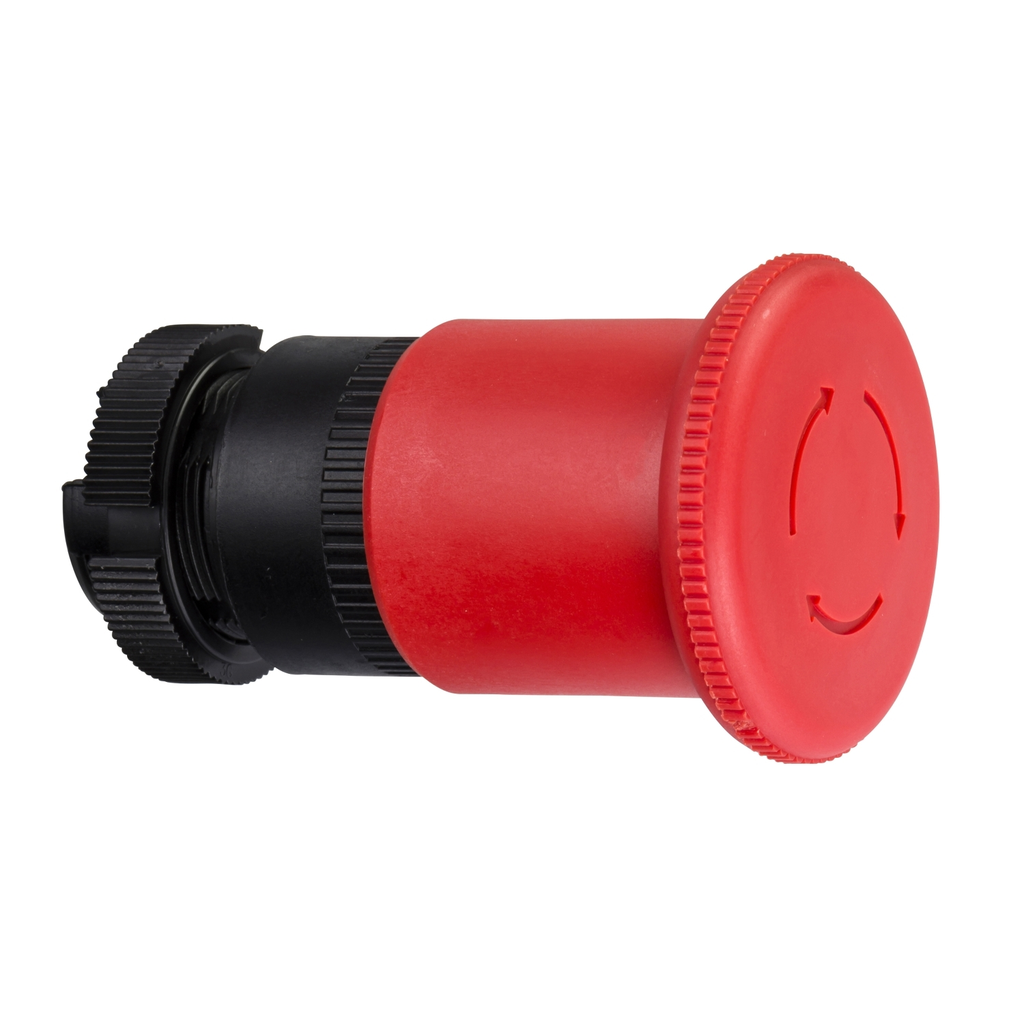

Head for emergency switching off push button, Harmony XAC, red mushroom 40mm, latching turn to release, unmarked

PUSHBUTTON

SQDZA2BS844 ZA2BS844 3389110591767
107.47 / EA
http://schema.org/OutOfStock
  • IsSustainable: No
  • Net Weight: 0.05 kg
  • Standard: CSA C22.2 No 14, IEC 60204-32, IEC 60947-5-1, IEC 60947-5-5, IEC 62262, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XAC, emergency stop / shutdown 40mm mushroom red push-button head operates with a latched turn to release mechanism. This emergency stop button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
QTY
  • Product Description
  • Specifications
This Harmony XAC, emergency stop / shutdown 40mm mushroom red push-button head operates with a latched turn to release mechanism. This emergency stop button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.
  • Environment
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : IEC 60204-32 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-5-5 || IEC 62262
    • Ambient Air Temperature For Storage : -40-70 °C
    • Vibration Resistance : 15 gn 10-500 Hz)IEC 60068-2-6
    • Ik Degree Of Protection : IK08
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • Circularity Profile : ENVEOLI1710010EN
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
  • Complementary
    • Mounting Location : front of enclosure
    • Product Compatibility : XACA..
    • Marking : unmarked
    • Operator Profile : red mushroom Ø 40 mm
    • Overvoltage Category : class II IEC 61140
    • Net Weight : 0.05 kg
  • Specifications
    • Product Or Component Type : head for emergency switching off push-button
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XAC
