SQUARE D

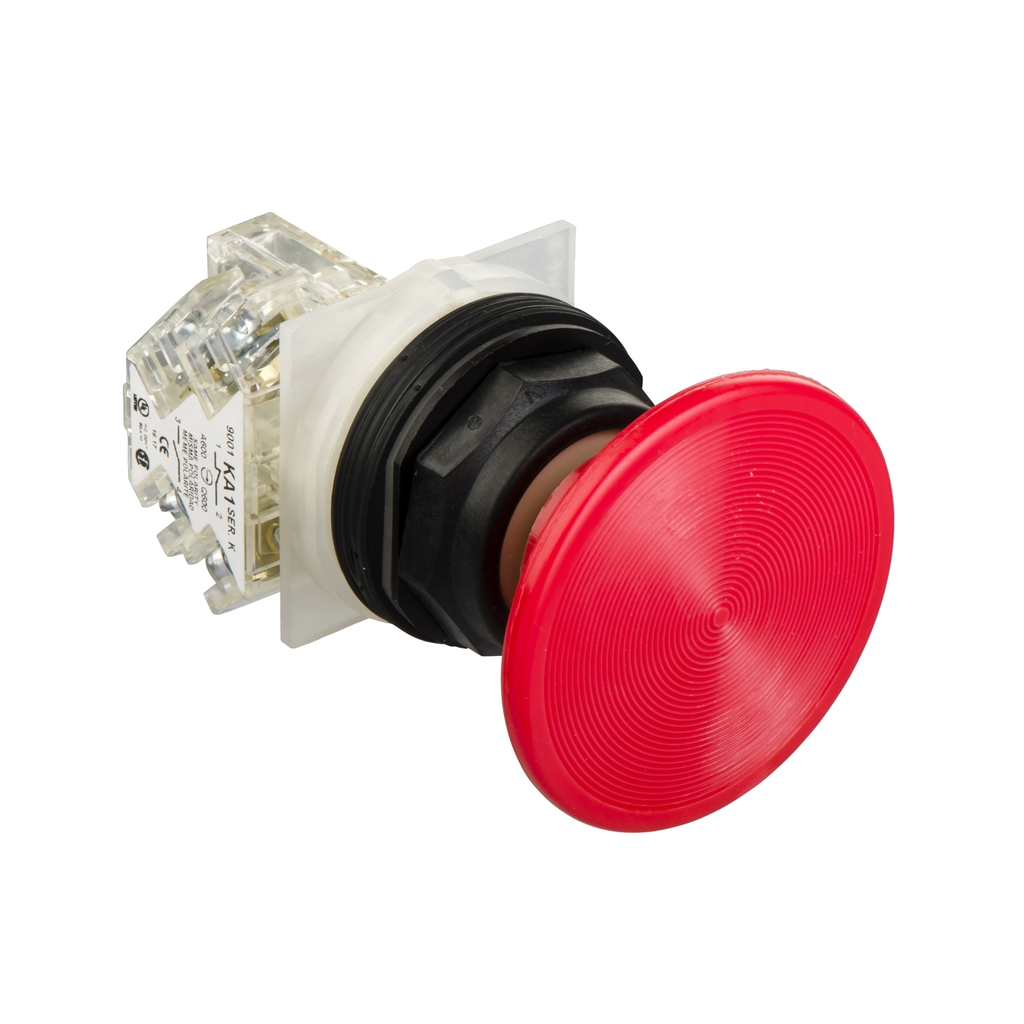

Push-button, Harmony 9001SK, plastic, mushroom 57mm, red, 30mm, spring return, 1 NC

PUSHBUTTON 600VAC 10AMP 30MM S

SQD9001SKR25RH6 9001SKR25RH6 785901042556
133.16 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button, Harmony 9001SK, plastic, mushroom 57mm, red, 30mm, spring return, 1 NC-1
  • Bezel Material: Plastic
  • Country of Origin: Mexico
  • Warranty Length: 18 mth
This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 57mm mushroom head and 1 x NC contact. This 57mm mushroom shaped push button head is ideal
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, modular red push button has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel, has a round shape and 57mm mushroom head and 1 x NC contact. This 57mm mushroom shaped push button head is ideal
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • IEC 60947-5-4
    • IEC 60947-5-1
    • CSA C22.2 No 14
    • JIS C 4520
    • IEC 60947-1
    • JIS C 852
    • UL 508
  • Accessories
    • 9001KA1
    • 9001KA2
    • 9001KA3
    • 9001KA5
  • Operator Profile
    • red mushroom Ø 57 mm
  • Physical Attributes
    • Cap Operator Or Lens Color : red
    • Size : 30 mm
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Etim 10 : EC001028
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Bezel Material : plastic
    • Cap Operator Or Lens Color : red
    • Contact Operation : standard
    • Contacts Type And Composition : 1 NC
    • Device Short Name : 9001SK
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operator Additional Information : screw-on plastic with set screw
    • Package Weight Lbs : 104.326 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : push-button
    • Range Of Product : Harmony 9001SK
  • ETIM
    • ETIM 8 : EC001028
    • ETIM 9 : EC001028
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP66
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
