Push-button, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return, 1 NC

SQD 9001SKR1UH6 PUSHBUTTON 600

SQD9001SKR1UH6 9001SKR1UH6 785901042136
70.87 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-button, Harmony 9001SK, plastic, flush, 7 colours choice, 30mm, spring return, 1 NC-1
  • Bezel Material: Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Warranty Length: 18 mth

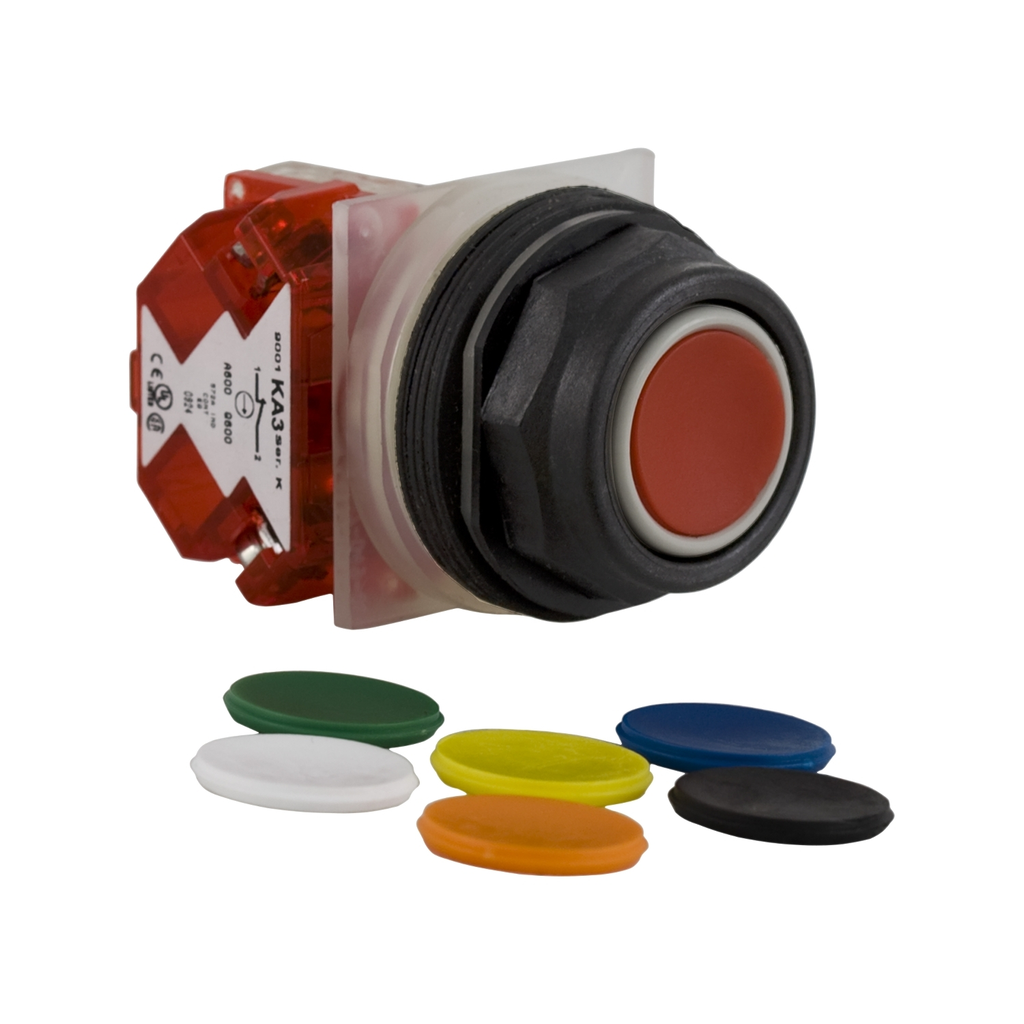

This Harmony 9001SK, modular flush push button with full guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NC contact. This flush push button with full guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001SK, modular flush push button with full guard and set of 7 color caps has 2 positions, operates with spring return mechanism. It has a double insulated plastic bezel and has 1 x NC contact. This flush push button with full guard and set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Environment
    • Standards : JIS C 4520 || CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-4
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Ip Degree Of Protection : IP66
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : EnvPEP120817EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • Contacts Type And Composition : 1 NC
    • Bezel Material : plastic
    • Contact Operation : standard
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operator Profile : flush
    • Type Of Operator : spring return
    • Cap/Operator Or Lens Colour : 7 colours choice
    • Size : 30 mm
    • Device Presentation : complete product
  • Specifications
    • Operator Additional Information : plastic guard
    • Range Of Product : Harmony 9001SK
    • Operator Profile : 7 colours choice flush
    • Type Of Operator : spring return
    • Product Or Component Type : push-button
    • Device Short Name : 9001SK
