SQUARE D

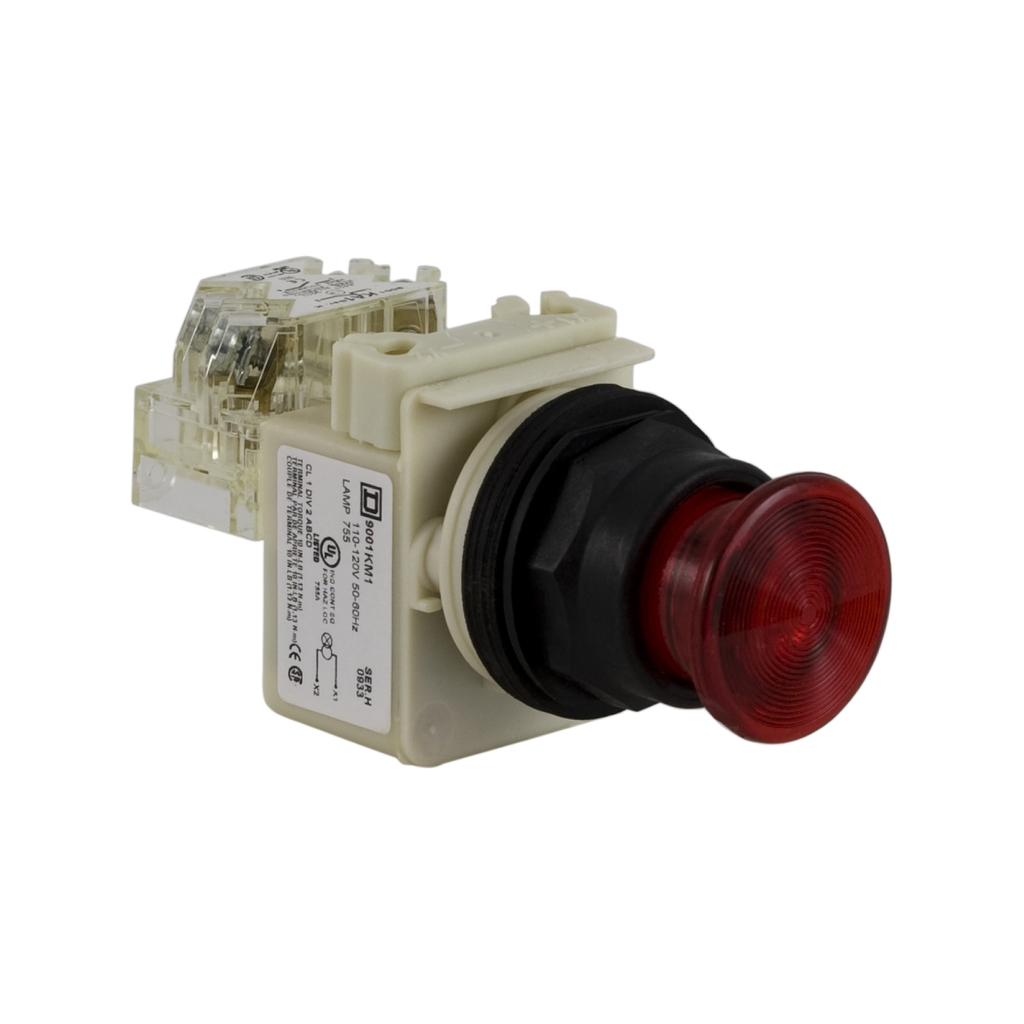

Illuminated push-button, Harmony 9001SK, plastic, mushroom 35mm, red, 30mm, spring return, 110-120V, 1 C/O

PUSHBUTTON 600VAC 10AMP 30MM S

SQD9001SK2L1R20H13 9001SK2L1R20H13 785901040941
233.02 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button, Harmony 9001SK, plastic, mushroom 35mm, red, 30mm, spring return, 110-120V, 1 C/O-1
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Contact Material: Silver Alloy
  • Net Weight: 0.181 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony 9001SK, modular illuminated red push button operates with spring return mechanism. It has a double insulated plastic bezel and is supplied with 120V AC integral LED, it has a 35mm mushroom head with 1 changeover contact. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 35mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001SK, modular illuminated red push button operates with spring return mechanism. It has a double insulated plastic bezel and is supplied with 120V AC integral LED, it has a 35mm mushroom head with 1 changeover contact. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 35mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Environment
    • Product Certifications : NEMA || UL 508
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : EN/IEC 60947-5-1 || JIS C 852 || UL 508 || EN/IEC 60947-1 || JIS C 4520 || EN/IEC 60947-5-4 || CSA C22.2 No 14
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Vibration Resistance : 7 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121005EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • [Us] Rated Supply Voltage : 110...120 V
    • [Us] Rated Supply Voltage : 110...120 V AC 50/60 Hz
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Contacts Material : silver alloy contacts
    • Mounting Diameter : 30 mm
    • Light Block Supply : via integral transformer
    • Operator Profile : mushroom Ø 35 mm
    • [Ith] Conventional Free Air Thermal Current : 10 A
    • Rated Breaking Capacity : 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 0.1 kA 240 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
    • Cap/Operator Or Lens Colour : red
    • Net Weight : 0.181 kg
    • [Uimp] Rated Impulse Withstand Voltage : 2.5 kV EN/IEC 60947-1
    • Device Presentation : complete product
    • [Icm] Rated Short-Circuit Making Capacity : 0.1 kA 240 V DC-13, 7200 VA || 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 125 V DC-13, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 60 kA 250 V DC-13, 7200 VA
    • Contacts Type And Composition : 1 C/O
    • Light Source : incandescent
    • [Ui] Rated Insulation Voltage : 250 V 3)EN/IEC 60947-1
    • Bezel Material : plastic
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600-Q600 NEMA
    • Connections - Terminals : screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Contact Operation : standard
    • Mechanical Durability : 5000000 cycles
    • Type Of Operator : spring return
    • Operating Position : any position
    • Tightening Torque : 0.8-0.8 N.m EN/IEC 60947-1
    • Shape Of Screw Head : cross slotted
    • Bulb Base : BA 9s
  • Specifications
    • Operator Additional Information : screw-on plastic
    • Range Of Product : Harmony 9001SK
    • Light Block Supply : via integral transformer
    • Type Of Operator : spring return
    • Product Or Component Type : illuminated push-button
    • Operator Profile : red mushroom Ø 35 mm
    • Device Short Name : 9001SK
