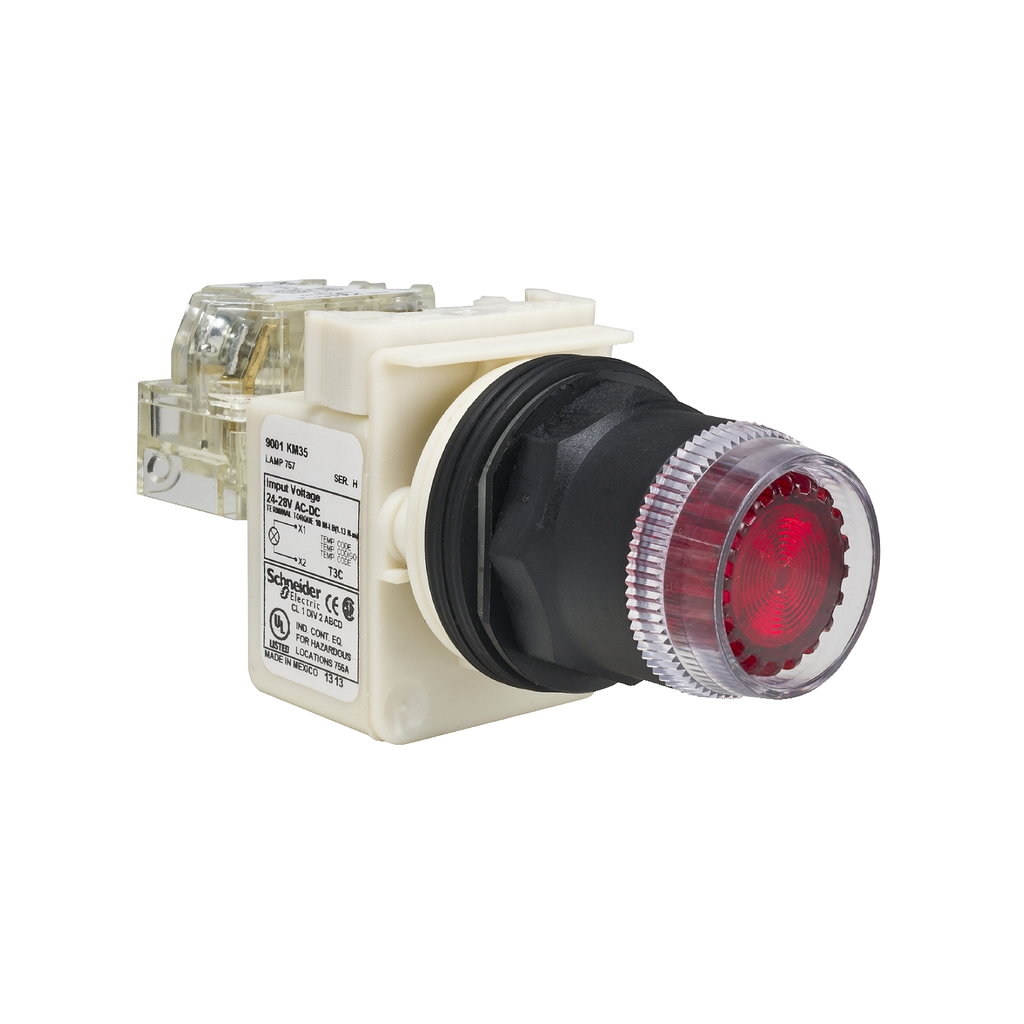

Illuminated push-button, Harmony 9001SK, plastic, plastic guard flush, red, 30mm, spring return, 24-28V, 1 C/O

PUSHBUTTON 600VAC 10AMP 30MM S

SQD9001SK1L35RH13 9001SK1L35RH13 785901040460
235.39 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • Country of Origin: Mexico
  • Light Source: LED
  • Operating Position: Any Position
  • Warranty Length: 18 mth
This Harmony 9001SK, modular illuminated flush red push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integr
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, modular illuminated flush red push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integr
  • Connections Terminals
    • screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
  • Uimp Rated Impulse Withstand Voltage
    • 2.5 kV IEC 60947-1
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Standards
    • IEC 60947-1
    • IEC 60947-5-4
    • JIS C 852
    • IEC 60947-5-1
    • CSA C22.2 No 14
    • JIS C 4520
  • Ui Rated Insulation Voltage
    • 250 V 3)IEC 60947-1
  • Icm Rated Short Circuit Making Capacity
    • 0.1 kA 240 V DC-13, 7200 VA
    • 12 kA 600 V AC-15, 7200 VA
    • 15 kA 480 V AC-15, 7200 VA
    • 15 kA 4
  • Ip Degree Of Protection
    • IP66 IEC 60529
  • Electrical Shock Protection Class
    • class II conforming to IEC 61140
  • Nema Degree Of Protection
    • NEMA 1
    • NEMA 12
    • NEMA 13
    • NEMA 2
    • NEMA 3
    • NEMA 3R
    • NEMA 4
    • NEMA 4X
  • Accessories
    • 9001KA1
    • 9001KA2
    • 9001KA3
    • 9001KA5
  • Vibration Resistance
    • 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Us Rated Supply Voltage
    • 24...28 V AC/DC
  • Tightening Torque
    • 0.8-0.8 N.m IEC 60947-1
  • Short Circuit Protection
    • 10 A cartridge fuse IEC 60947-5-1
  • Ie Rated Operational Current
    • 0.55 A 125 V, DC-13, A600-Q600 NEMA
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Operator Profile
    • red flush
  • Shock Resistance
    • 50 gn IEC 60068-2-27
  • Rated Breaking Capacity
    • 1.2 kA 600 V AC-15, 720 VA
    • 1.5 kA 480 V AC-15, 720 VA
    • 3 kA 240 V AC-15, 720 VA
    • 3 kA 240 V AC
  • Product Certifications
    • UL 508
    • NEMA
  • Physical Attributes
    • Cap Operator Or Lens Color : red
  • Important Information Attributes
    • Country Id : US
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-09-09
    • ETIM 10 : EC001028
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : No
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1930
    • ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : red
    • Contact Operation : standard
    • Contacts Material : silver alloy contacts
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : 9001SK
    • Light Block Supply : direct
    • Light Source : LED
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • Operator Additional Information : plastic guard
    • Package Weight Lbs : 211.828 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Shape Of Screw Head : cross slotted
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current : 10 A
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001SK
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=491909&lang=en-us
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
  • Overview Attributes
    • Device Presentation : complete product
