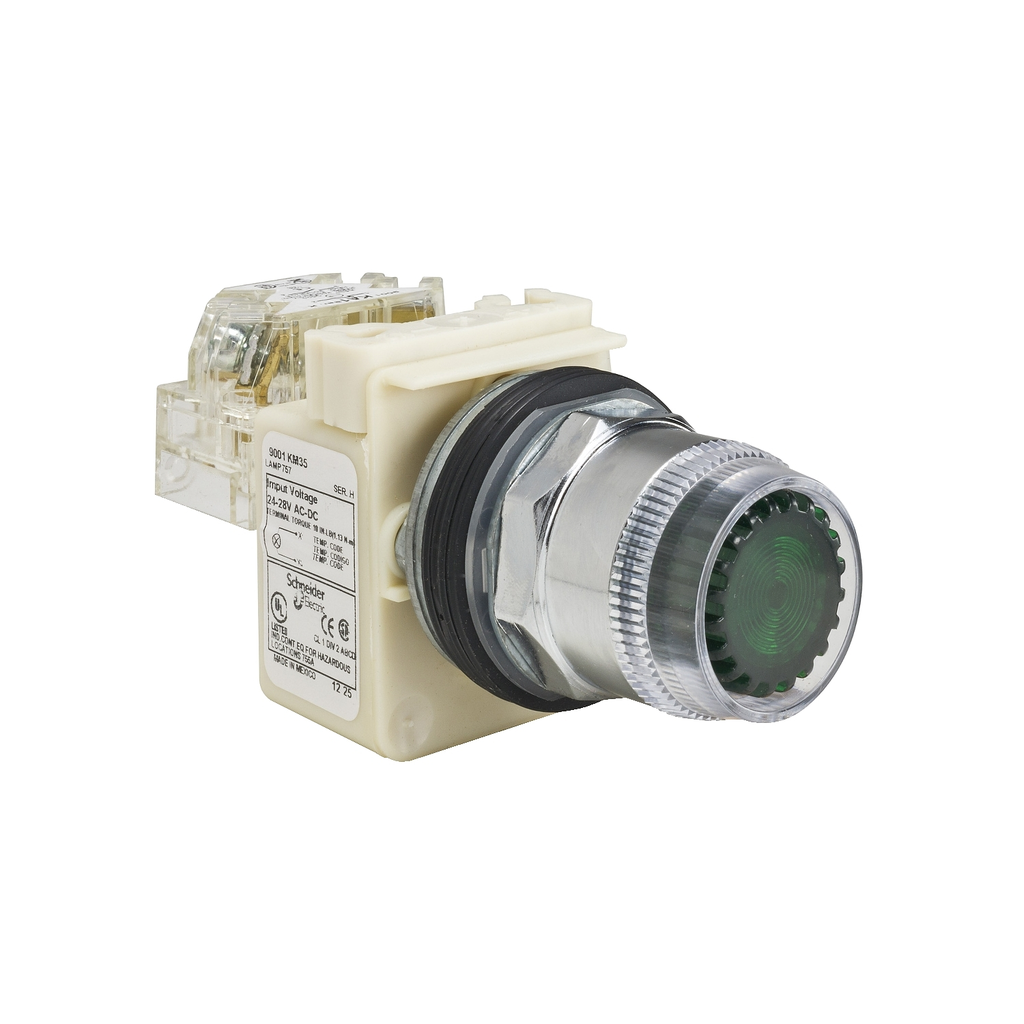

Illuminated push-button, Harmony 9001K, metal, plastic guard flush, green, 30mm, spring return, 24-28V, 1 C/O

PUSHBUTTON 600VAC 10A 30MM TYP

SQD9001K1L35GH13 9001K1L35GH13 785901027294
207.16 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button, Harmony 9001K, metal, plastic guard flush, green, 30mm, spring return, 24-28V, 1 C/O-1
  • Bezel Material: Metal
  • Certifications: CE, CSA LR 25490 Class 3211 03, NEMA, UL Listed File E42259 CCN NKCR
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Environment
    • Product Certifications : UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || NEMA || CE
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 24...28 V
    • [Us] Rated Supply Voltage : 24...28 V AC/DC
    • Contacts Type And Composition : 1 C/O
    • Light Source : incandescent
    • Bezel Material : metal
    • [Ie] Rated Operational Current : 10 A, AC-15 || 10 A, DC-13
    • Connections - Terminals : screw clamp terminals
    • Contact Operation : standard
    • Light Source : incandescent bulb
    • Light Block Supply : direct
    • Mounting Diameter : 30 mm
    • Light Block Supply : full voltage
    • Operator Profile : flush
    • Type Of Operator : spring return
    • Operating Position : any position
    • Cap/Operator Or Lens Colour : green
    • Size : 30 mm
    • Bulb Base : BA 9s
    • Device Presentation : complete product
  • Specifications
    • Operator Additional Information : plastic guard
    • Range Of Product : Harmony 9001K
    • Operator Profile : green flush
    • Type Of Operator : spring return
    • Product Or Component Type : illuminated push-button
    • Device Short Name : K
