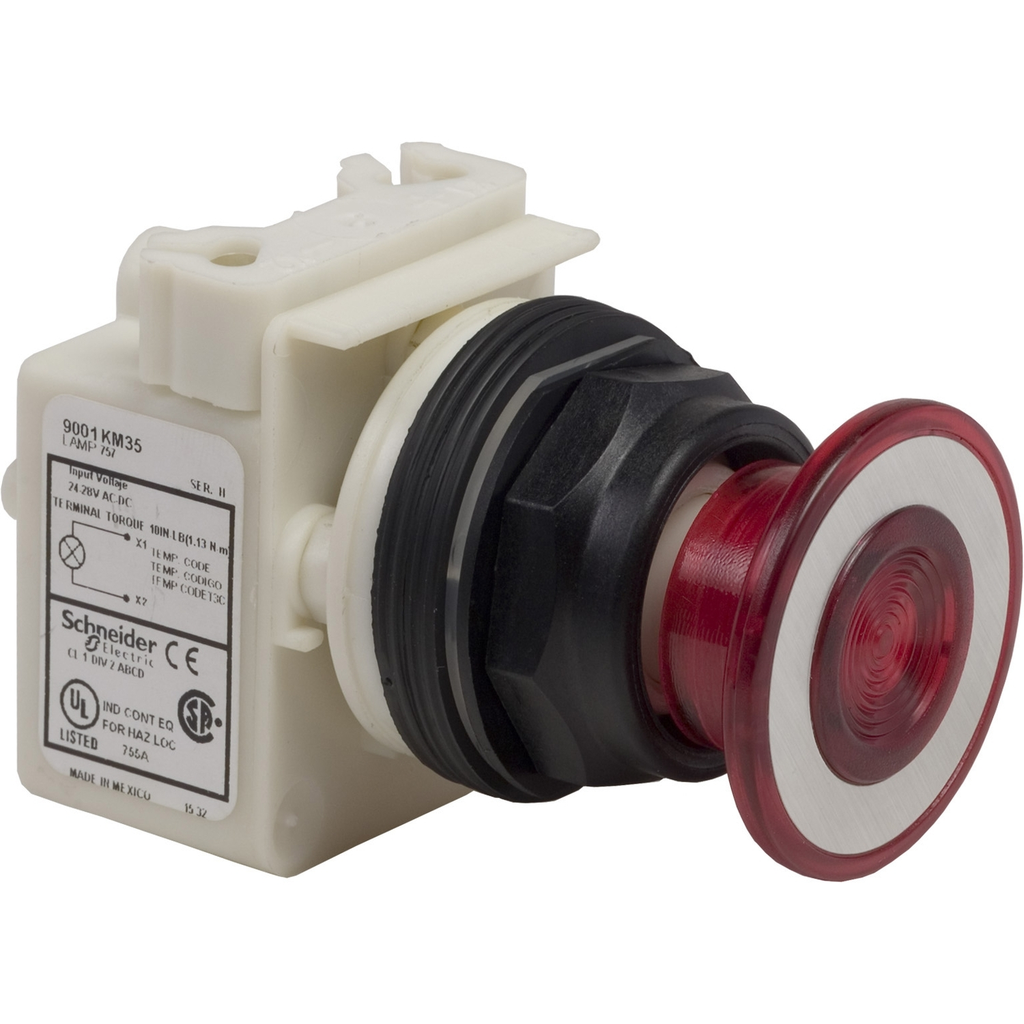

Illuminated push-button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 24-28V

PUSHBUTTON 28V 30MM SK +OPTION

SQD9001SKR9P35R 9001SKR9P35R 785901043140
265.02 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 24-28V-1
  • Bezel Material: Plastic
  • Light Source: Incandescent Bulb
  • Warranty Length: 18 mth
This Harmony 9001SK, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001SK, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : red
    • Size : 30 mm
  • Conformance Attributes
    • Standards : UL 508, JIS C 852, JIS C 4520, IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-4
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Carbon Footprint Of The Distribution Phase A4 : 0.0134301315, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.086438535
    • Carbon Footprint Of The Installation Phase A5 : 0.0212093812, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.7 kg CO2 eq., 0.6709529971
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : red
    • Contacts Type And Composition : without contact block
    • Device Short Name : 9001SK
    • Light Block Supply : full voltage
    • Light Source : incandescent bulb
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Operator Additional Information : screw-on plastic
    • Operator Position Information : 2 positions
    • Operator Profile : mushroom Ø 41 mm
    • Package Weight Lbs : 99.79 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001SK
    • Returnability : No
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.8 kg CO2 eq.
    • Type Of Operator : push-pull
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Us Rated Supply Voltage2 : 24...28 V
    • Medium Desc : Illuminated push-button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 2 positions, push-pull, 24-28V
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-12-07
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; MX
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66, IP65/IP66
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.7920310448
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Nema Degree Of Protection : NEMA 3R/4X/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
    • Pep Verification Date : 2023-12-07
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : head for illuminated push-button
    • Range Of Product : Harmony 9001SK
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : basic element
