SQUARE D

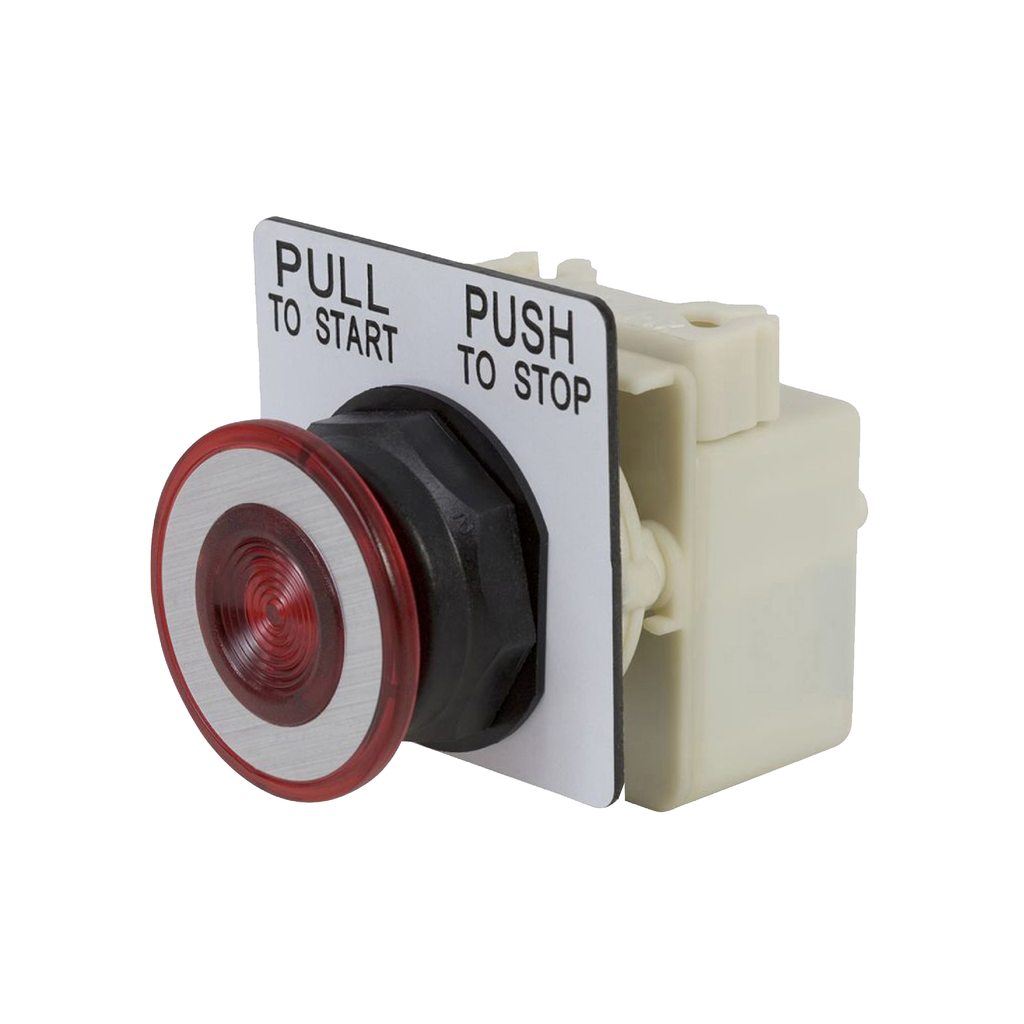

Illuminated push-button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 3 positions, return to center, 110-120V

PUSHBUTTON 120VAC 30MM SK +OPT

SQD9001SKR8P1R 9001SKR8P1R 785901042983
215.84 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button head, Harmony 9001SK, plastic, mushroom 41mm, red, 30mm, 3 positions, return to center, 110-120V-1
  • Bezel Material: Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
  • Warranty Length: 18 mth
This Harmony 9001SK, modular illuminated red push button with screw-in head operates with spring return mechanism. It has a double insulated plastic bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001SK, modular illuminated red push button with screw-in head operates with spring return mechanism. It has a double insulated plastic bezel and is supplied with 110V AC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Environment
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C 852 || EN/IEC 60947-5-4 || UL 508 || JIS C 4520
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/4X/6/12/13
    • Ip Degree Of Protection : IP66
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP120816EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 110...120 V
    • Contacts Type And Composition : without contact block
    • Bezel Material : plastic
    • Operator Position Information : 3 positions
    • Light Source : incandescent bulb
    • Mechanical Durability : 5000000 cycles
    • Mounting Diameter : 30 mm
    • Light Block Supply : via integral transformer
    • Operator Profile : mushroom Ø 41 mm
    • Type Of Operator : pull : spring return, center : stay put, push : spring return
    • Cap/Operator Or Lens Colour : red
    • Size : 30 mm
    • Supply Frequency : 50...60 Hz
    • Bulb Base : BA 9s
    • Device Presentation : basic element
  • Specifications
    • Operator Additional Information : screw-on plastic
    • Range Of Product : Harmony 9001SK
    • Product Or Component Type : head for illuminated push-button
    • Device Short Name : 9001SK
