Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², blue, set of 50

Push-in terminal, 3pts, 2,5mm

SQDNSYTRP23BL NSYTRP23BL 3606480533174
1.83 / EA
http://schema.org/OutOfStock

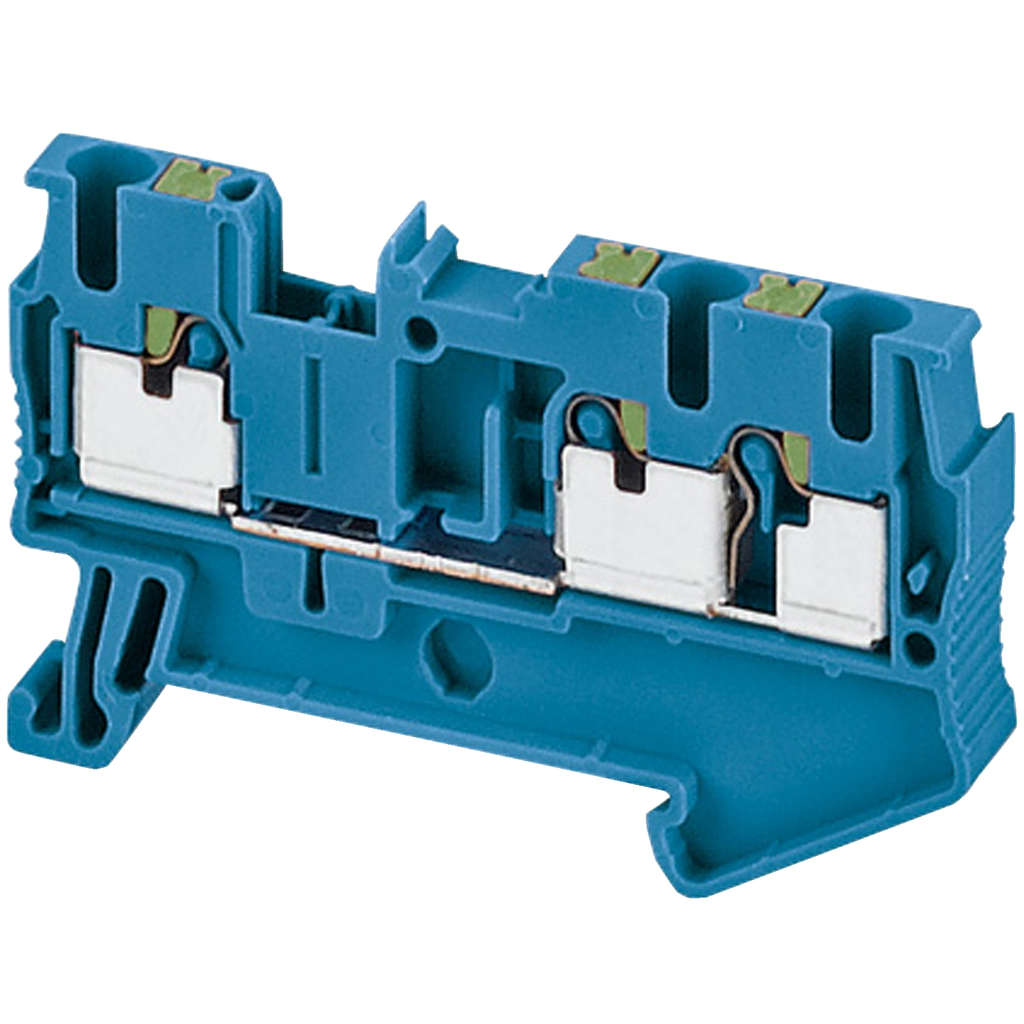

Mayer-DDS-Terminal block, Linergy TR, push-in type, feed through, 3 points, 2.5mm², blue, set of 50-1
  • Dielectric Strength: 1000 V
  • Warranty Length: 18 mth
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has blue surface treatment. Mounting by clip-on and top connection by single-level 1x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL).
QTY
  • Product Description
  • Specifications
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has blue surface treatment. Mounting by clip-on and top connection by single-level 1x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL).
  • Physical Attributes
    • Color Options : NSYTRP23, NSYTRP23PE, NSYTRP23AR
    • Color : Blue
  • Complementary Attributes
    • Line Rated Current : 24-24 A EN/IEC 60947-7-1, 20-20 A CSA, 20-20 A UL
    • UE Rated Operational Voltage : 800 V EN/IEC 60947-7-1, 600 V CSA, 600 V UL
  • Important Information Attributes
    • Persona Type Ids : EU, LC, OM, OM8, PB, SI
    • Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Cable Cross Section : 0.14-2.5 mm², flexible without cable end, 0.14-4 mm², solid with cable end, 0.2-2.5 mm², solid without cable end, 0.8-2.5 mm², flexible with cable end
    • Creep Resistance : 500 CTI (> 400 kB) IEC 60093, 500 CTI (> 400 kB) VDE 0303-T30
    • Dielectric Loss : 0.01 at 1 MHz IEC 60250, 0.01 at 1 MHz VDE 0303-T4
    • Material : polyamide 6/6: insulating case, copper alloy: connector and screw, copper alloy: commoning link, chromium-nickel steel: spring
    • Range Compatibility : PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys
    • Resistivity : 10000 MΩ.m IEC 60093, 10000 MΩ.m VDE 0303-T30
    • Surface Resistance : 1000 GΩ IEC 60093, 1000 GΩ VDE 0303-T30
    • Tool Type : connection without tool, disconnection flat screwdriver
    • Carbon Footprint Of The Distribution Phase A4 : 0.001070325, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.021080451
    • Carbon Footprint Of The Installation Phase A5 : 0.000966305, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.1 kg CO2 eq., 0.050892926
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 4 kg CO2 eq., 4.4787
    • Connections Terminals : 1 x push-in upstream, 2 x push-in downstream
    • Color Options : NSYTRP23, NSYTRP23PE, NSYTRP23AR
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-15
    • WEEE Applicability : Component
    • WEEE Scope : Out
    • Legacy WEEE Scope : Out
    • WEEE Exclusion Rationale : Component not in scope – non independent function
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 1 - GSC certified
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Compatibility Code : terminal block
    • Connection Position : top
    • Device Short Name : TRP
    • Dielectric Constant : 3.7 at 1 MHz
    • Dielectric Strength : 1000 V IEC 60243-1
    • Flame Retardance : V0 0.8 mm UL 94
    • Halogen Free Status : Halogen free plastic parts product
    • Nominal Cross Section : 2.5 mm²
    • Package Weight Lbs : 7.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : terminal block
    • Range : Linergy
    • Range Of Product : Linergy
    • Returnability : No
    • Sustainable Packaging : Yes
    • Terminal Block Type : passthrough
    • Total Lifecycle Carbon Footprint : 5 kg CO2 eq.
    • Relationship Type : Compatible relationship
    • Pep Code : ENVPEP2309019EN
    • Pep Verification Date : 2023-12-03
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
    • Functional Unit Description : Connect during 20 years 2 clamping units between 2 or more wires with a rated connecting capacity 19 A, a rated cross-section 2.5 mm2, a rated voltage 550 V, a short-time withstand current 0.3 kA.
    • Functional Unit Unit : unit
    • Product Kit Identifier : N
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -40-130 °C IEC 60216-1, -40-130 °C IEC 60216-1, -40-130 °C VDE 0304-T21, -40-130 °C VDE 0304-T21
    • EU ROHS Directive : Compliant​, Compliant
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Reach Free SHVC : Yes
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Silicon Free : Yes
    • Carbon Footprint : 4.552710007
    • Environmental Disclosure : ENVPEP2309019EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2309019EN
    • Pep Verification Date : 2023-12-03
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : terminal block
    • Range Of Product : Linergy
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Input Attributes
    • Number Of Measurement Input : 2
