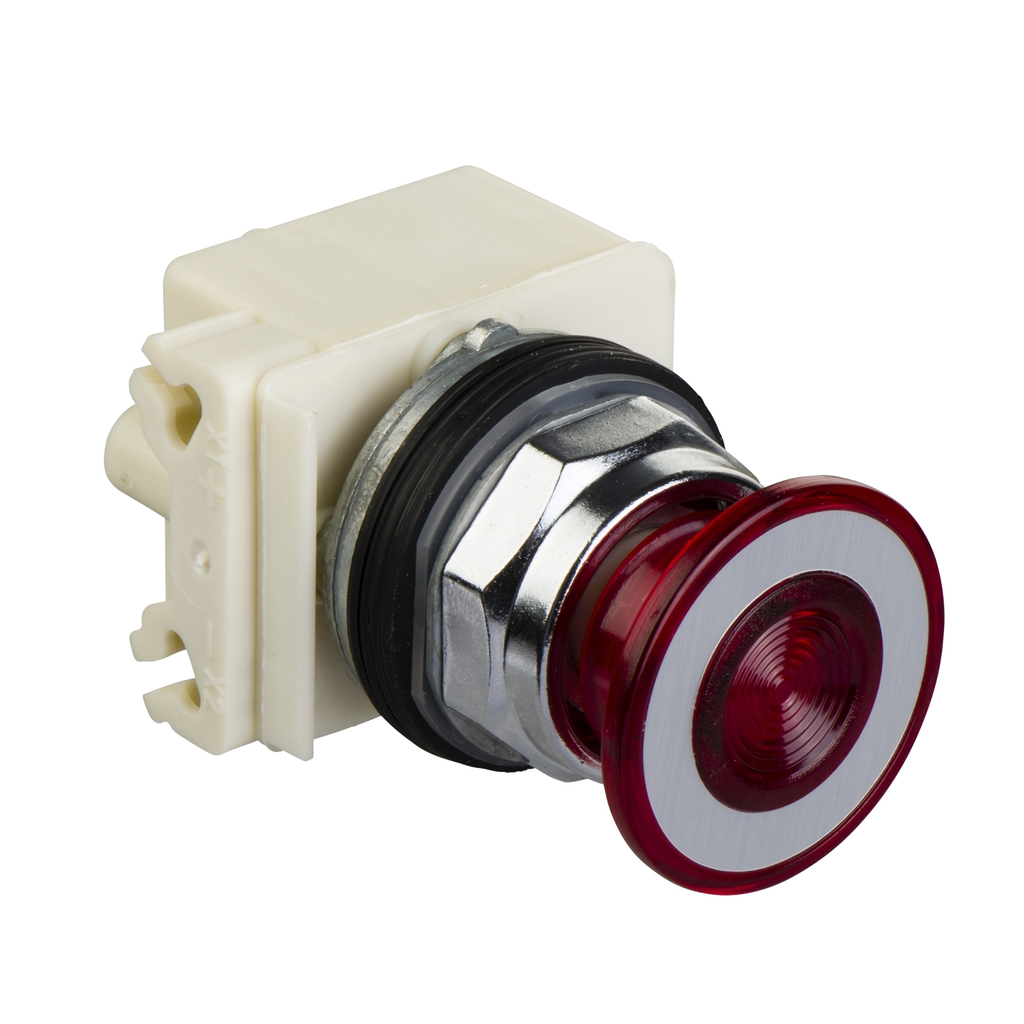

Illuminated push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, 2 positions, push-pull, 24-28V, 1 NC

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001KR9P35R21H6 9001KR9P35R21H6 785901734185
300.59 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button, Harmony 9001K, metal, mushroom 57mm, red, 30mm, 2 positions, push-pull, 24-28V, 1 NC-1
  • Bezel Material: Metal
  • Warranty Length: 18 mth
This Harmony 9001K, illuminated mushroom head metal pushbutton, with an incandescent BA 9s bulb, is supplied with 24-28V. It has 2 positions and operates with a push-pull mechanism, and is equipped with 1 NC contact. This illuminated pushbutton provides an ergonomic and visual interface for your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. This metal pushbutton has a 57mm diameter red mushroom head. It complies with CE, UL listed file E42259 CCN NKCR, NEMA, and CSA LR 25490 class 3211 03 certifications. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, illuminated mushroom head metal pushbutton, with an incandescent BA 9s bulb, is supplied with 24-28V. It has 2 positions and operates with a push-pull mechanism, and is equipped with 1 NC contact. This illuminated pushbutton provides an ergonomic and visual interface for your machines. It is easily installed into standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. This metal pushbutton has a 57mm diameter red mushroom head. It complies with CE, UL listed file E42259 CCN NKCR, NEMA, and CSA LR 25490 class 3211 03 certifications. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • IE Rated Operational Current : 10 A, AC-15, 10 A, AC-15, 10 A, DC-13, 10 A, DC-13
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • IE Rated Operational Current : 10 A, AC-15, 10 A, AC-15, 10 A, DC-13, 10 A, DC-13
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-09-16
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Device Short Name : K
    • Light Block Supply : without supply
    • Mounting Diameter : 30 mm
    • Operator Position Information : 2 positions
    • Package Weight Lbs : 226.796 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Sustainable Packaging : No
    • Pep Code : ENVPEP2503027EN
    • Product Kit Identifier : N
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
