SQUARE D

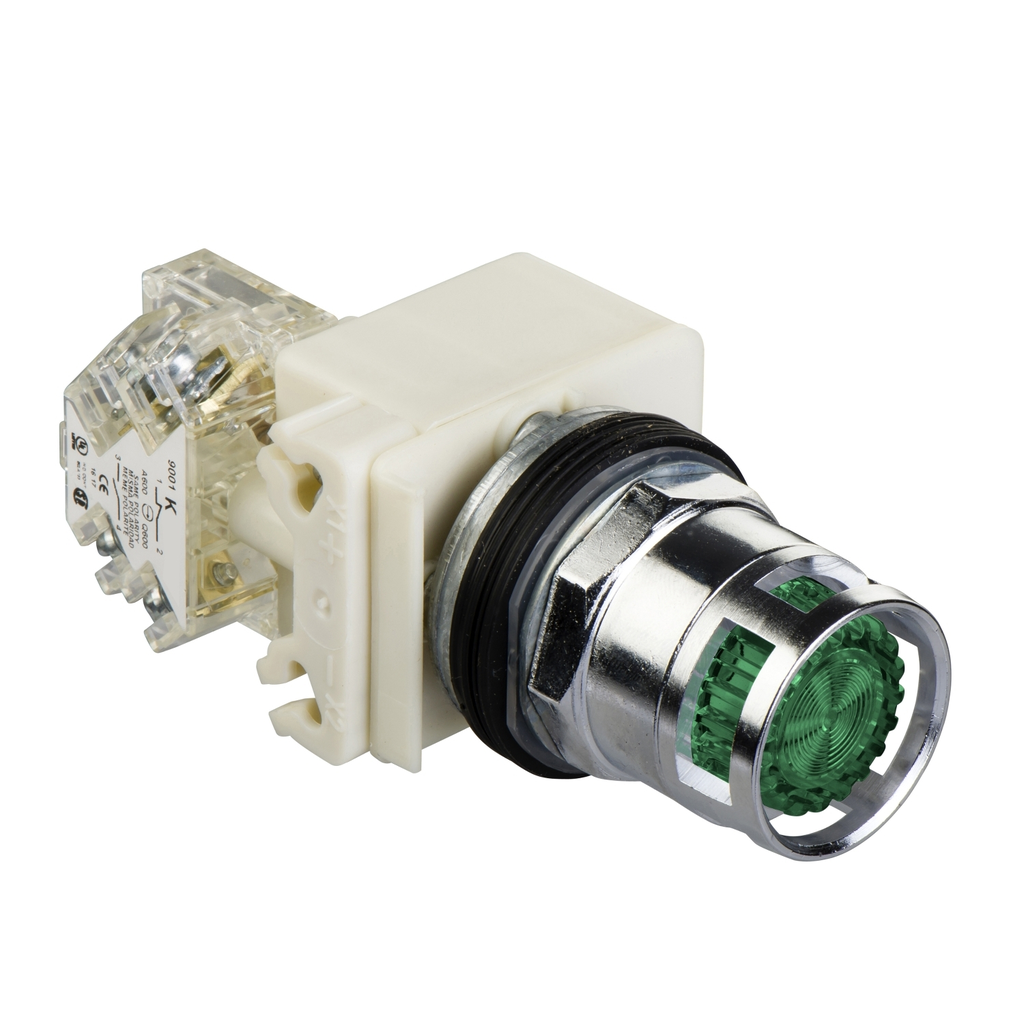

Illuminated push-button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24-28V, 1 NO

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001K3L35GH5 9001K3L35GH5 785901179252
212.16 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Illuminated push-button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24-28V, 1 NO-1
  • Bezel Material: Metal
  • Light Source: Incandescent Bulb, Incandescent
  • Operating Position: Any Position
  • Warranty Length: 18 mth
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony 9001K, modular illuminated flush green push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Cap Operator Or Lens Color : green
    • Size : 30 mm
  • Conformance Attributes
    • Product Certifications : CE, CSA LR 25490 class 3211 03, NEMA, UL listed file E42259 CCN NKCR
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Light Block Supply : direct, full voltage
    • Light Source : incandescent bulb, incandescent
    • Operator Profile : flush, green flush
    • Ie Rated Operational Current2 : 10 A, AC-15, 10 A, DC-13
    • Us Rated Supply Voltage2 : 24...28 V, 24...28 V AC/DC
    • Ie Rated Operational Current5 : 10 A, AC-15, 10 A, DC-13
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Cap Operator Or Lens Color : green
    • Contact Operation : standard
    • Contacts Type And Composition : 1 NO
    • Device Short Name : K
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • Operator Additional Information : metal guard
    • Package Weight Lbs : 226.796 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Sustainable Packaging : Yes
    • Type Of Operator : spring return
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Connections Terminals : screw clamp terminals
    • Medium Desc : Illuminated push-button, Harmony 9001K, metal, metal guard flush, green, 30mm, spring return, 24-28V, 1 NO
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
    • Connections Terminals3 : screw clamp terminals
    • Us Rated Supply Voltage5 : 24...28 V AC/DC
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : illuminated push-button
    • Range Of Product : Harmony 9001K
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Overview Attributes
    • Device Presentation : complete product
