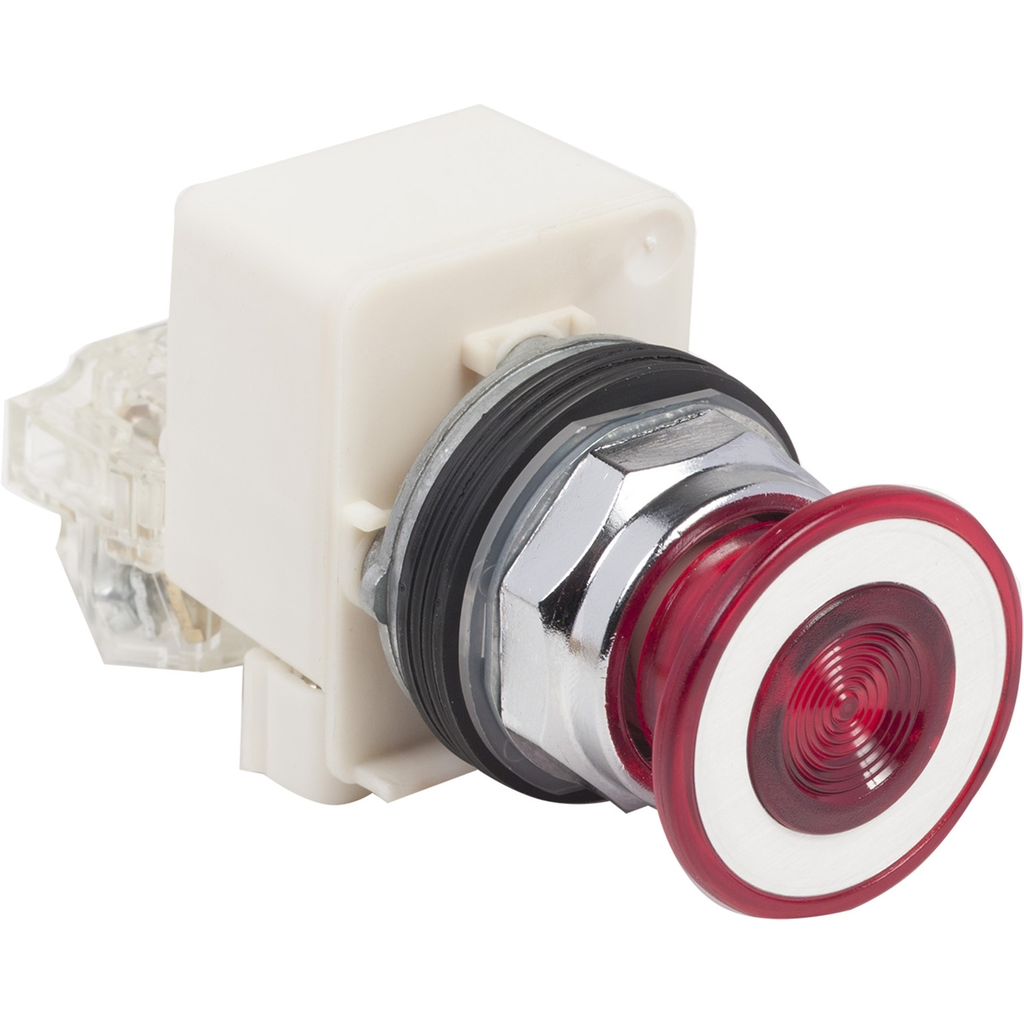

Illuminated push button, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push pull, 12...14V, 1 CO

PUSH BUTTON 600VAC 10A 30MM T-

SQD9001KR9P32RH13 9001KR9P32RH13 785901034230
296.10 / EACH
http://schema.org/OutOfStock
  • Bezel Material: Metal
  • Certifications: CE, CSA LR 25490 Class 3211 03, NEMA, UL Listed File E42259 CCN NKCR
  • Color: Red
  • Warranty Length: 18 mth
QTY
  • Product Description
  • Specifications
This red mushroom shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
  • Environment
    • Product Certifications : CE || UL listed file E42259 CCN NKCR || NEMA || CSA LR 25490 class 3211 03
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 12...14 V
    • Contacts Type And Composition : 1 C/O
    • Bezel Material : metal
    • [Ie] Rated Operational Current : 10 A, AC-15 || 10 A, DC-13
    • Contact Operation : standard
    • Operator Position Information : 2 positions
    • Light Source : incandescent bulb
    • Light Block Supply : without supply
    • Mounting Diameter : 30 mm
    • Light Block Supply : full voltage
    • Operator Profile : mushroom Ø 41 mm
    • Type Of Operator : push-pull
    • Cap/Operator Or Lens Colour : red
    • Size : 30 mm
    • Bulb Base : BA 9s
    • Device Presentation : complete product
  • Specifications
    • Operator Additional Information : screw-on plastic
    • Range Of Product : Harmony 9001K
    • Product Or Component Type : illuminated push-button
    • Device Short Name : K
