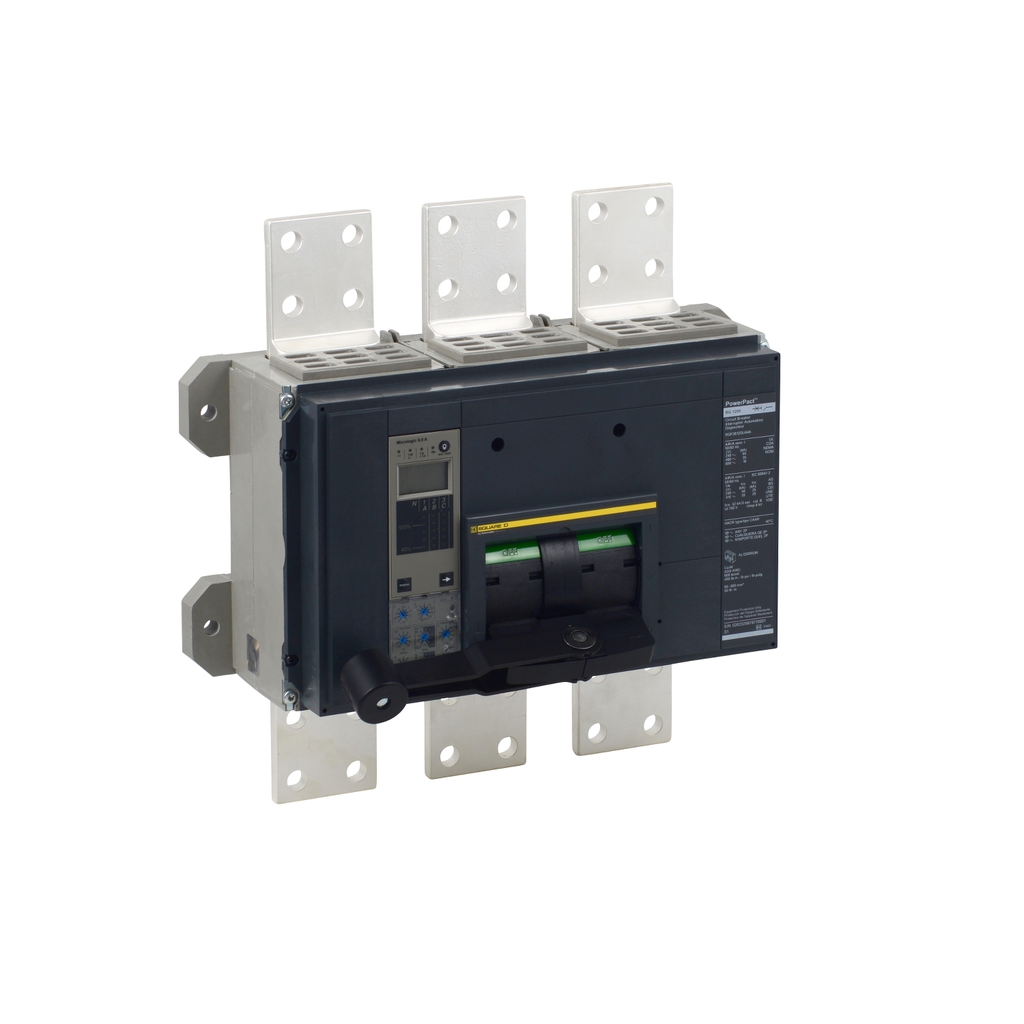

PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Mi

• Uimp Rated Impulse Withstand Voltage
• 8 kV IEC 60947-2
• Mounting Mode
• unit mount busbar)
• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
• Carbon Footprint Of The Installation Phase A5
• 6.683383027688105
• 7 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 43 kg CO2 eq.
• 42.859923332418305
• Standards
• UL
• CSA
• NEMA
• NMX J-266
• IEC 60947-2
• Ue Rated Operational Voltage
• 600 V AC 50/60 Hz UL 489
• Ui Rated Insulation Voltage
• 750 V IEC 60947-2
• Electrical Connection
• busbar connection, line
• busbar connection, load
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 154 kg CO2 eq.
• 153.97247060998086
• Accessories
• S29450
• S29452
• S32631
• MPRPAF
• S33929
• S33997
• S33998
• Ics Rated Service Breaking Capacity
• 35 kA 240 V AC 50/60 Hz IEC 60947-2
• 25 kA 380/415 V AC 50/60 Hz IEC 60947-2
• 25 kA 380/415 V AC 50/60 Hz IEC 60
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 2 895 kg CO2 eq.
• 2894.5288164904564
• Number Of Slots
• 2 auxiliary switch OF plug-in)
• 1 alarm switch SD plug-in)
• 1 voltage release MN o
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 9.70015753575963
• 10 kg CO2 eq.
• Tightening Torque
• 68-68 N.m 50-400 mm² (AWG 1/0...750 kcmil)
• 68-68 N.m 50-150 mm² (2 x AWG 1/0...2 x 300 kcmil)
• 68-68 N.m 50-150 mm² (2
• Operating Altitude
• < 6561.68 ft (2000 m) without derating
• 13123.36 ft (4000 m) with derating
• Suitability For Isolation
• yes IEC 60947-2
• Trip Unit Technology
• electronic, ammeter, MicroLogic 6.0 A, LSIG
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Awg Gauge
• AWG 3/0...750 kcmil aluminium/copper
• Local Signalling
• alarm 1 LED yellow)long-time pick up)
• 1 LED red)long-time pick up)
• 1 LED
• Product Certifications
• UL
• CSA
• NOM

• Physical Attributes
• Wire Stripping Length : 35 mm
• Complementary Attributes
• Line Rated Current : 2000-2000 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-10
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 153.972470609981
• Distribution Carbon Footprint : 9.70015753575963
• Installation Carbon Footprint : 6.68338302768811
• Use Carbon Footprint : 2894.52881649046
• End Of Life Carbon Footprint : 42.8599233324183
• Legacy Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2206034_V2
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1909
• Rohs Eur Full Compliance Status : Compliant with Exemptions
• China Rohs In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Circuit Breaker Application : HACR rated
• Continuous Current Rating : 100 %
• Control Type : operating handle
• Device Application : distribution
• Halogen Free Status : Halogen free plastic parts product
• Mounting Support : busbar
• Network Frequency : 50/60 Hz
• Package Weight Lbs : 33.566 kg
• Poles Description : 3P
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : circuit breaker
• Quality Labels : CE
• Quantity Per Set : 1
• Range : PowerPact
• Returnability : Yes
• Sustainable Packaging : No
• Terminal Identifier : AL2500RK
• Total Lifecycle Carbon Footprint : 3 108 kg CO2 eq.
• Trip Unit Name : MicroLogic 6.0 A
• Utilisation Category : category A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 3107.7447509963035
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : circuit breaker
• Environment Attributes
• Take Back : No
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 3107.7447509963
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -50-85 °C
• Circularity Profile : ENVEOLI2206034_V2
• Environmental Disclosure : ENVPEP2206034_V2
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free plastic parts product
• Ip Degree Of Protection : IP40
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
• Height : 16.24 in
• Width : 16.53 in
• Depth : 14.49 in
• Batteries & Runtime Attributes
• Removable Battery : YES
