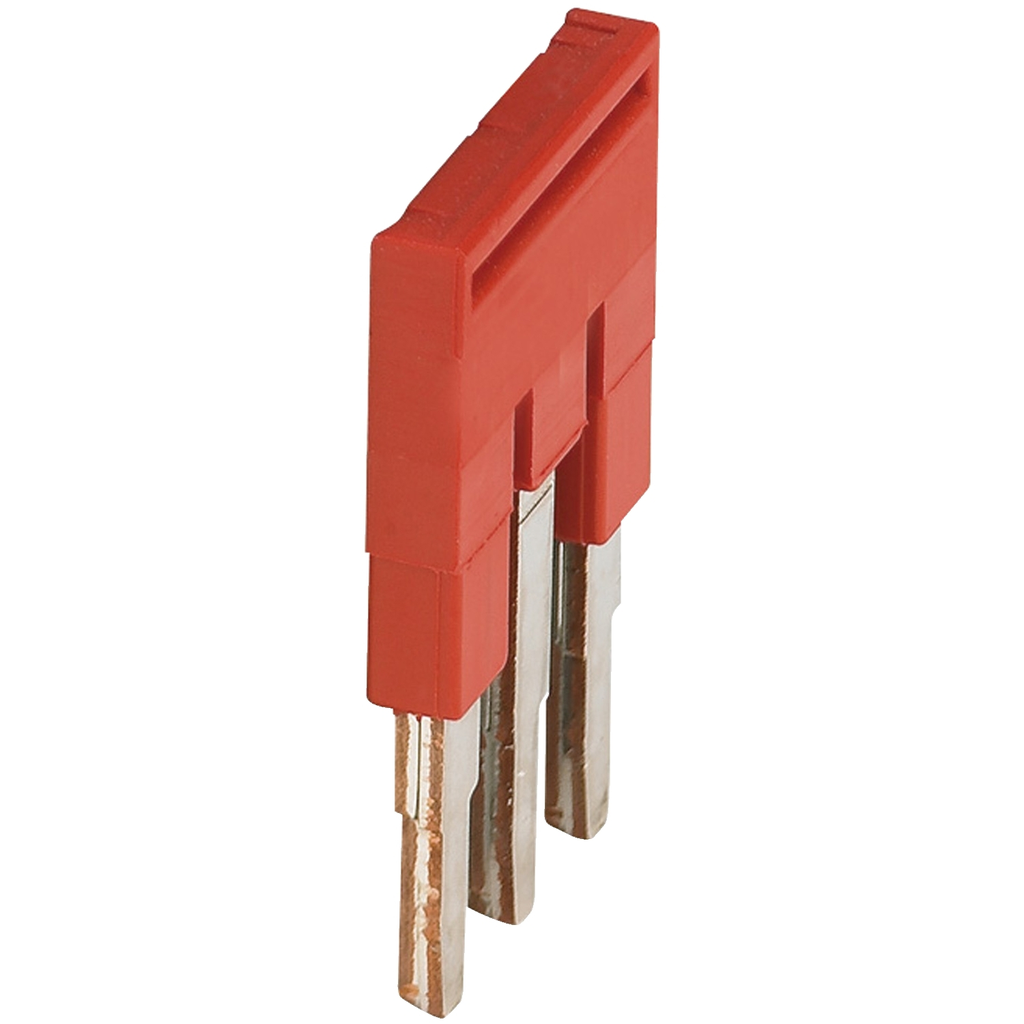

Linergy NSYTR plug-in bridge for terminal block. It has red surface treatment. It provides 3 ways for 2.5mm² terminals. It is compatible with TRV screw terminal, TRH IDC, TRP push-in and TRR spring terminal block. Sold in lots of 50 units.

• Features
• Red surface treatment finishing
• It provides 3 ways for 2.5mm² terminals
• spring terminals significantly reduce wiring time
• spring terminals eliminate the need for regular re-tightening
• Technology allows the connection of flexible conductors with or without cable ends

• Physical Attributes
• Color : Red
• Important Information Attributes
• Number Of Terminals : 3, 4, 2
• Terminal Block Level : 2, 3, 1
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-15
• WEEE Applicability : Component
• WEEE Scope : Out
• Legacy WEEE Scope : Out
• WEEE Exclusion Rationale : Component not in scope – non independent function
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : Yes
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Compliant
• ROHS EUR Full Compliance Status Id : COMPLIANT
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Cable Cross Section : 2.5-2.5 mm²
• Device Short Name : TRA
• Halogen Free Status : Halogen free plastic parts product
• Number Of Ways : 3 ways
• Package Weight Lbs : 2.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : plug-in bridge
• Quantity Per Set : set of 50
• Range : Linergy
• Range Of Product : Linergy
• Returnability : Yes
• Sustainable Packaging : No
• Accessory Separate Part Category2 : connection accessory
• Medium Desc : Plug-in bridge, Linergy TR, 3 points, for 2.5mm² terminal blocks, red, 3 way, set of 50
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1304013EN
• Global Commercial Status : Commercialised
• Product Name : Linergy TR
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Compliant
• Product Compatibility : TRV screw terminal terminal block, TRP push-in terminal block, TRR spring terminal terminal block, TRH IDC terminal block
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Halogene Performance : Halogen free plastic parts product
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Silicon Free : Yes
• Environmental Disclosure : ENVPEP1304013EN
• Halogen Content Performance : Halogen free plastic parts product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1304013EN
• General Attributes
• Product Or Component Type : plug-in bridge
• Range Of Product : Linergy
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Input Attributes
• Number Of Measurement Input : 3, 1, 4, 6, 2
• Specifications
• Country of Origin : United States
