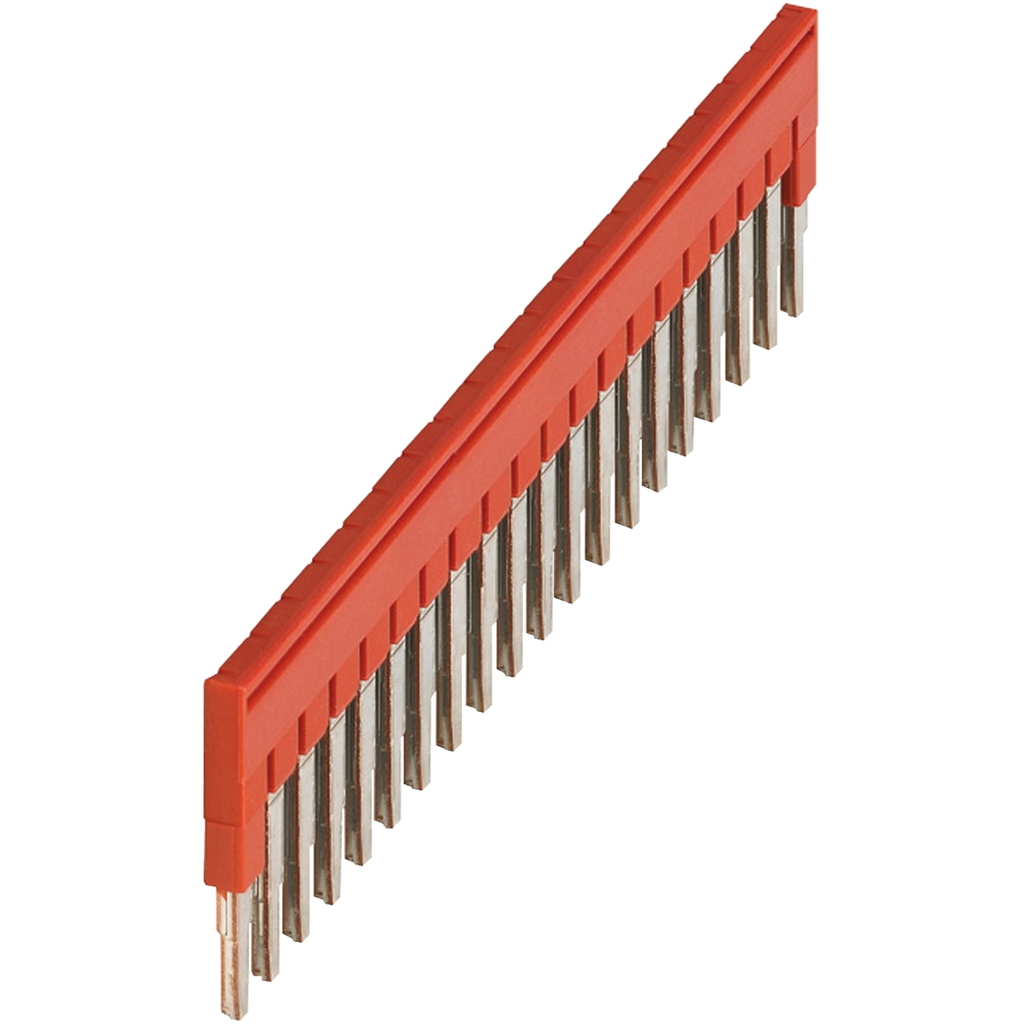

Plug-in bridge, Linergy TR, 20 points, for 2.5mm² terminal blocks, red, 20 way, set of 10

Plug-in Bridge 20pts for 2,5m

SQDNSYTRAL220 NSYTRAL220 3606480534126
12.33 / EA
http://schema.org/OutOfStock
Mayer-DDS-Plug-in bridge, Linergy TR, 20 points, for 2.5mm² terminal blocks, red, 20 way, set of 10-1
  • Number of Terminations: 2, 3, 4
  • Warranty Length: 18 mth
Linergy NSYTR plug-in bridge for terminal block. It has red surface treatment. It provides 20 ways for 2.5mm² terminals. It is compatible with TRV screw terminal, TRH IDC, TRP push-in and TRR spring terminal block. Sold in lots of 10 units. It is compliant with Green Premium (RoHS/REACH).
QTY
  • Product Description
  • Specifications
Linergy NSYTR plug-in bridge for terminal block. It has red surface treatment. It provides 20 ways for 2.5mm² terminals. It is compatible with TRV screw terminal, TRH IDC, TRP push-in and TRR spring terminal block. Sold in lots of 10 units. It is compliant with Green Premium (RoHS/REACH).
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1304013EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Circularity Profile : N/A
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Halogen Content Performance : Halogen free plastic parts product
  • Specifications
    • Product Compatibility : TRV screw terminal terminal block || TRP push-in terminal block || TRR spring terminal terminal block || TRH IDC terminal block
    • Accessory / Separate Part Category : connection accessory
    • Product Or Component Type : plug-in bridge
    • Product Name : Linergy TR
    • Range : Linergy
    • Number Of Ways : 20 ways
    • Device Short Name : TRA
  • Complementary
    • Number Of Terminals : 3 || 4 || 2
    • Number Of Measurement Input : 3 || 1 || 4 || 6 || 2
    • Cable Cross Section : 2.5-2.5 mm²
    • Quantity Per Set : set of 10
    • Color : Red
  • Contractual warranty
    • Warranty : 18 months
