SQUARE D

Plug-in bridge, Linergy TR, 10 points, for 4mm² terminal blocks, blue, 10 way, set of 10

TERMINAL BLOCK JUMPER IEC + OP

SQDNSYTRAL410BL NSYTRAL410BL 3606480534188
4.49 / EA
http://schema.org/OutOfStock

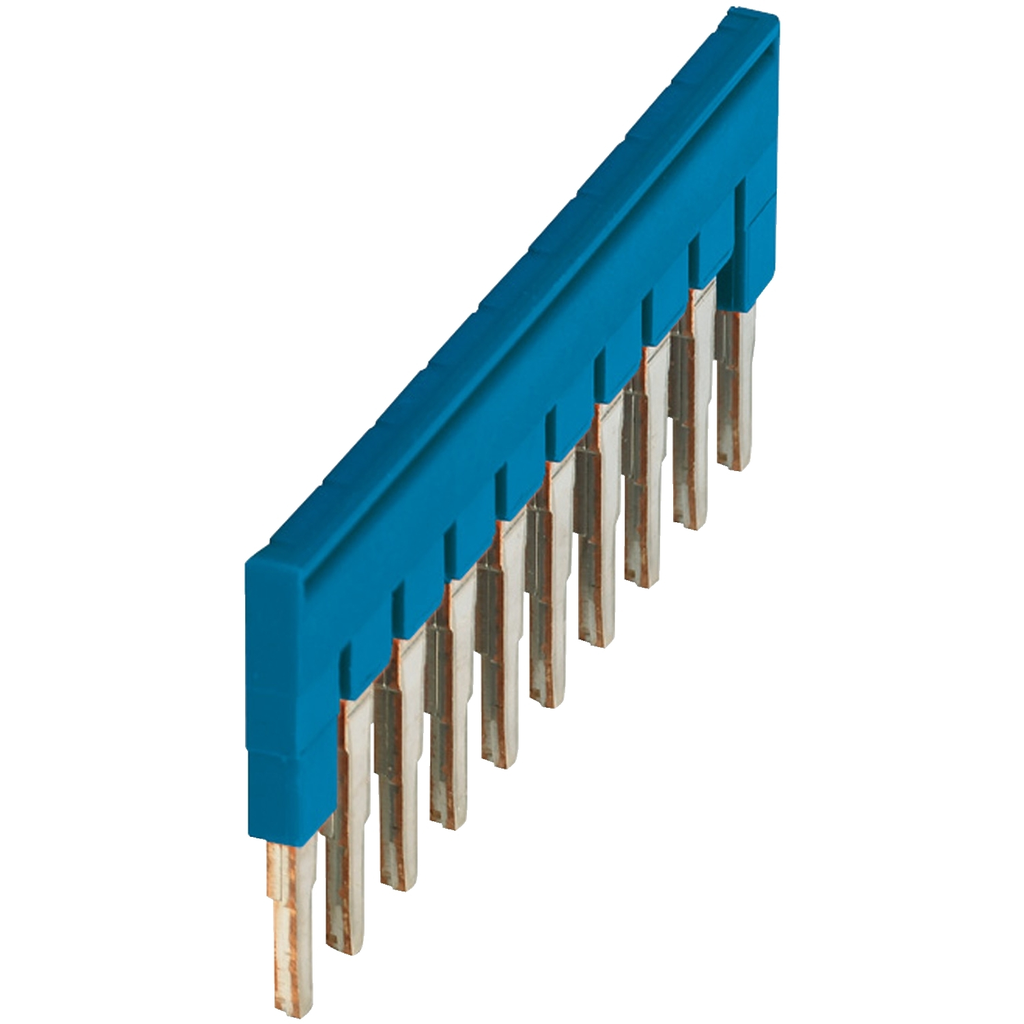

Mayer-DDS-Plug-in bridge, Linergy TR, 10 points, for 4mm² terminal blocks, blue, 10 way, set of 10-1
Linergy NSYTR plug-in bridge for terminal block. It has blue surface treatment. It provides 10 ways for 4mm² terminals. It is compatible with TRP screw terminal, TRV Push-in terminal and TRR spring terminal block. Sold in lots of 10 units.
QTY
  • Product Description
  • Specifications
Linergy NSYTR plug-in bridge for terminal block. It has blue surface treatment. It provides 10 ways for 4mm² terminals. It is compatible with TRP screw terminal, TRV Push-in terminal and TRR spring terminal block. Sold in lots of 10 units.
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPE0010402_3D-CAD&p_File_name=MCADPE0010402_2D-top.dxf
  • Physical Attributes
    • Color : Blue
  • Important Information Attributes
    • Number Of Terminals : 4, 3, 2
    • Terminal Block Level : 2, 1
    • Medium Desc : Plug-in bridge, Linergy TR, 10 points, for 4mm² terminal blocks, blue, 10 way, set of 10
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-10-15
    • Global Commercial Status : Commercialised
    • Html Descr : Plug-in BridgeBlue10-PoleFor use with NSYTRV42 Passthrough Terminal Block
    • Return Indicator : Y
    • Stocking Flag : Y
    • Manufacturer : Schneider Electric
    • Weee Applicability : Component
    • Weee Scope : Out
    • Legacy Weee Scope : Out
    • Weee Exclusion Rationale : Component not in scope – non independent function
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Cable Cross Section : 4-4 mm²
    • Device Short Name : TRA
    • Halogen Free Status : Halogen free plastic parts product
    • Number Of Ways : 10 ways
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Name : Linergy TR
    • Product Or Component Type : plug-in bridge
    • Quantity Per Set : set of 10
    • Range : Linergy
    • Range Of Product : Linergy
    • Returnability : Yes
    • Sustainable Packaging : No
    • Accessory Separate Part Category : connection accessory
    • Silicone Free : Yes
    • Pep Code : ENVPEP1304013EN
  • Environment Attributes Main
    • China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Product Compatibility : TRV screw terminal terminal block, TRP push-in terminal block, TRR spring terminal terminal block, TRH IDC terminal block
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Halogene Performance : Halogen free plastic parts product
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Silicon Free : Yes
    • Environmental Disclosure : ENVPEP1304013EN
    • Eu Rohs Directive : Compliant
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1304013EN
  • General Attributes
    • Product Or Component Type : plug-in bridge
    • Range Of Product : Linergy
  • ETIM
    • ETIM 8 : EC000489
    • ETIM 9 : EC000489
  • Input Attributes
    • Number Of Measurement Input : 1, 6, 4, 3, 2
