SQUARE D

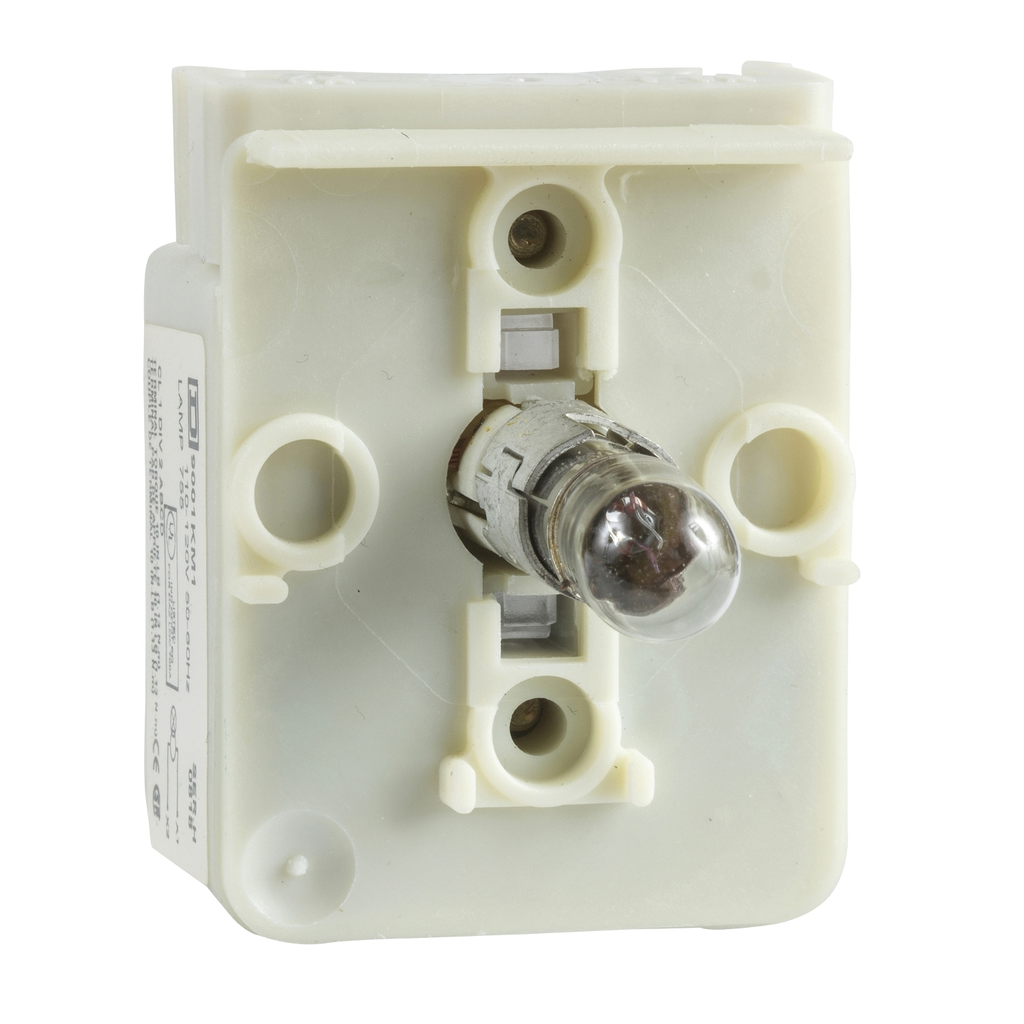

Light block, Harmony 9001K, Harmony 9001SK, 30mm, incandescent bulb, 12-14V

SQD 9001KM32 PILOT LIGHT MODUL

SQD9001KM32 9001KM32 785901726418
114.54 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Light block, Harmony 9001K, Harmony 9001SK, 30mm, incandescent bulb, 12-14V-1
  • Light Source: Incandescent Bulb
  • Warranty Length: 18 mth
This light block is a separate component for Harmony 9001K pilot lights and illuminated pushbuttons. The light source is a BA 9s incandescent bulb, supplied with 12V-14V. It complies with many international standards and certifications, such as NEMA, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, and EN/IEC 60947-5-1. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
QTY
  • Product Description
  • Features
  • Specifications
This light block is a separate component for Harmony 9001K pilot lights and illuminated pushbuttons. The light source is a BA 9s incandescent bulb, supplied with 12V-14V. It complies with many international standards and certifications, such as NEMA, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14, and EN/IEC 60947-5-1. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
  • Features
    • Improves security thanks to finger-safe contact blocks and light modules
    • Single screw Contact Block Fastening
    • Large metal set of accessories to customize your product
    • Automatic self-grounding operators without additional wiring
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Size : 30 mm
  • Conformance Attributes
    • Product Certifications : NEMA, UL 508
    • Standards : IEC 60947-5-4, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, JIS C 4520, UL 508, JIS C 852
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Light Block Supply : full voltage, direct via integral resistance
    • Range Of Product : Harmony 9001K, Harmony 9001SK
    • Us Rated Supply Voltage2 : 12...14 V, 12 V AC/DC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bulb Base : BA 9s
    • Compatibility Code : 9001K
    • Device Short Name : 9001K
    • Electrical Shock Protection Class : class II conforming to IEC 61140
    • Light Source : incandescent bulb
    • Package Weight Lbs : 63.503 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : light block
    • Protective Treatment : TC
    • Returnability : No
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Sustainable Packaging : Yes
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Medium Desc : Light block, Harmony 9001K, Harmony 9001SK, 30mm, incandescent bulb, 12-14V
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2503027EN
    • Global Commercial Status : Commercialised
    • Us Rated Supply Voltage5 : 12 V AC/DC
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • IP Degree Of Protection : IP10 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Range Of Product : Harmony 9001K, Harmony 9001SK
    • Product Or Component Type : light block
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
