Pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel, white, 30mm, LED white, 24-28V

PILOT LIGHT LED 30MM SK +OPTIO

SQD9001SKP35LWW31 9001SKP35LWW31 785901863502
164.29 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel, white, 30mm, LED white, 24-28V-1
  • Bezel Material: Plastic
  • Lens Type: Fresnel, Fresnel Plastic
  • Warranty Length: 18 mth

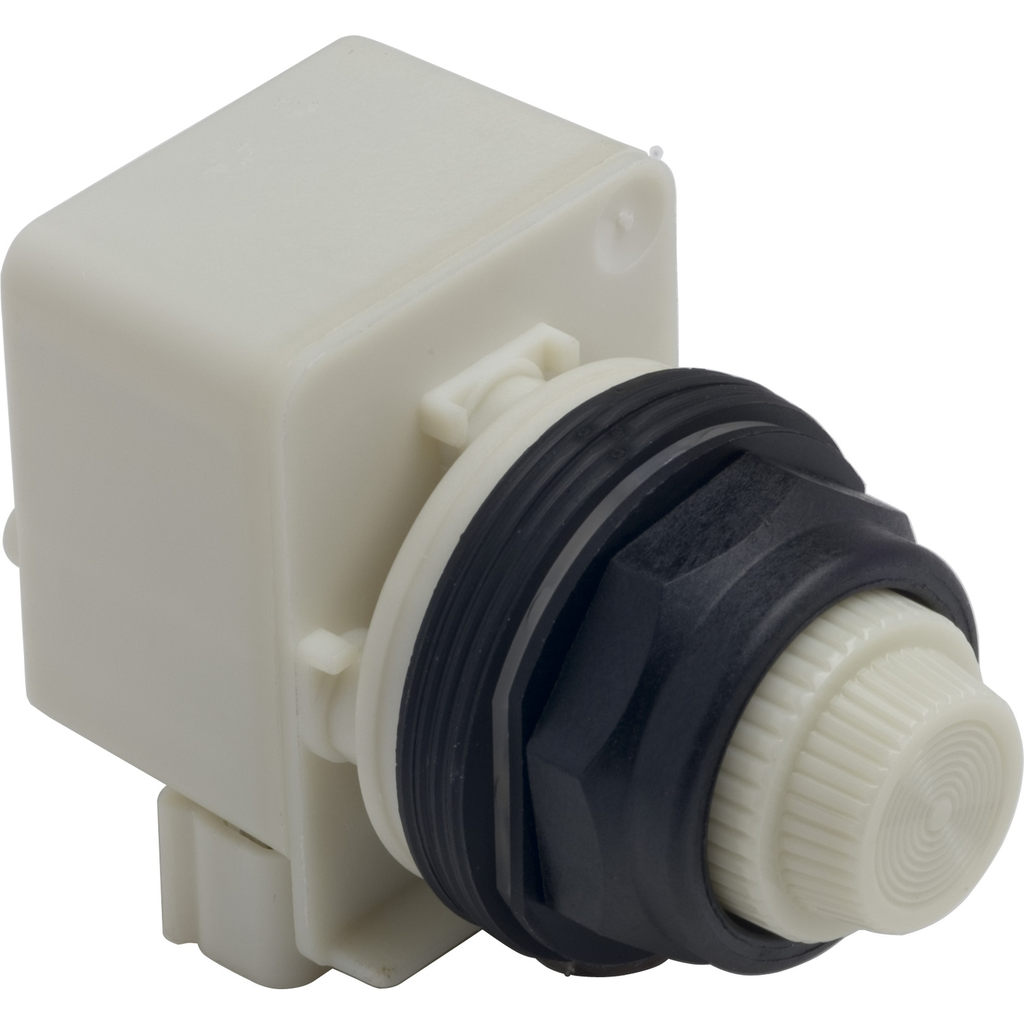

This Harmony 9001SK, white pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
QTY
  • Product Description
  • Specifications
This Harmony 9001SK, white pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Environment
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710019EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710019EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 24...28 V
    • [Us] Rated Supply Voltage : 24...28 V AC/DC
    • Light Source : White LED
    • Bezel Material : plastic
    • Lens Material : polycarbonate
    • Light Source Colour : white
    • Light Source : LED
    • Mounting Diameter : 30 mm
    • Operating Position : any position
    • Operating Mode : normal
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : white
    • Cad Overall Width : 54 mm
    • Cad Overall Depth : 42 mm
    • Size : 30 mm
    • Cad Overall Height : 70 mm
    • Bulb Base : BA 9s
    • Device Presentation : complete product
    • Lens Type : fresnel
  • Specifications
    • Range Of Product : Harmony 9001SK
    • Light Block Supply : direct 24 V || direct 28 V
    • Product Or Component Type : pilot light
    • Lens Type : fresnel plastic
