PILOT LIGHT 28V 30MM TYPE K +OPTIONS

PILOT LIGHT 28V 30MM TYPE K +OPTIONS

SQD9001KP35LGG6 9001KP35LGG6 785901969280
153.00 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Domed Glass
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.134 kg, 0.30 lb

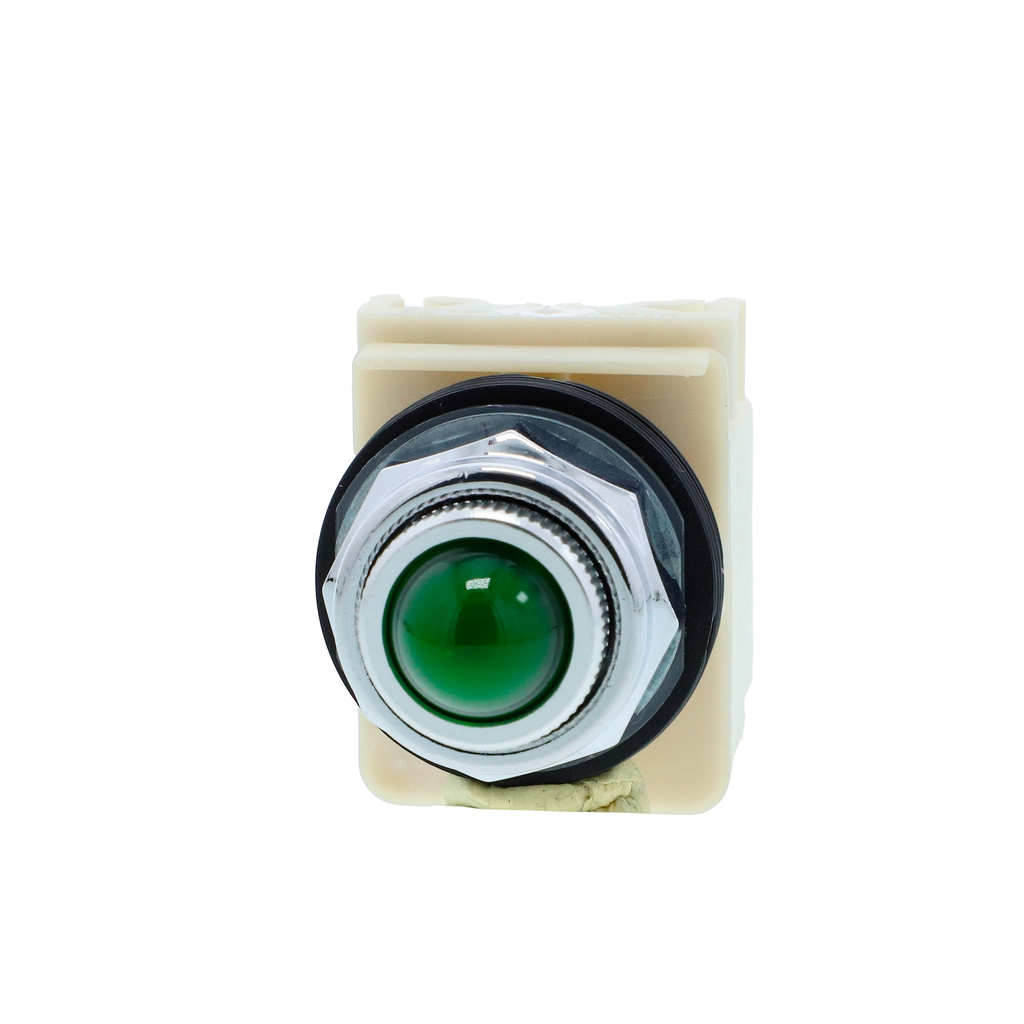

This Harmony 9001K, green pilot light with integral LED and glass dome is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001K, green pilot light with integral LED and glass dome is supplied with 24V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Country Of Origin : MX
    • GTIN : 00785901969280
    • Returnability : No
    • Discount Schedule : CS1
    • Category : 21426 - 9001 K (NOT KA,KM,KX)
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
  • Main
    • Range Of Product : Harmony 9001K
    • Device Short Name : 9001K
    • Product Or Component Type : Pilot light
  • Complementary
    • Product Weight : 0.30 lb(US) (0.134 kg)
    • Shape Of Signaling Unit Head : Round
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Device Presentation : Complete product
    • Shape Of Screw Head : Cross slotted
    • Operating Position : Any position
    • Cad Overall Depth : 1.65 in (42 mm)
    • [Us] Rated Supply Voltage : 24...28 V AC/DC
    • Bezel Material : Chromium plated metal
    • Mounting Diameter : 1.18 in (30 mm)
    • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) IEC 60947-1
    • Cad Overall Width : 2.13 in (54 mm)
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • Lens Type : Domed glass
    • Cad Overall Height : 2.76 in (70 mm)
    • Ui Rated Insulation Voltage : 250 V 2)IEC 60947-1
    • Cap/Operator Or Lens Colour : Green
    • Uimp Rated Imp Wstd Voltage : 2.5 kV IEC 60947-1
    • Bulb Base : BA 9s
    • Light Source : Green LED
    • Light Block Supply : Direct 24...28 V AC/DC
  • Environment
    • IP Degree Of Protection : IP66 conforming to IEC 60529
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Product Certifications : NEMA || UL 508
    • Overvoltage Category : Class II conforming to IEC 61140
    • Protective Treatment : TC
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Standards : EN/IEC 60947-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C 852 || JIS C8201-5-1 || UL 508 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
