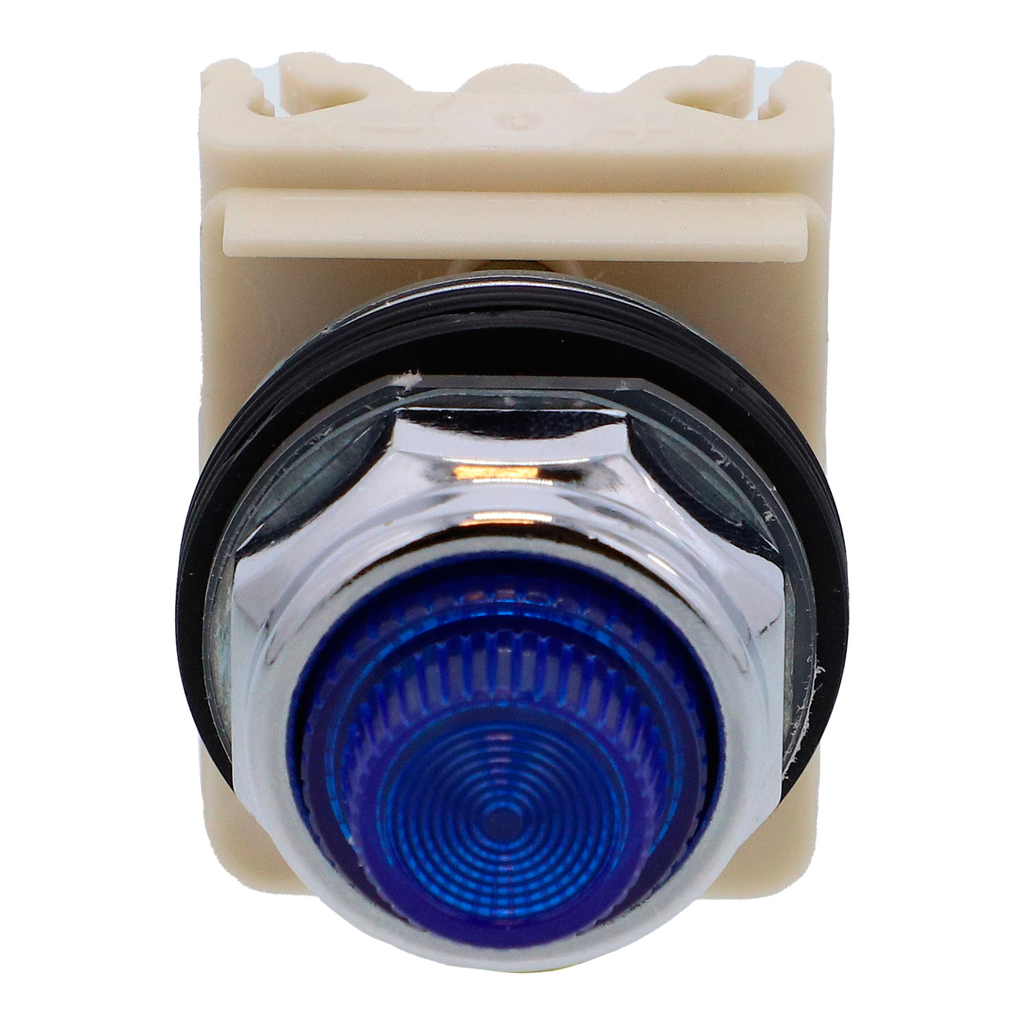

PILOT LIGHT 28V 30MM TYPE K +OPTIONS

PILOT LIGHT 28V 30MM TYPE K +OPTIONS

SQD9001KP35LLL31 9001KP35LLL31 785901457480
102.00 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: NEMA, UL 508
  • Color: Blue
  • Lens Type: Domed Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Weight: 0.134 kg, 0.30 lbs
  • Additional Information
  • Specifications
    • Main
      • Range Of Product : Harmony 9001K
      • Product Or Component Type : Pilot light
      • Device Short Name : 9001K
    • Complementary
      • Bezel Material : Chromium plated metal
      • Mounting Diameter : 1.18 in (30 mm)
      • Shape Of Signaling Unit Head : Round
      • Lens Type : Domed plastic
      • Cap/Operator Or Lens Colour : Blue
      • Light Source : Blue LED
      • Bulb Base : BA 9s
      • Light Block Supply : Direct 24...28 V AC/DC
      • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
      • Tightening Torque : 7.08 lbf.in (0.8 N.m) IEC 60947-1
      • Shape Of Screw Head : Cross slotted
      • Operating Position : Any position
      • Ui Rated Insulation Voltage : 250 V 2)IEC 60947-1
      • Uimp Rated Imp Wstd Voltage : 2.5 kV IEC 60947-1
      • Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
      • Ith Cnvtl Free Air Therm Crrt : 10 A
      • Cad Overall Width : 2.13 in (54 mm)
      • Cad Overall Height : 2.76 in (70 mm)
      • Cad Overall Depth : 1.65 in (42 mm)
      • Product Weight : 0.30 lb(US) (0.134 kg)
    • Environment
      • Standards : EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || JIS C 852 || JIS C8201-1
      • Product Certifications : UL 508 || NEMA
      • Protective Treatment : TC
      • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
      • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
      • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
      • Shock Resistance : 50 gn IEC 60068-2-27
      • Overvoltage Category : Class II IEC 61140
      • IP Degree Of Protection : IP66 IEC 60529
      • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
    • Ordering And Shipping Details
      • Category : 21426 - 9001 K (NOT KA,KM,KX)
      • Discount Schedule : CS1
      • GTIN : 00785901457480
      • Nbr. Of Units In Pkg. : 1
      • Returnability : No
      • Country Of Origin : MX
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Contractual Warranty
      • Warranty : 18 months
