The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and

• Connections Terminals
• screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Light Block Supply
• direct 24...28 V AC/DC
• Uimp Rated Impulse Withstand Voltage
• 2.5 kV IEC 60947-1
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Standards
• JIS C 852
• IEC 60947-1
• IEC 60947-5-1
• UL 508
• IEC 60947-5-4
• JIS C8201-5-1
• CSA C22.2 No 14
• JIS C8201-1
• Ui Rated Insulation Voltage
• 250 V 2)IEC 60947-1
• Ip Degree Of Protection
• IP66 IEC 60529
• Electrical Shock Protection Class
• class II conforming to IEC 61140
• Nema Degree Of Protection
• NEMA 1
• NEMA 12
• NEMA 13
• NEMA 2
• NEMA 3
• NEMA 3R
• NEMA 4
• NEMA 4X
• Vibration Resistance
• 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Us Rated Supply Voltage
• 24...28 V AC/DC
• Tightening Torque
• 0.8-0.8 N.m IEC 60947-1
• Short Circuit Protection
• 10 A cartridge fuse IEC 60947-5-1
• Lens Type
• fresnel plastic
• Shock Resistance
• 50 gn IEC 60068-2-27
• Product Certifications
• UL 508
• NEMA

• Physical Attributes
• Cad Overall Depth : 42 mm
• Cad Overall Height : 70 mm
• Cad Overall Width : 54 mm
• Cap Operator Or Lens Color : amber
• Size : 30 mm
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• ETIM 10 : EC000272
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic
• Bulb Base : BA 9s
• Cap Operator Or Lens Color : amber
• Compatibility Code : 9001SK
• Contacts Type And Composition : 1 C/O
• Device Short Name : 9001SK
• Lens Material : polycarbonate
• Light Source : incandescent
• Mounting Diameter : 30 mm
• Operating Mode : push-to-test
• Operating Position : any position
• Package Weight Lbs : 226.796 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility

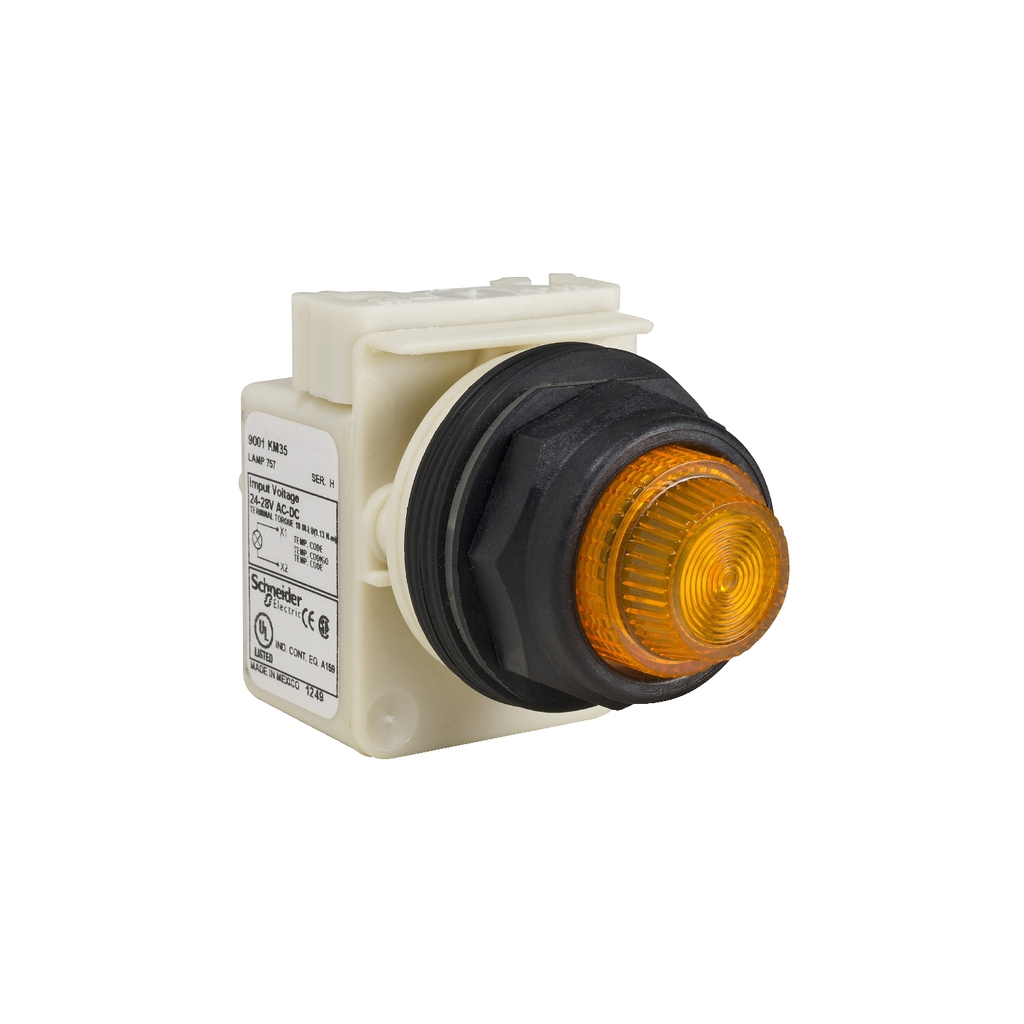

• Product Or Component Type : push-to-test pilot light
• Protective Treatment : TC
• Range Of Product : Harmony 9001SK
• Returnability : Yes
• Shape Of Screw Head : cross slotted
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Ith Conventional Free Air Thermal Current : 10 A
• Relationshiptype : cross-selling relationship
• General Attributes
• Product Or Component Type : push-to-test pilot light
• Range Of Product : Harmony 9001SK
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=499785&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
