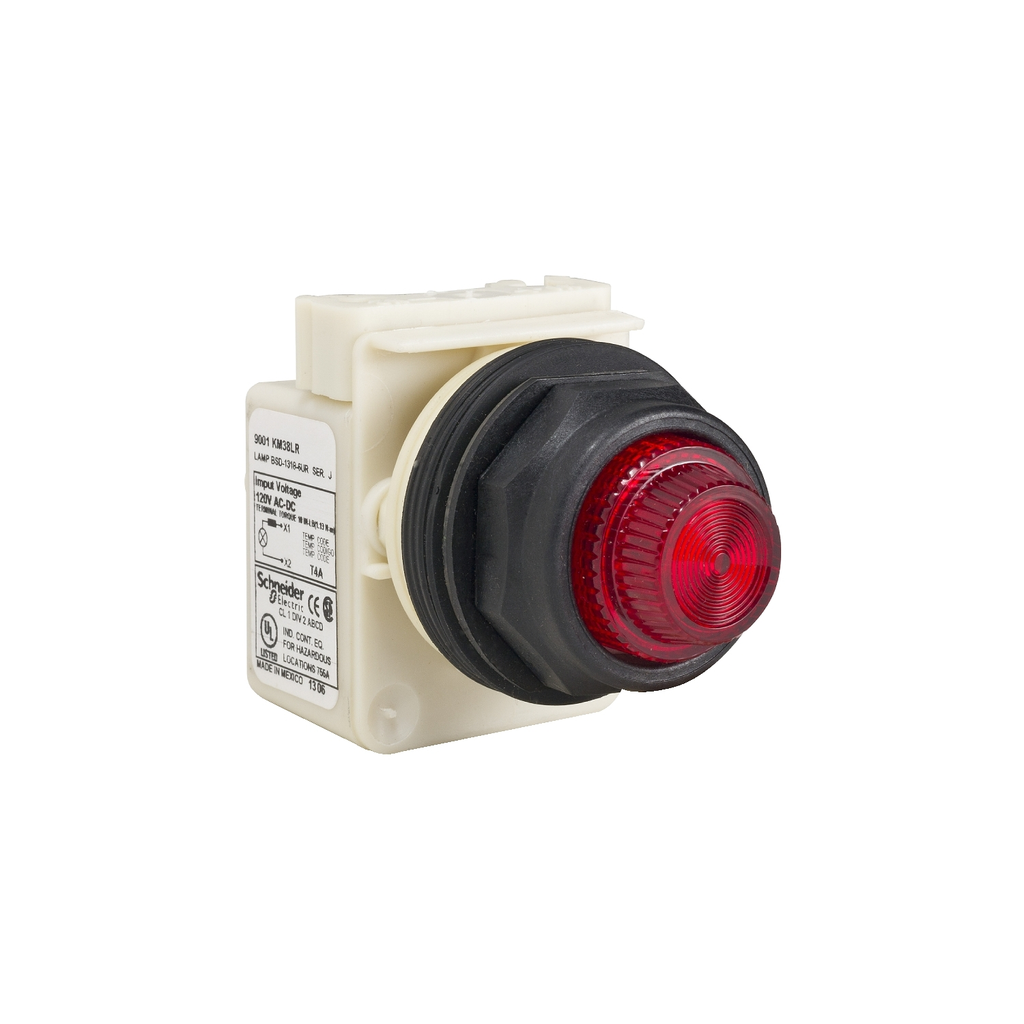

This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It works at a rated voltage o

• Connections Terminals
• screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Light Block Supply
• direct 24...28 V AC/DC
• Light Source
• Red LED
• Uimp Rated Impulse Withstand Voltage
• 2.5 kV IEC 60947-1
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Standards
• UL 508
• JIS C 852
• IEC 60947-5-1
• JIS C8201-5-1
• IEC 60947-5-4
• IEC 60947-1
• CSA C22.2 No 14
• JIS C8201-1
• Ui Rated Insulation Voltage
• 250 V 2)IEC 60947-1
• Ip Degree Of Protection
• IP66 IEC 60529
• Electrical Shock Protection Class
• class II conforming to IEC 61140
• Nema Degree Of Protection
• NEMA 1
• NEMA 12
• NEMA 13
• NEMA 2
• NEMA 3
• NEMA 3R
• NEMA 4
• NEMA 4X
• Vibration Resistance
• 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Us Rated Supply Voltage
• 24...28 V AC/DC
• Tightening Torque
• 0.8-0.8 N.m IEC 60947-1
• Short Circuit Protection
• 10 A cartridge fuse IEC 60947-5-1
• Lens Type
• domed plastic
• Shock Resistance
• 50 gn IEC 60068-2-27
• Product Certifications
• NEMA
• UL 508

• Physical Attributes
• Cad Overall Depth : 42 mm
• Cad Overall Height : 70 mm
• Cad Overall Width : 54 mm
• Cap Operator Or Lens Color : red
• Light Source Color : red
• Size : 30 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Etim 10 : EC000272
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : Outside of Europe
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1930
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : Yes
• China Rohs Label : 1
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic
• Bulb Base : BA 9s
• Cap Operator Or Lens Color : red
• Compatibility Code : 9001SK
• Contacts Type And Composition : 1 C/O
• Device Short Name : 9001SK
• Lens Material : polycarbonate
• Light Source Color : red
• Mounting Diameter : 30 mm
• Operating Mode : push-to-test
• Operating Position : any position
• Package Weight Lbs : 226.796 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : push-to-test pilot light
• Protective Treatment : TC
• Range Of Product : Harmony 9001SK
• Returnability : No
• Shape Of Screw Head : cross slotted
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Ith Conventional Free Air Thermal Current : 10 A
• General Attributes
• Product Or Component Type : push-to-test pilot light
• Range Of Product : Harmony 9001SK
• ETIM
• ETIM 8 : EC000272
• ETIM 9 : EC000272
• Environment Attributes
• Take Back : No
• China Rohs Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
