PILOT LIGHT 28V 30MM SK +OPTIONS

PILOT LIGHT 28V 30MM SK +OPTIONS

SQD9001SKP35LYY31 9001SKP35LYY31 785901715207
102.00 / EACH
  • Bezel Material: Plastic
  • Color: Yellow
  • Lens Type: Fresnel Plastic

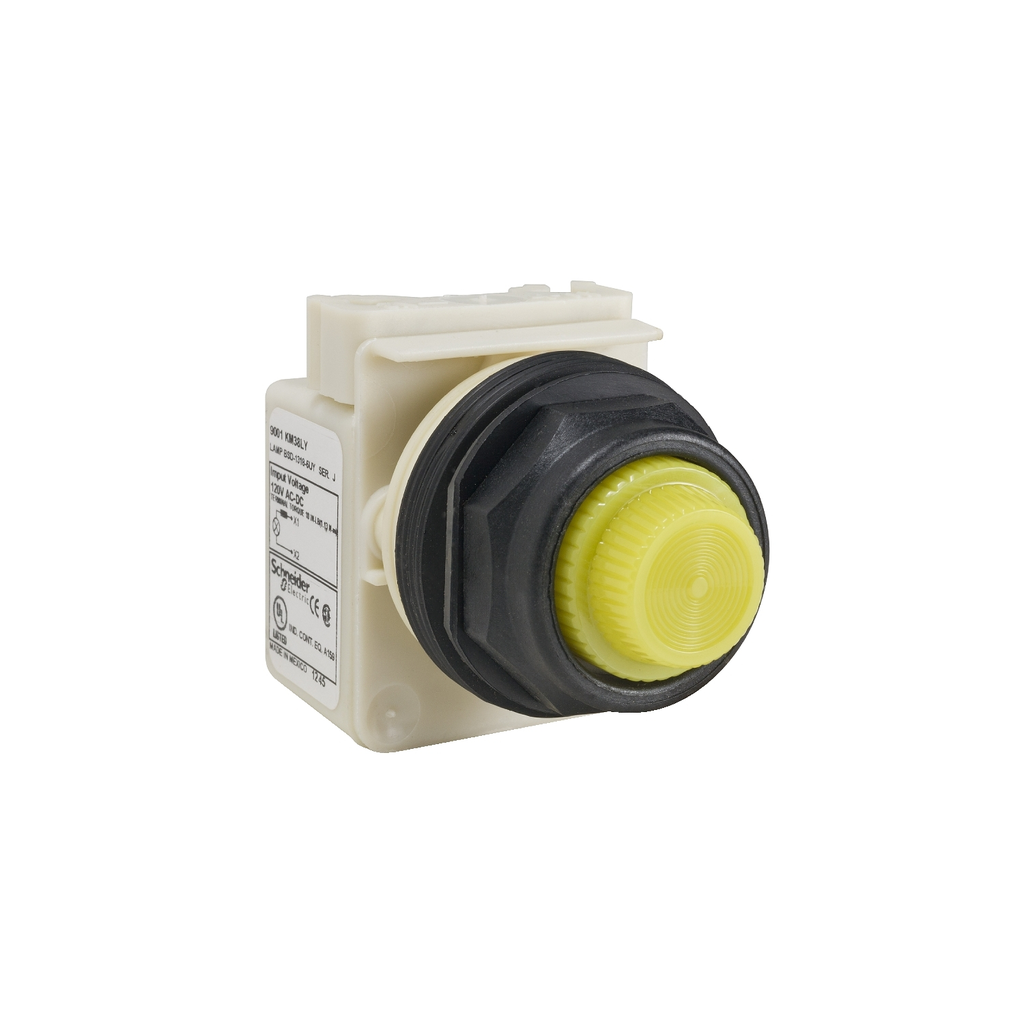

This Harmony 9001SK, yellow pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Product Description
  • Additional Information
This Harmony 9001SK, yellow pilot light with integral LED and plastic fresnel is supplied with 24V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
  • Specifications
    • Main
      • Product Or Component Type : Pilot light
      • Lens Type : Fresnel plastic
      • Light Block Supply : Direct 24 V || Direct 28 V
    • Complementary
      • Bezel Material : Plastic
      • Mounting Diameter : 1.18 in (30 mm)
      • Shape Of Signaling Unit Head : Round
      • Cap/Operator Or Lens Colour : Yellow
      • Light Source : Yellow LED
      • Bulb Base : BA 9s
      • [Us] Rated Supply Voltage : 24...28 V AC/DC
      • Operating Position : Any position
      • Operating Mode : Normal
      • Cad Overall Width : 2.13 in (54 mm)
      • Cad Overall Height : 2.76 in (70 mm)
      • Cad Overall Depth : 1.65 in (42 mm)
      • Device Presentation : Complete product
    • Environment
      • Protective Treatment : TC
      • IP Degree Of Protection : IP66
    • Ordering And Shipping Details
      • Category : 21429 - 9001 SK,SKY
      • Discount Schedule : CS1
      • GTIN : 00785901715207
      • Nbr. Of Units In Pkg. : 1
      • Returnability : No
      • Country Of Origin : MX
    • Offer Sustainability
      • Green Premium Status : Green Premium product
      • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
      • REACh Free Of SVHC : Yes
      • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
      • Toxic Heavy Metal Free : Yes
      • Mercury Free : Yes
      • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Contractual Warranty
      • Warranty : 18 months
