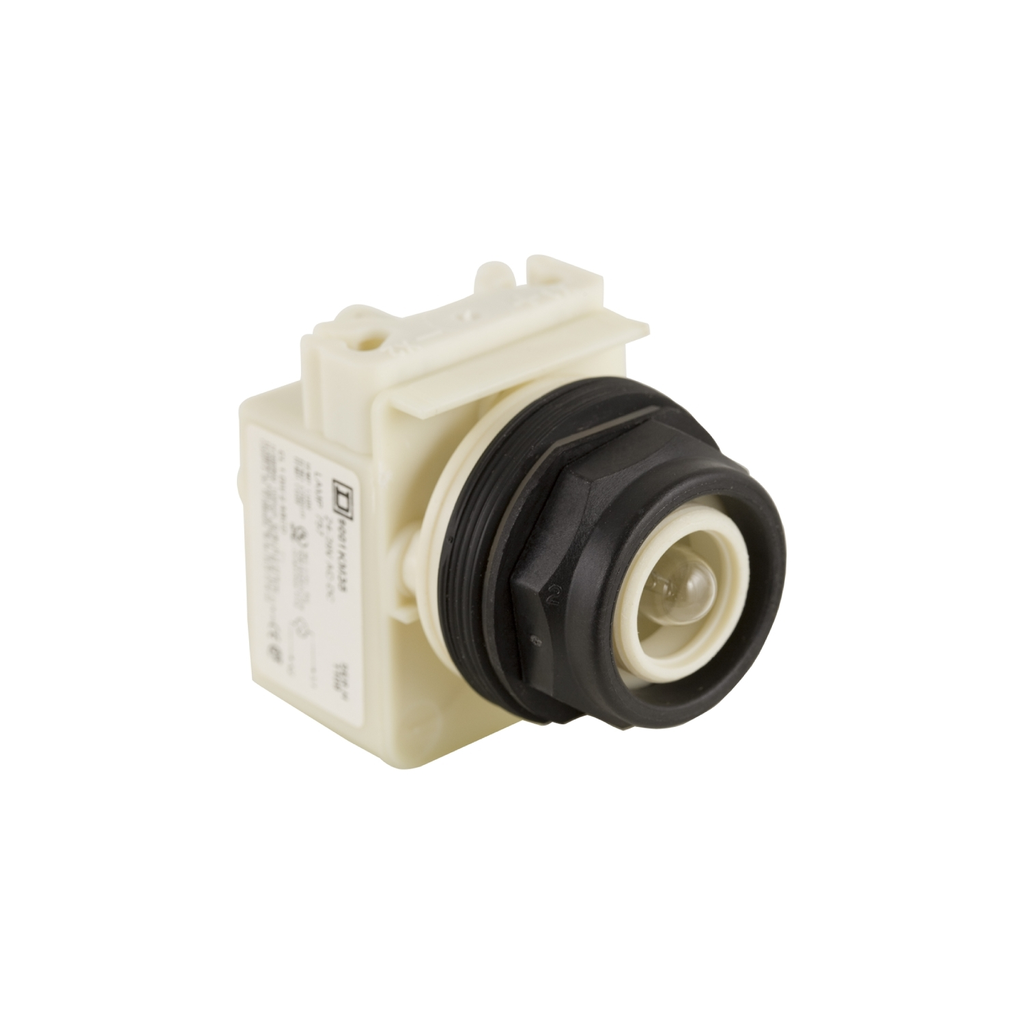

This single component pilot light with transformer provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : NEMA || UL 508
• Ambient Air Temperature For Operation : -25-70 °C
• Standards : JIS C 852 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || JIS C8201-1
• Shock Resistance : 50 gn IEC 60068-2-27
• Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP66 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
• Electrical Shock Protection Class : class II conforming to IEC 61140
• Protective Treatment : TC
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1710019EN
• Packaging Without Single Use Plastic : Yes
• Toxic Heavy Metal Free : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Circularity Profile : ENVEOLI1710019EN
• Take-Back : No
• Sustainable Packaging : Yes
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• [Us] Rated Supply Voltage : 277 V AC 50/60 Hz
• Mounting Diameter : 30 mm
• Light Block Supply : via integral transformer
• [Ith] Conventional Free Air Thermal Current : 10 A
• Short-Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
• Shape Of Signaling Unit Head : round
• Cap/Operator Or Lens Colour : without cap
• Net Weight : 0.181 kg
• [Uimp] Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
• Size : 30 mm
• Cad Overall Height : 70 mm
• Connections - Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Light Source : incandescent
• [Ui] Rated Insulation Voltage : 250 V 2)IEC 60947-1
• Bezel Material : plastic
• Operating Position : any position
• Tightening Torque : 0.8-0.8 N.m IEC 60947-1
• Cad Overall Width : 54 mm
• Cad Overall Depth : 42 mm
• Shape Of Screw Head : cross slotted
• Supply Frequency : 50...60 Hz
• Bulb Base : BA 9s
• Specifications
• Country of Origin : Mexico
• Width : 54 mm
• Height : 70 mm
• Weight : 0.181 kg
• Range Of Product : Harmony 9001SK
• Light Block Supply : via integral transformer 277 V AC 50/60 Hz 6 V)
• Product Or Component Type : head for pilot light
• Device Short Name : 9001SK
