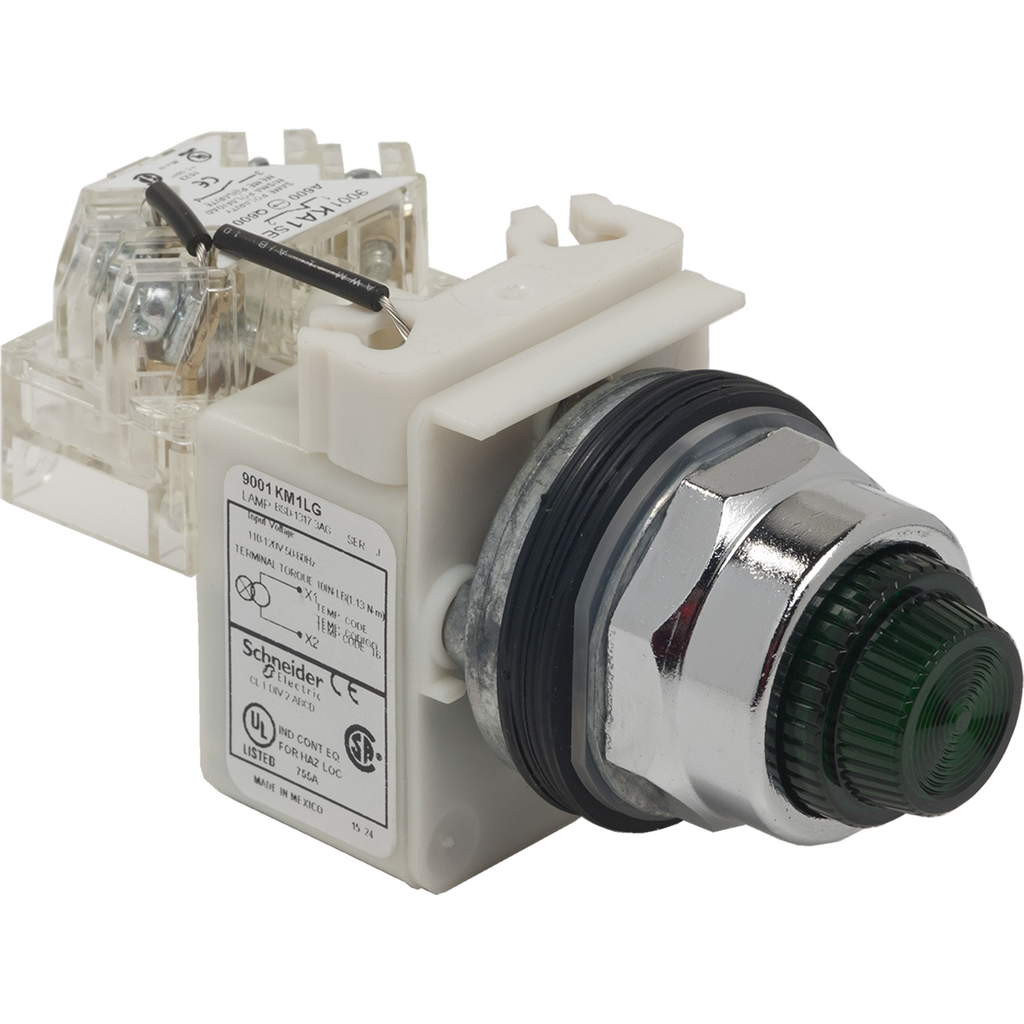

This illuminated green push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1LGG31_CAD&p_File_name=9001KT1LGG31_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1LGG31_CAD&p_File_name=9001KT1LGG31_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1LGG31_CAD&p_File_name=9001KT1LGG31_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1LGG31_CAD&p_File_name=9001KT1LGG31_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1LGG31_CAD&p_File_name=9001KT1LGG31_2D Right Side View.dxf
• Physical Attributes
• Cad Overall Depth : 42 mm
• Cad Overall Height : 70 mm
• Cad Overall Width : 54 mm
• Size : 30 mm
• Cap Operator Or Lens Color : green
• Light Source Color : green
• Conformance Attributes
• Product Certifications : UL 508, NEMA
• Standards : UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-5-1, JIS C 852, JIS C8201-1
• Complementary Attributes
• Ui Rated Insulation Voltage : 250 V 2)IEC 60947-1
• Uimp Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
• Us Rated Supply Voltage : 110...120 V
• Important Information Attributes
• Lens Type : fresnel, fresnel plastic
• Light Block Supply : via integral transformer 110...120 V AC 50/60 Hz 6 V), via integral transformer
• Light Source : LED, Green LED
• Medium Desc : Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel, green, 30mm, LED green, 110-120V
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Return Indicator : N
• Stocking Flag : Y
• Legacy Weee Scope : In
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Bezel Material : metal
• Bulb Base : BA 9s
• Compatibility Code : 9001K
• Contacts Type And Composition : 1 C/O
• Device Short Name : 9001K
• Lens Material : polycarbonate
• Mounting Diameter : 30 mm
• Operating Mode : push-to-test
• Operating Position : any position
• Overvoltage Category : class II conforming to IEC 61140
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : push-to-test pilot light
• Protective Treatment : TC
• Range Of Product : Harmony 9001K
• Returnability : No
• Shape Of Screw Head : cross slotted
• Shape Of Signaling Unit Head : round
• Shock Resistance : 50 gn IEC 60068-2-27
• Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
• Supply Frequency : 50...60 Hz
• Sustainable Packaging : Yes
• Tightening Torque : 0.8-0.8 N.m IEC 60947-1
• Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Cap Operator Or Lens Color : green
• Light Source Color : green
• Connections Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Ith Conventional Free Air Thermal Current : 10 A
• Pep Code : ENVPEP2503027EN
• Environment Attributes Main
• Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP66 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• General Attributes
• Product Or Component Type : push-to-test pilot light
• Range Of Product : Harmony 9001K
• ETIM
• ETIM 8 : EC000272
• ETIM 9 : EC000272
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
