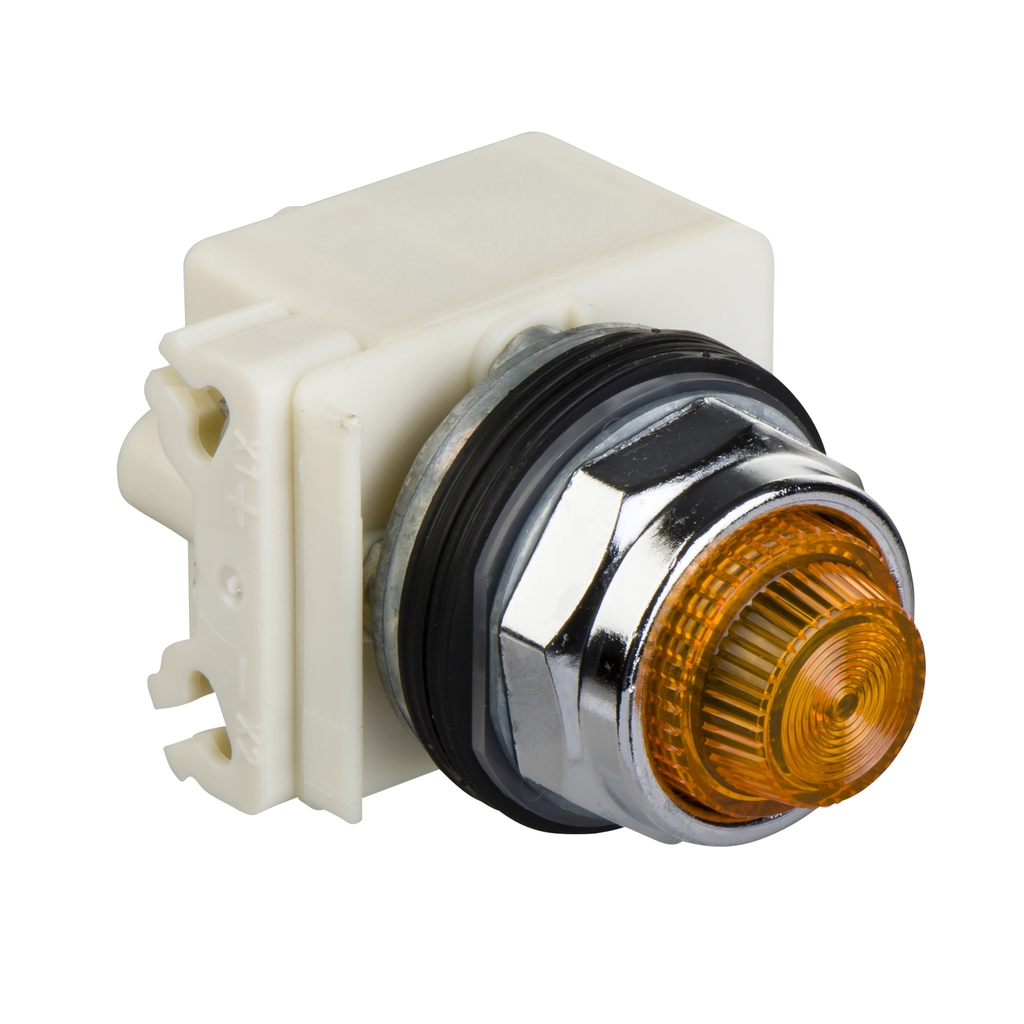

This Harmony 9001K, push-to-test metal pilot light, with a yellow LED, is supplied with 110-120V. It has a chromium-plated metal bezel and a polycarbonate yellow Fresnel lens. This yellow push-to-test pilot light provides an ergonomic and visual interfac

• Connections Terminals
• screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
• Overvoltage Category
• class II conforming to IEC 61140
• Light Block Supply
• via integral transformer 110...120 V AC 50/60 Hz 6 V)
• via integral transformer 110...120 V A
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1LYY31_CAD&p_File_name=9001KT1LYY31_3D.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=9001KT1LYY31_CAD&p_File_name=9001KT1LYY31_2D Front View.dwg
• https://download.schneider-el
• Light Source
• Yellow LED
• IP Degree Of Protection
• IP66 IEC 60529
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Nema Degree Of Protection
• NEMA 1
• NEMA 12
• NEMA 13
• NEMA 2
• NEMA 3
• NEMA 3R
• NEMA 4
• NEMA 6
• UI Rated Insulation Voltage
• 250 V 2)IEC 60947-1
• Vibration Resistance
• 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Tightening Torque
• 0.8-0.8 N.m IEC 60947-1
• Short Circuit Protection
• 10 A cartridge fuse IEC 60947-5-1
• Lens Type
• fresnel plastic
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 50 gn IEC 60068-2-27
• UIMP Rated Impulse Withstand Voltage
• 2.5 kV IEC 60947-1

• Physical Attributes
• Cad Overall Depth : 42 mm
• Cad Overall Height : 70 mm
• Cad Overall Width : 54 mm
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : Outside of Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2503027EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 7
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Return Indicator : N
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : metal
• Bulb Base : BA 9s
• Compatibility Code : 9001K
• Device Short Name : 9001K
• Lens Material : polycarbonate
• Mounting Diameter : 30 mm
• Package Weight Lbs : 181.437 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : push-to-test pilot light
• Range Of Product : Harmony 9001K
• Returnability : No
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• ITH Conventional Free Air Thermal Current : 10 A
• Pep Code : ENVPEP2503027EN
• General Attributes
• Product Or Component Type : push-to-test pilot light
• Range Of Product : Harmony 9001K
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=483323&lang=en-us
• Take Back : No
• China ROHS Regulation : X
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2503027EN
• Environmental Disclosure : ENVPEP2503027EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2503027EN
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico
