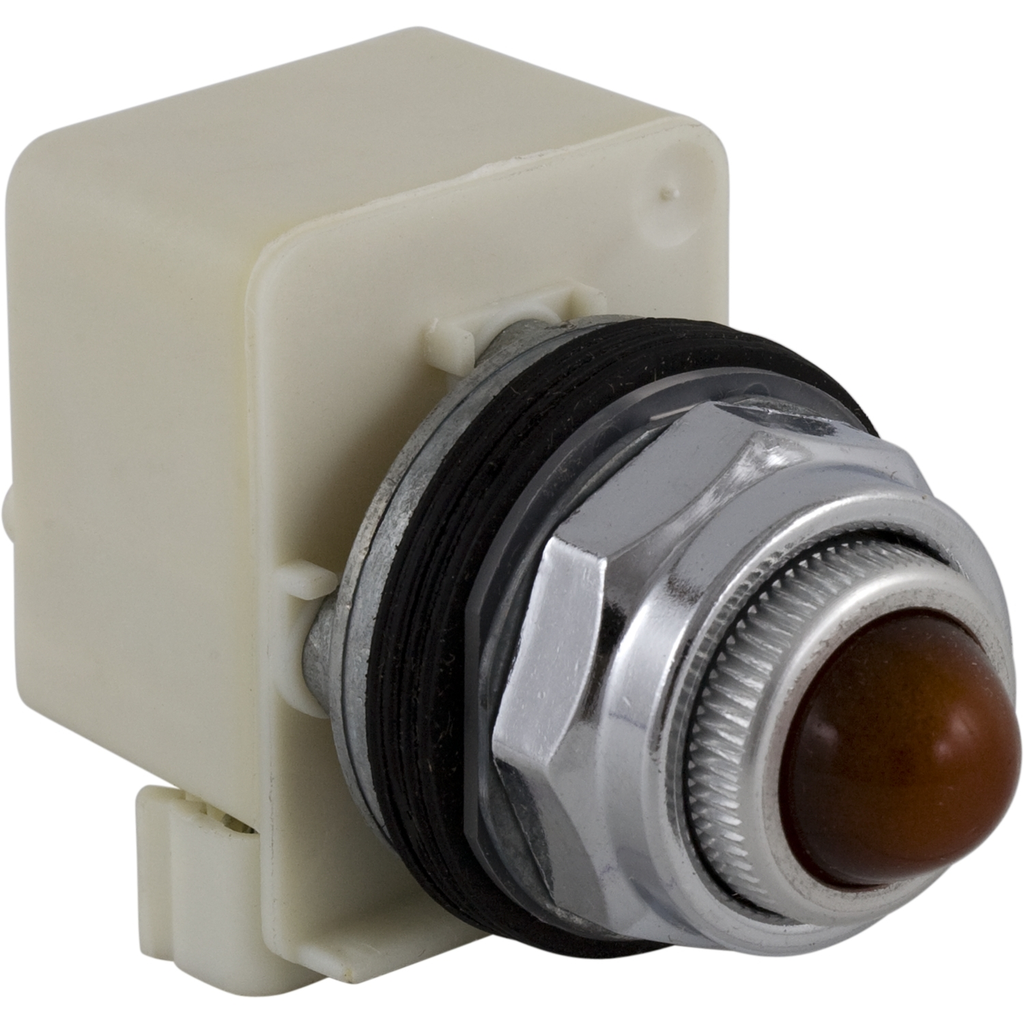

Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, domed, amber, 30mm, LED yellow, 120V

PILOT LIGHT 120VAC 30MM TYPE K

SQD9001KT38LYA9 9001KT38LYA9 785901175766
227.76 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, domed, amber, 30mm, LED yellow, 120V-1
  • Bezel Material: Metal
  • Lens Material: Polycarbonate
  • Light Source: LED, Yellow LED
  • Operating Position: Any Position
  • Warranty Length: 18 mth
The Harmony 9001K product is a metal amber pilot light with a yellow LED, designed for push-to-test functionality. It is supplied with 120V. It has a double-insulated plastic bezel, an amber-domed plastic lens, and a yellow LED. This amber push-to-test pilot light provides an ergonomic and visual interface for your machines. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. It is distinguishable visually at a distance thanks to its illuminated head and clear color. It complies with UL 508 and NEMA certifications, and many international standards, such as EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, and EN/IEC 60947-5-4. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
QTY
  • Product Description
  • Features
  • Specifications
The Harmony 9001K product is a metal amber pilot light with a yellow LED, designed for push-to-test functionality. It is supplied with 120V. It has a double-insulated plastic bezel, an amber-domed plastic lens, and a yellow LED. This amber push-to-test pilot light provides an ergonomic and visual interface for your machines. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its NEMA 1/2/3/3R/4/6/12/13 ratings. It is distinguishable visually at a distance thanks to its illuminated head and clear color. It complies with UL 508 and NEMA certifications, and many international standards, such as EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, and EN/IEC 60947-5-4. Harmony 9001K is a range of heavy-duty chromium-plated metal pushbuttons, selector switches, pilot lights, and specialty operators.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LYA9_CAD&p_File_name=9001KT38LYA9_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LYA9_CAD&p_File_name=9001KT38LYA9_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LYA9_CAD&p_File_name=9001KT38LYA9_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LYA9_CAD&p_File_name=9001KT38LYA9_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KT38LYA9_CAD&p_File_name=9001KT38LYA9_2D Right Side View.dxf
  • Physical Attributes
    • Cad Overall Depth : 42 mm
    • Cad Overall Height : 70 mm
    • Cad Overall Width : 54 mm
    • Size : 30 mm
    • Cap Operator Or Lens Color : amber
    • Light Source Color : yellow
  • Conformance Attributes
    • Product Certifications : UL 508, NEMA
    • Standards : UL 508, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1
  • Complementary Attributes
    • Ui Rated Insulation Voltage : 250 V 2)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
    • Us Rated Supply Voltage : 120 V
  • Important Information Attributes
    • Lens Type : domed, domed plastic
    • Light Source : LED, Yellow LED
    • Medium Desc : Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, domed, amber, 30mm, LED yellow, 120V
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : In
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Compatibility Code : 9001K
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : 9001K
    • Lens Material : polycarbonate
    • Light Block Supply : direct 120 V AC/DC
    • Mounting Diameter : 30 mm
    • Operating Mode : push-to-test
    • Operating Position : any position
    • Overvoltage Category : class II conforming to IEC 61140
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-to-test pilot light
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Screw Head : cross slotted
    • Shape Of Signaling Unit Head : round
    • Shock Resistance : 50 gn IEC 60068-2-27
    • Short Circuit Protection : 10 A cartridge fuse IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-0.8 N.m IEC 60947-1
    • Vibration Resistance : 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Cap Operator Or Lens Color : amber
    • Light Source Color : yellow
    • Connections Terminals : screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Ith Conventional Free Air Thermal Current : 10 A
    • Pep Code : ENVPEP2503027EN
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66 IEC 60529, IP65/IP66
    • Nema Degree Of Protection : NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -25-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : push-to-test pilot light
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC000272
    • ETIM 9 : EC000272
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
