SQUARE D

PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS

PILOT LIGHT 120VAC 30MM TYPE K +OPTIONS

SQD9001KP1C31 9001KP1C31 785901032045
153.00 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: CE, CSA LR25490 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Country of Origin: Mexico
  • Lens Type: Fresnel Plastic
  • Warranty Length: 18 mth

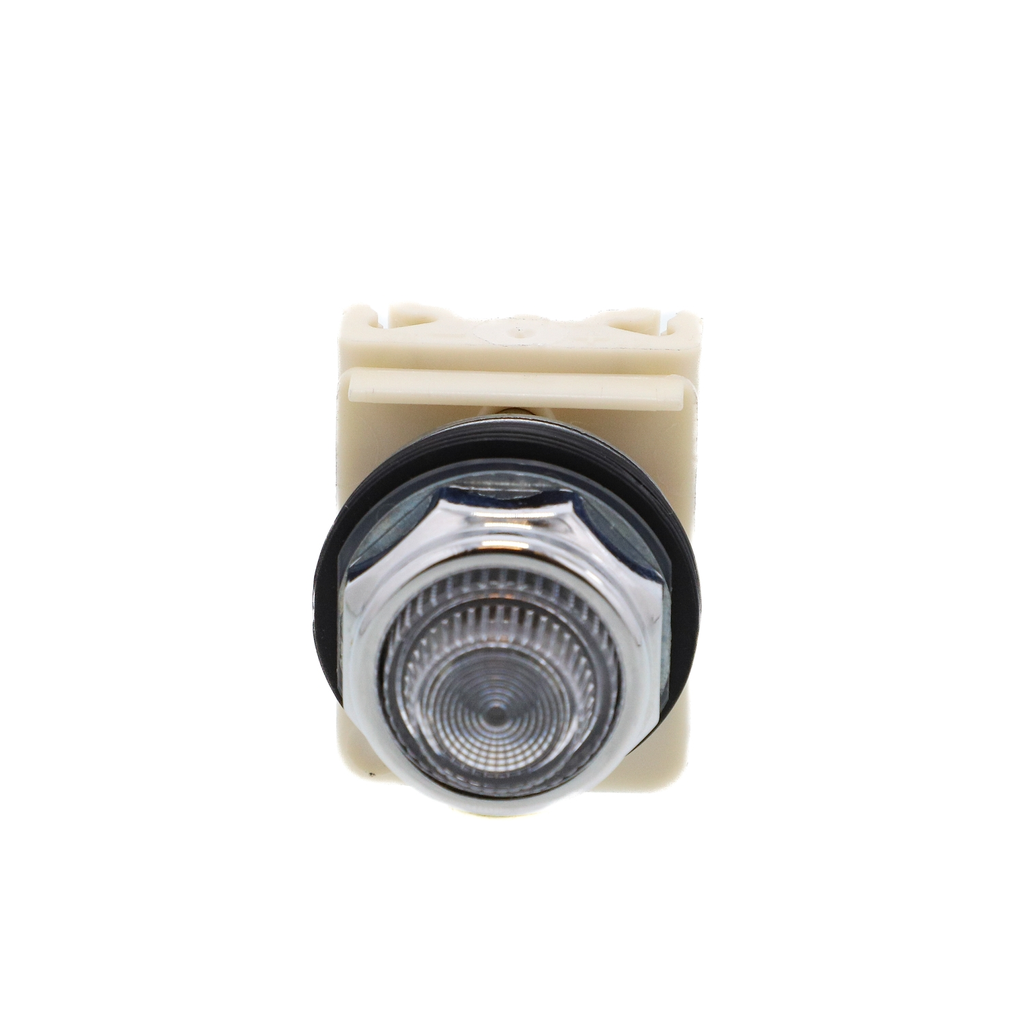

This Harmony 9001K, clear pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001K, clear pilot light with transformer and plastic fresnel is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Main
    • Range Of Product : Harmony 9001K
    • Device Short Name : K
    • Product Or Component Type : Pilot light
  • Complementary
    • Shape Of Screw Head : Round
    • [Us] Rated Supply Voltage : 110...120 V AC
    • Bulb Base : BA 9s
    • Device Presentation : Complete product
    • Operating Position : Any position
    • Mounting Diameter : 1.18 in (30 mm)
    • Lens Type : Fresnel plastic
    • Cap/Operator Or Lens Colour : Clear
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Bezel Material : Chromium plated metal
    • Light Block Supply : Via transformer 120 V AC 50/60 Hz || Via integral transformer 110 V AC 50/60 Hz
    • Light Source : incandescent
    • Operating Mode : Normal
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Discount Schedule : CS1
    • Returnability : No
    • Category : 21426 - 9001 K (NOT KA,KM,KX)
    • GTIN : 00785901032045
    • Country Of Origin : MX
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Green Premium Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
  • Environment
    • Product Certifications : CE || UL listed file E42259 CCN NKCR || CSA LR25490 class 3211 03
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
