SQUARE D

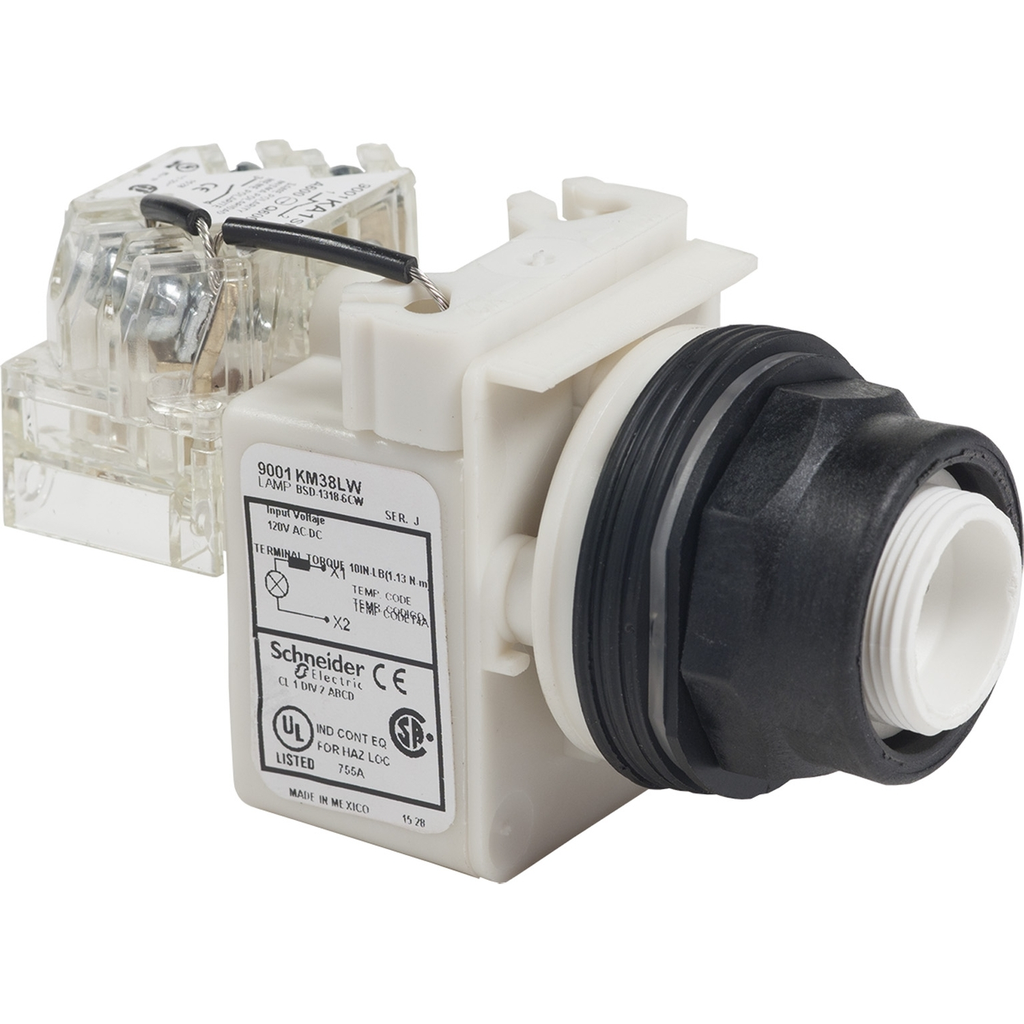

PILOT LIGHT 120VAC 30MM SK +OPTIONS

PILOT LIGHT 120VAC 30MM SK +OPTIONS

SQD9001SKT1LRR31 9001SKT1LRR31 785901580805
206.39 / EACH
  • Bezel Material: Plastic
  • Certifications: NEMA, UL 508
  • Country of Origin: Mexico
  • Lens Type: Fresnel Plastic
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Warranty Length: 18 mth
  • Weight: 0.181 kg, 0.40 lb
  • Color: Red
This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections Tha package dimensions are 6.35 cm (width) x 40.96 cm (length) x 16.13 cm (height) High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
  • Product Description
  • Specifications
This illuminated red push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections Tha package dimensions are 6.35 cm (width) x 40.96 cm (length) x 16.13 cm (height) High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
  • Environment
    • Nema Degree Of Protection : NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
    • Ambient Air Temp For Storage : -40…158 °F (-40…70 °C)
    • Standards : EN/IEC 60947-5-1 || JIS C 852 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
    • Product Certifications : NEMA || UL 508
    • Electrical Shock Protect Class : Class II IEC 61140
    • Ambient Air Temp For Op : -13…158 °F (-25…70 °C)
    • Vibration Resistance : 7 gn 2…500 Hz)IEC 60068-2-6
    • Protective Treatment : TC
    • Shock Resistance : 50 gn IEC 60068-2-27
    • IP Degree Of Protection : IP66 IEC 60529
  • Complementary
    • Short-Circuit Protection : 10 A cartridge fuse EN/IEC 60947-5-1
    • Cap/Operator Or Lens Colour : Red
    • Cad Overall Depth : 1.65 in (42 mm)
    • Bezel Material : Plastic
    • Ith Cnvtl Free Air Therm Crrt : 10 A
    • [Us] Rated Supply Voltage : 110...120 V AC 50/60 Hz
    • Ui Rated Insulation Voltage : 250 V 2)EN/IEC 60947-1
    • Shape Of Signaling Unit Head : Round
    • Mounting Diameter : 1.18 in (30 mm)
    • Cad Overall Width : 2.13 in (54 mm)
    • Operating Position : Any position
    • Bulb Base : BA 9s
    • Light Source : Red LED
    • Tightening Torque : 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
    • Operating Mode : Push-to-test
    • Shape Of Screw Head : Cross slotted
    • Product Weight : 0.40 lb(US) (0.181 kg)
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
    • Uimp Rated Imp Wstd Voltage : 2.5 kV EN/IEC 60947-1
    • Cad Overall Height : 2.76 in (70 mm)
  • Ordering And Shipping Details
    • Returnability : Yes
    • Country Of Origin : MX
    • Discount Schedule : CS1
    • GTIN : 00785901580805
    • Category : 21429 - 9001 SK,SKY
  • Main
    • Light Block Supply : Direct 110...120 V AC 50/60 Hz
    • Range Of Product : Harmony 9001SK
    • Lens Type : Fresnel plastic
    • Device Short Name : 9001SK
    • Product Or Component Type : Pilot light
  • Offer Sustainability
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Green Premium Status : Green Premium product
    • REACh Free Of SVHC : Yes
  • Contractual Warranty
    • Warranty : 18 months
