SQUARE D

PILOT LIGHT 120V 30MM TYPE K +OPTIONS

PILOT LIGHT 120V 30MM TYPE K +

SQD9001KP38LYY9 9001KP38LYY9 785901849537
143.97 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: CE, CSA LR25490 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Country of Origin: Mexico
  • Lens Type: Domed Plastic
  • Warranty Length: 18 mth

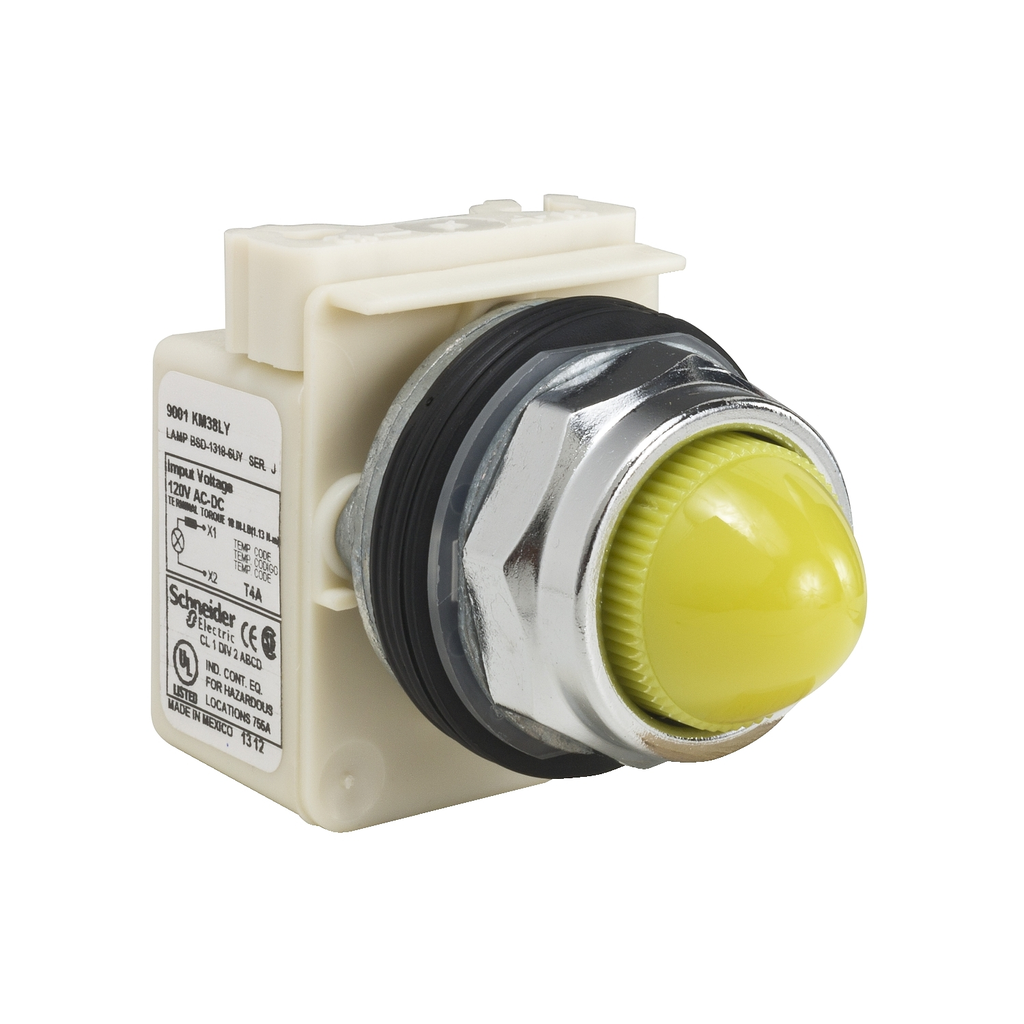

This Harmony 9001K, yellow pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Product Description
  • Specifications
This Harmony 9001K, yellow pilot light with integral LED and plastic dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
  • Complementary
    • Shape Of Screw Head : Round
    • Operating Mode : Normal
    • Bulb Base : BA 9s
    • Lens Type : Domed plastic
    • Mounting Diameter : 1.18 in (30 mm)
    • Light Block Supply : Direct 120 V
    • [Us] Rated Supply Voltage : 120 V AC/DC
    • Operating Position : Any position
    • Light Source : Yellow LED
    • Cap/Operator Or Lens Colour : Yellow
    • Device Presentation : Complete product
    • Connections - Terminals : Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
    • Bezel Material : Chromium plated metal
  • Environment
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
    • Product Certifications : CSA LR25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR
  • Main
    • Device Short Name : K
    • Product Or Component Type : Pilot light
    • Range Of Product : Harmony 9001K
  • Contractual Warranty
    • Warranty : 18 months
  • Ordering And Shipping Details
    • Category : 21426 - 9001 K (NOT KA,KM,KX)
    • GTIN : 00785901849537
    • Discount Schedule : CS1
    • Returnability : No
    • Country Of Origin : MX
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
