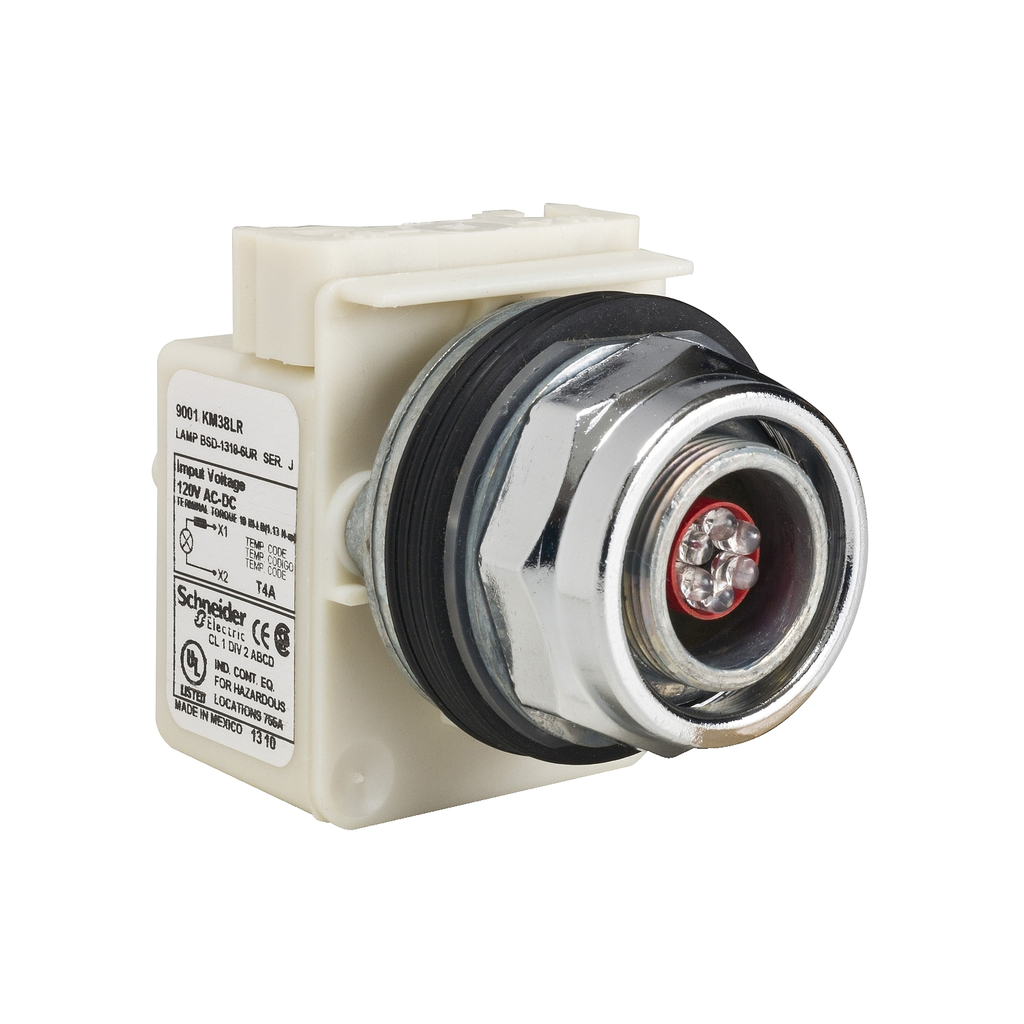

Head for pilot light, Harmony 9001K, metal, without cap, 30mm, LED red, 120V

PILOT LIGHT 120V 30MM TYPE K +

SQD9001KP38LR 9001KP38LR 785901033028
149.62 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Head for pilot light, Harmony 9001K, metal, without cap, 30mm, LED red, 120V-1
  • Bezel Material: Metal
  • Certifications: CE, CSA LR25490 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Warranty Length: 18 mth
This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral red LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections It weights 0.14 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
QTY
  • Product Description
  • Specifications
This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral red LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections It weights 0.14 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
  • Environment
    • Product Certifications : CSA LR25490 class 3211 03 || CE || UL listed file E42259 CCN NKCR
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : N/A
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121006EN
    • Sustainable Offer Status : Green Premium product
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 120 V
    • Light Source : Red LED
    • Bezel Material : metal
    • Light Source Colour : red
    • Light Source : LED
    • Light Block Supply : direct 120 V
    • Mounting Diameter : 30 mm
    • Operating Mode : normal
    • Cap/Operator Or Lens Colour : without cap
    • Shape Of Screw Head : round
    • Size : 30 mm
    • Bulb Base : BA 9s
  • Specifications
    • Range Of Product : Harmony 9001K
    • Product Or Component Type : head for pilot light
    • Device Short Name : K
