SQUARE D

PILOT LIGHT 120V 30MM TYPE K +OPTIONS

PILOT LIGHT 120V 30MM TYPE K +

SQD9001KP38LG 9001KP38LG 785901033011
134.56 / EACH
  • Bezel Material: Chromium Plated Metal
  • Certifications: CE, CSA LR25490 Class 3211 03, UL Listed File E42259 CCN NKCR
  • Country of Origin: Mexico
  • Warranty Length: 18 mth

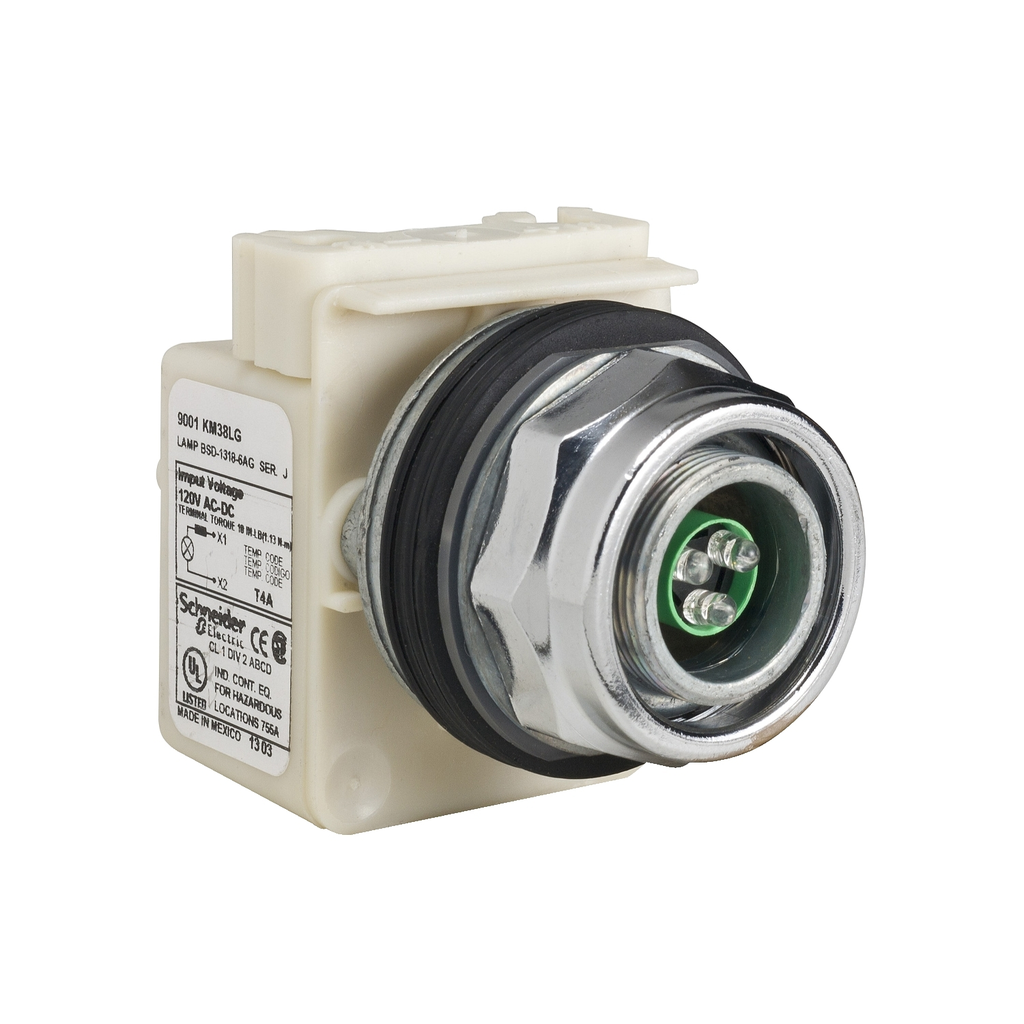

This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral green LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections It weights 0.21 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
  • Product Description
  • Specifications
This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral green LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections It weights 0.21 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
  • Main
    • Product Or Component Type : Pilot light
    • Device Short Name : K
    • Range Of Product : Harmony 9001K
  • Contractual Warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Green Premium Status : Green Premium product
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • EU RoHs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Ordering And Shipping Details
    • Country Of Origin : MX
    • Category : 21426 - 9001 K (NOT KA,KM,KX)
    • Returnability : Yes
    • GTIN : 00785901033011
    • Discount Schedule : CS1
  • Environment
    • Product Certifications : CSA LR25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE
    • Nema Degree Of Protection : NEMA 1/2/3/3R/4/6/12/13
  • Complementary
    • Mounting Diameter : 1.18 in (30 mm)
    • Operating Mode : Normal
    • Light Source : Green LED
    • Light Block Supply : Direct 120 V
    • Shape Of Screw Head : Round
    • Bezel Material : Chromium plated metal
