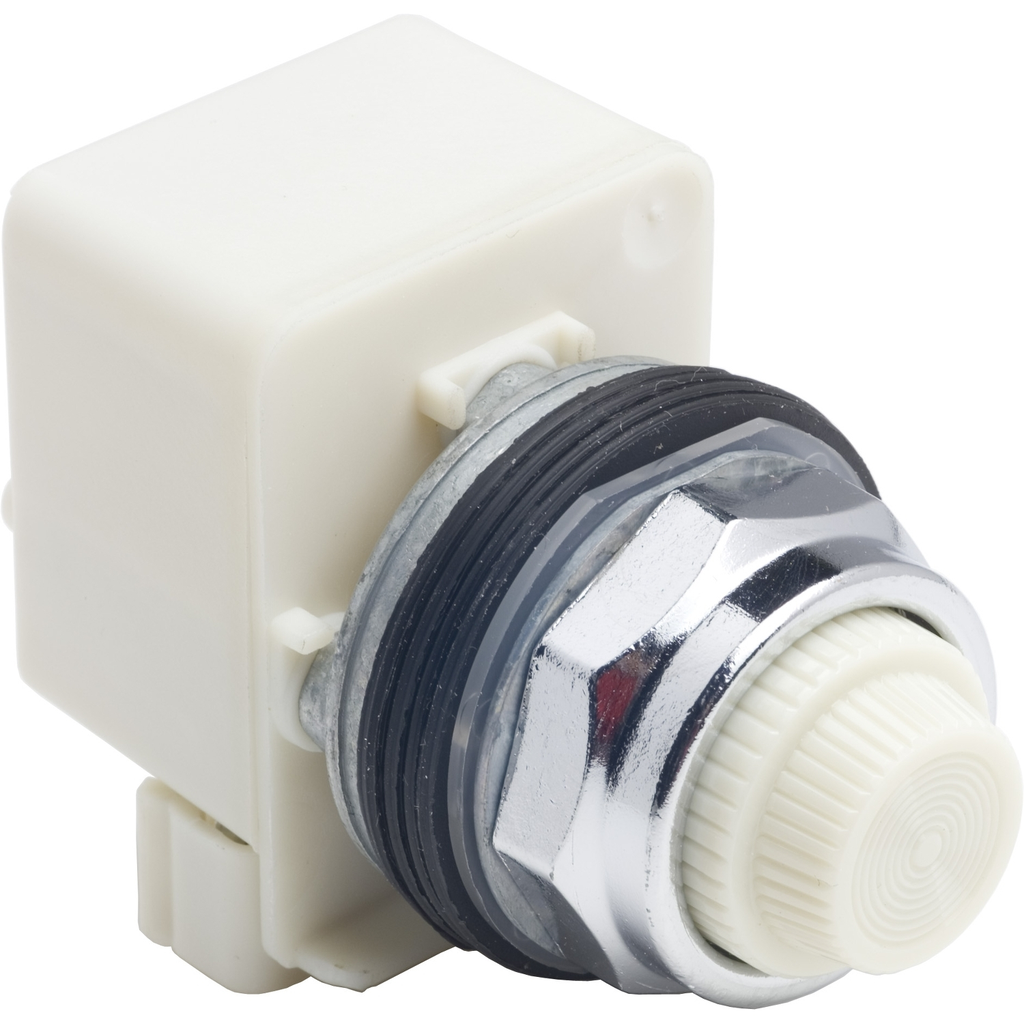

Pilot light, Harmony 9001K, metal, polycarbonate, fresnel, white, 30mm, LED white, 120V

PILOT LIGHT 120V 30MM TYPE K

SQD9001KP38LWW31 9001KP38LWW31 785901696469
183.40 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Pilot light, Harmony 9001K, metal, polycarbonate, fresnel, white, 30mm, LED white, 120V-1
  • Bezel Material: Metal
  • Lens Material: Polycarbonate
  • Light Source: LED, White LED
  • Warranty Length: 18 mth
This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
QTY
  • Product Description
  • Features
  • Specifications
This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38LWW31_CAD&p_File_name=9001KP38LWW31_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38LWW31_CAD&p_File_name=9001KP38LWW31_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38LWW31_CAD&p_File_name=9001KP38LWW31_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38LWW31_CAD&p_File_name=9001KP38LWW31_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001KP38LWW31_CAD&p_File_name=9001KP38LWW31_2D Right Side View.dxf
  • Physical Attributes
    • Size : 30 mm
    • Cap Operator Or Lens Color : white
    • Light Source Color : white
  • Conformance Attributes
    • Product Certifications : CSA LR25490 class 3211 03, CE, UL listed file E42259 CCN NKCR
  • Complementary Attributes
    • Us Rated Supply Voltage : 120 V
  • Important Information Attributes
    • Lens Type : fresnel, fresnel plastic
    • Light Source : LED, White LED
    • Medium Desc : Pilot light, Harmony 9001K, metal, polycarbonate, fresnel, white, 30mm, LED white, 120V
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : N
    • Stocking Flag : Y
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Bezel Material : metal
    • Bulb Base : BA 9s
    • Device Short Name : K
    • Lens Material : polycarbonate
    • Light Block Supply : full voltage 120 V
    • Mounting Diameter : 30 mm
    • Operating Mode : normal
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001K
    • Returnability : No
    • Shape Of Screw Head : round
    • Sustainable Packaging : Yes
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Cap Operator Or Lens Color : white
    • Light Source Color : white
    • Pep Code : ENVPEP2503027EN
  • Environment Attributes Main
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant By Exemption
    • Nema Degree Of Protection : NEMA 3R/6/13
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : pilot light
    • Range Of Product : Harmony 9001K
  • ETIM
    • ETIM 8 : EC000272
    • ETIM 9 : EC000272
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
