SQUARE D

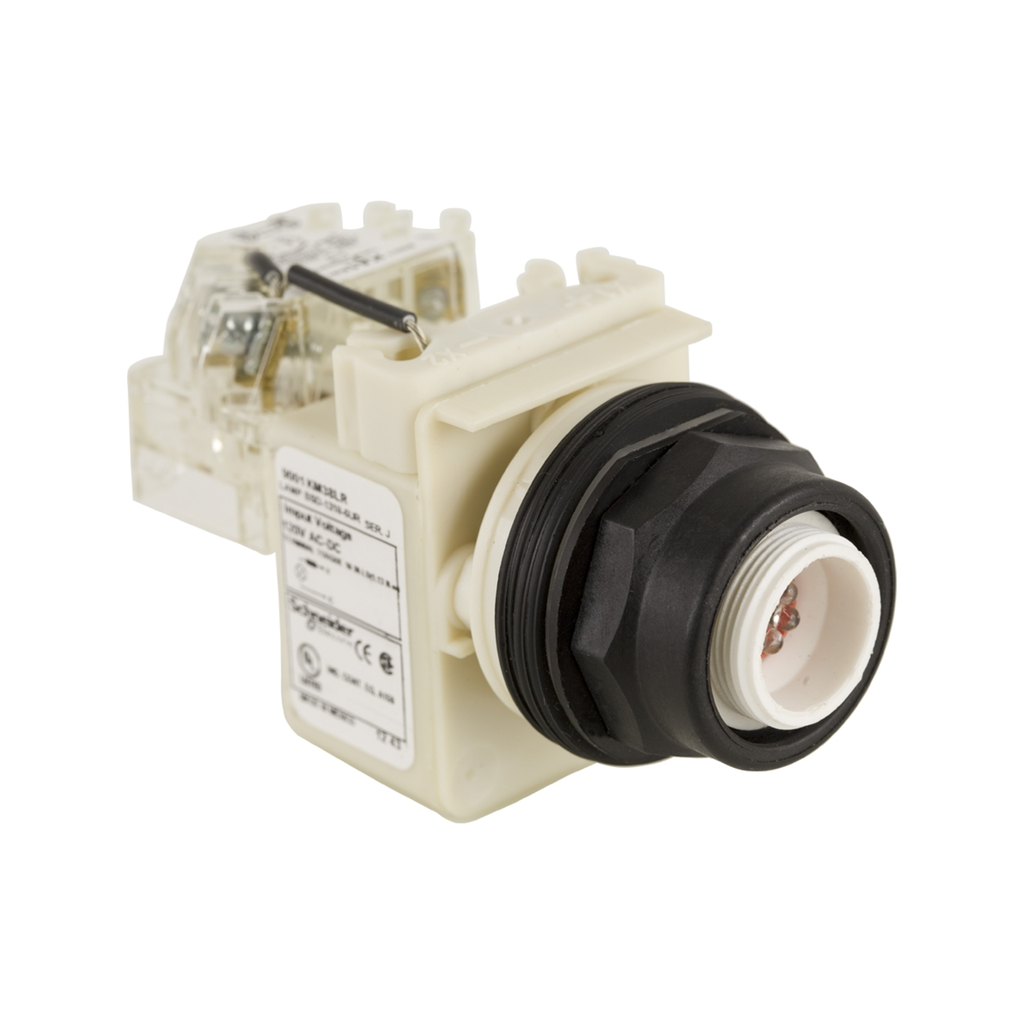

Push-to-test pilot light head, Harmony 9001SK, plastic, without cap, 30mm, LED red, 120V

PILOT LIGHT 120V 30MM SK +OPTI

SQD9001SKT38LR 9001SKT38LR 785901398790
228.05 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Push-to-test pilot light head, Harmony 9001SK, plastic, without cap, 30mm, LED red, 120V-1
  • Bezel Material: Plastic
  • Light Source: LED, Red LED
  • Warranty Length: 18 mth
This illuminated push-to-test pilot light with red integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
QTY
  • Product Description
  • Features
  • Specifications
This illuminated push-to-test pilot light with red integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=9001SKT38LR_CAD&p_File_name=9001SKT38LR_3D.stp, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKT38LR_CAD&p_File_name=9001SKT38LR_2D Front View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKT38LR_CAD&p_File_name=9001SKT38LR_2D Front View.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKT38LR_CAD&p_File_name=9001SKT38LR_2D Right Side View.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=9001SKT38LR_CAD&p_File_name=9001SKT38LR_2D Right Side View.dxf
  • Physical Attributes
    • Size : 30 mm
    • Cap Operator Or Lens Color : without cap
    • Light Source Color : red
  • Complementary Attributes
    • Us Rated Supply Voltage : 120 V
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Light Source : LED, Red LED
    • Medium Desc : Push-to-test pilot light head, Harmony 9001SK, plastic, without cap, 30mm, LED red, 120V
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Legacy Weee Scope : In
    • Scope Perimeter : Outside of Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2503027EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Bezel Material : plastic
    • Bulb Base : BA 9s
    • Contacts Type And Composition : 1 C/O
    • Light Block Supply : full voltage 120 V
    • Mounting Diameter : 30 mm
    • Operating Mode : push-to-test
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : head for push-to-test pilot light
    • Protective Treatment : TC
    • Range Of Product : Harmony 9001SK
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Sustainable Packaging : Yes
    • Cap Operator Or Lens Color : without cap
    • Light Source Color : red
    • Pep Code : ENVPEP2503027EN
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66, IP65/IP66
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI2503027EN
    • Environmental Disclosure : ENVPEP2503027EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2503027EN
  • General Attributes
    • Product Or Component Type : head for push-to-test pilot light
    • Range Of Product : Harmony 9001SK
  • ETIM
    • ETIM 8 : EC000272
    • ETIM 9 : EC000272
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
