Push-to-test pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel lens, yellow, 30mm, LED yellow, 120V

PILOT LIGHT 120V 30MM SK +OPTI

SQD9001SKT38LYY31 9001SKT38LYY31 785901044529
211.55 / EACH
http://schema.org/OutOfStock

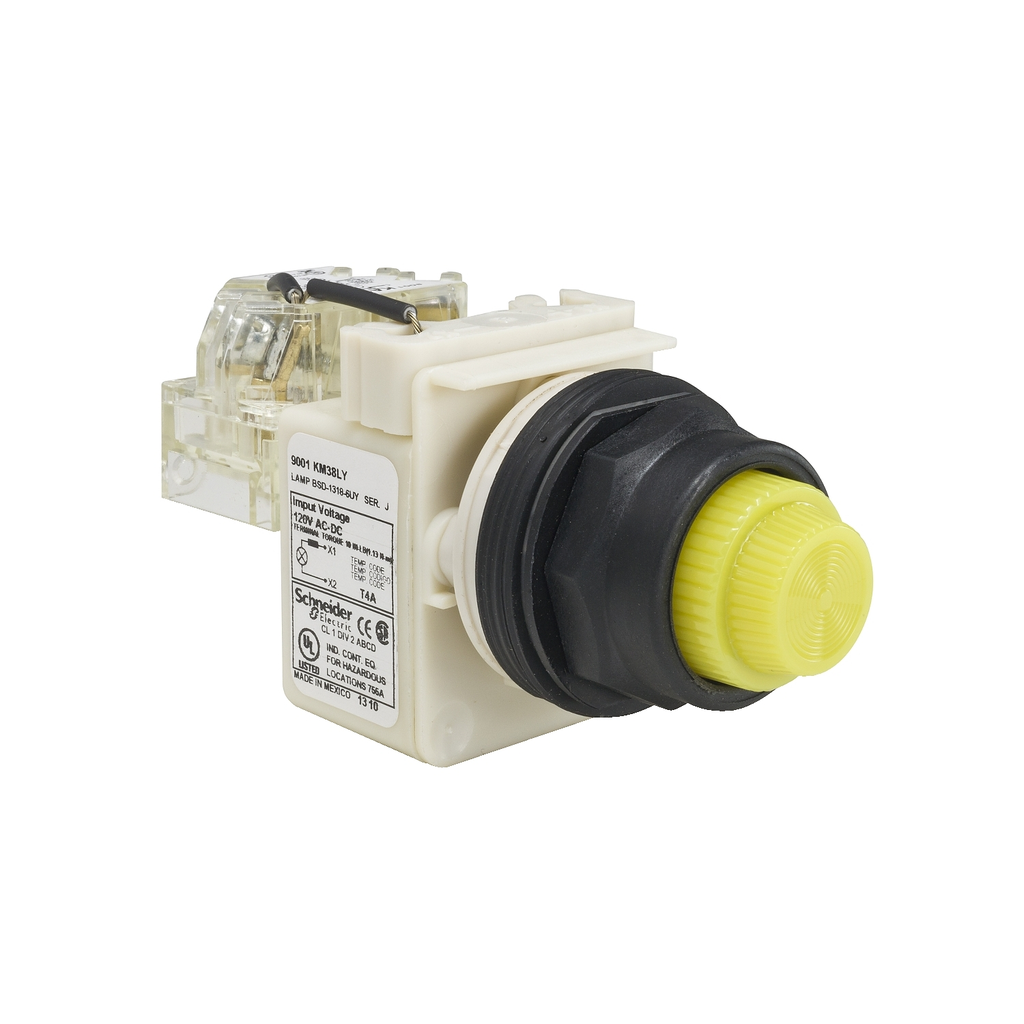

Mayer-DDS-Push-to-test pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel lens, yellow, 30mm, LED yellow, 120V-1
  • Bezel Material: Plastic
  • Lens Type: Fresnel, Fresnel Plastic
  • Warranty Length: 18 mth
This illuminated yellow push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
QTY
  • Product Description
  • Specifications
This illuminated yellow push-to-test pilot light with integral LED provides an ergonomic and visual interface for your machines It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
  • Environment
    • Protective Treatment : TC
    • Ip Degree Of Protection : IP66
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI121109EN
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121113EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Complementary
    • [Us] Rated Supply Voltage : 120 V
    • Contacts Type And Composition : 1 C/O
    • Light Source : Yellow LED
    • Bezel Material : plastic
    • Lens Material : polycarbonate
    • Light Source Colour : yellow
    • Light Source : LED
    • Mounting Diameter : 30 mm
    • Operating Mode : push-to-test
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : yellow
    • Size : 30 mm
    • Bulb Base : BA 9s
    • Lens Type : fresnel
  • Specifications
    • Range Of Product : Harmony 9001SK
    • Light Block Supply : full voltage 120 V
    • Product Or Component Type : push-to-test pilot light
    • Lens Type : fresnel plastic
